HEATED OXYGEN SENSOR (for Sensor 2): Components

Fig 1: Heated Oxygen Sensor (For Sensor 2) Replacement Components With Torque Specifications (1 Of 2)
G05289253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

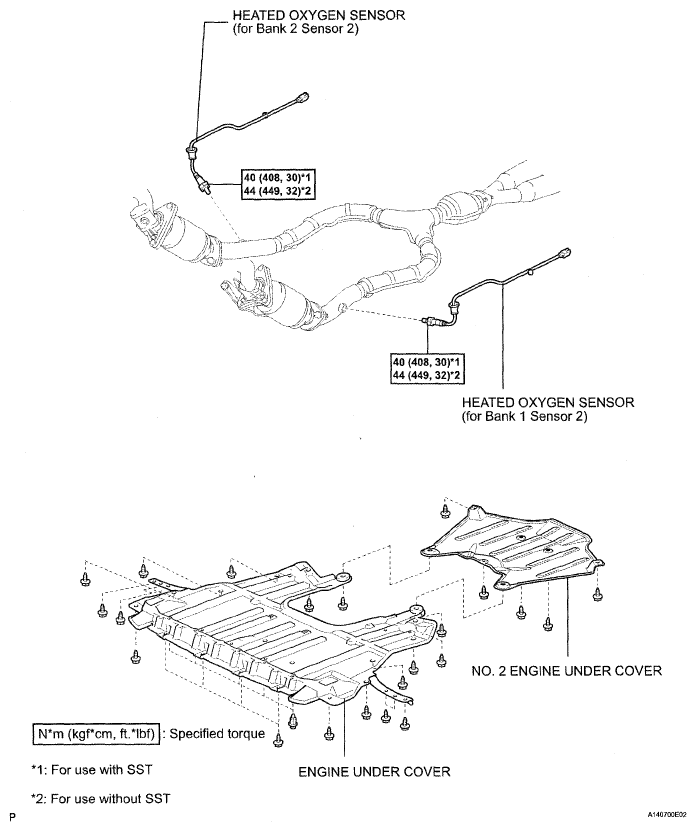

Fig 2: Heated Oxygen Sensor (For Sensor 2) Replacement Components With Torque Specifications (2 Of 2)
G05289254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
