Monitor Result

Refer to CHECKING MONITOR STATUS (see CHECKING MONITOR STATUS ).

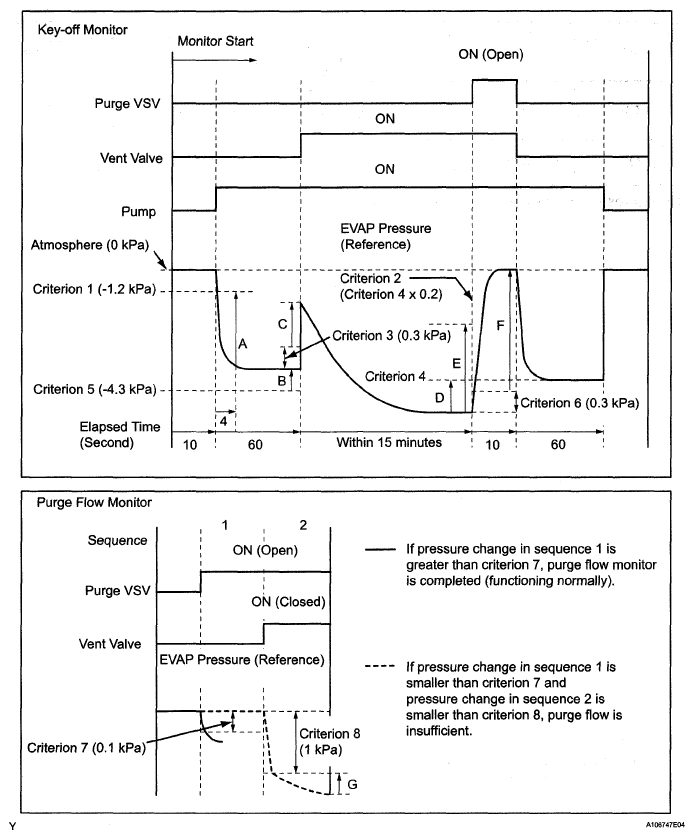

Fig 1: Monitoring Purge Flow
G05190602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
