Park / Neutral Position Switch: Components

Fig 1: Identifying Park / Neutral Position Switch Replacement Components With Torque Specification (1 Of 2)
G05839155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

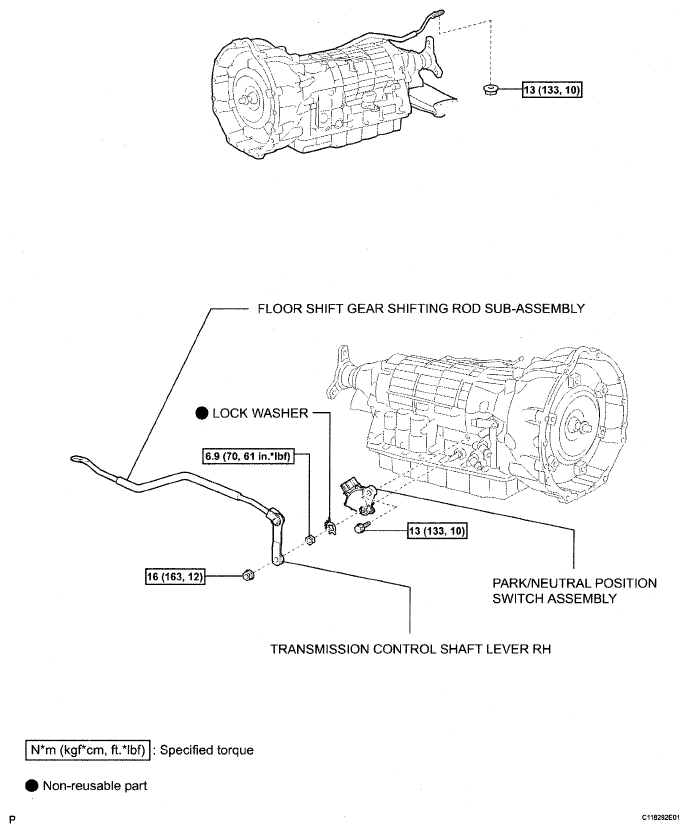

Fig 2: Identifying Park / Neutral Position Switch Replacement Components With Torque Specification (2 Of 2)
G05289681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
