Driver Side Door Entry Lock And Unlock Functions Do Not Operate: Wiring Diagram

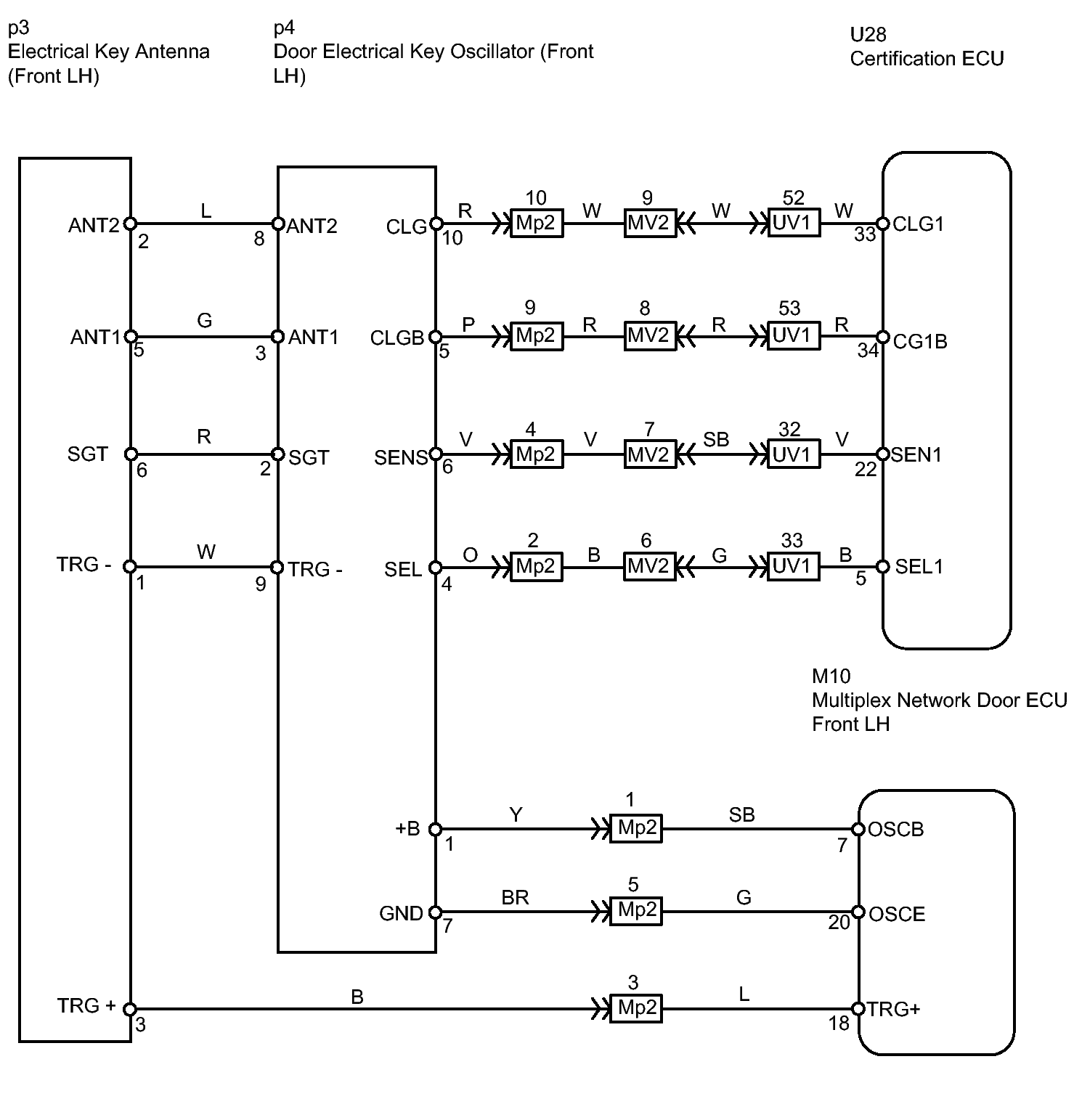

Fig 1: Multiplex Network Door ECU, Certification ECU & Door Electrical Key Oscillator (Front LH) - Wiring Diagram
GTY100270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
