Engine Coolant Temperature Sensor: Components: Illustration

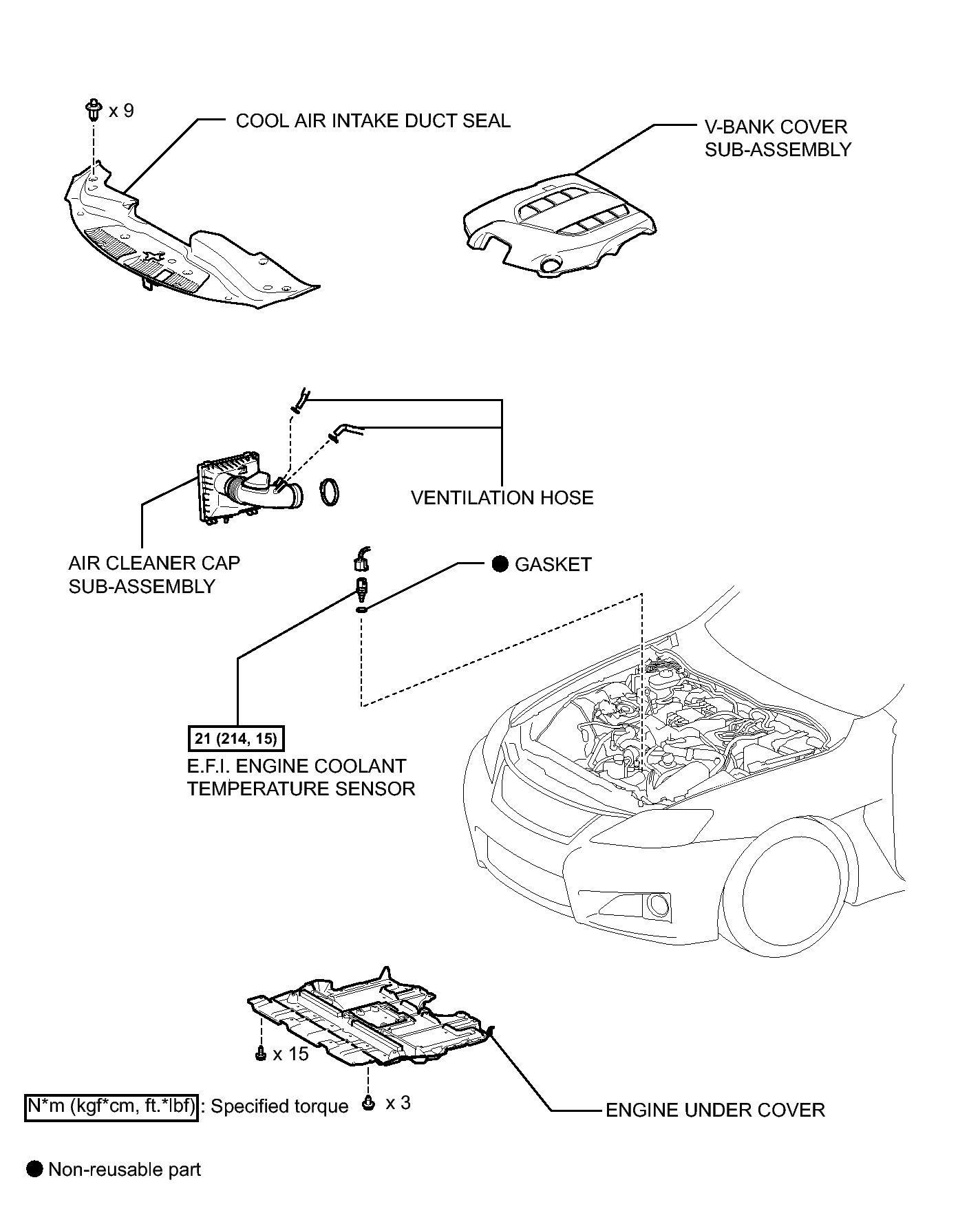

Fig 1: Identifying Engine Coolant Temperature Sensor Replacement Components With Torque Specifications
GTY149059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
