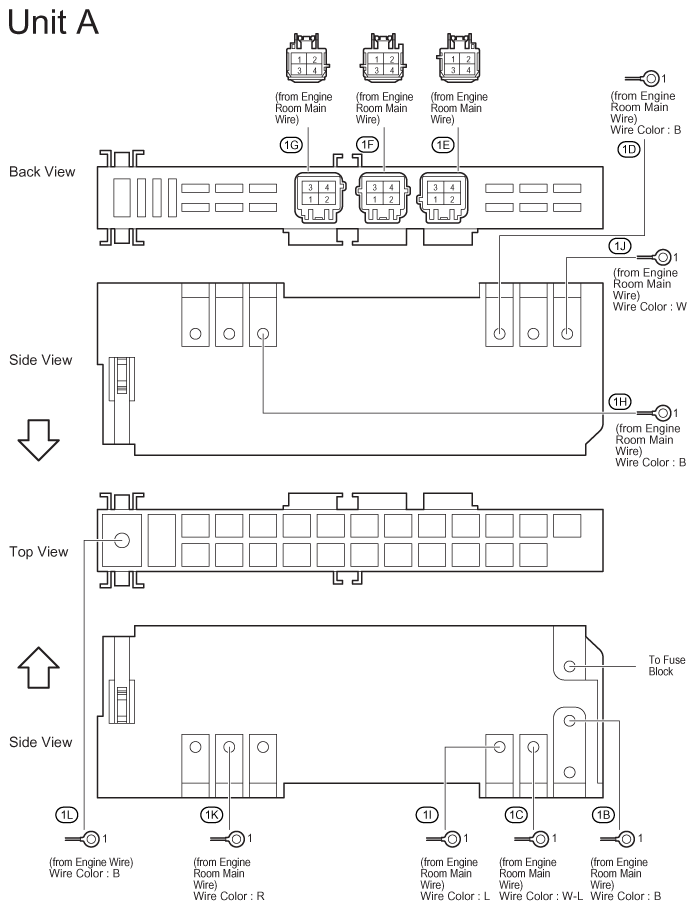

Engine Room Relay Block No.1 Assembly And Engine Room Junction Block No.1 Assembly
WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

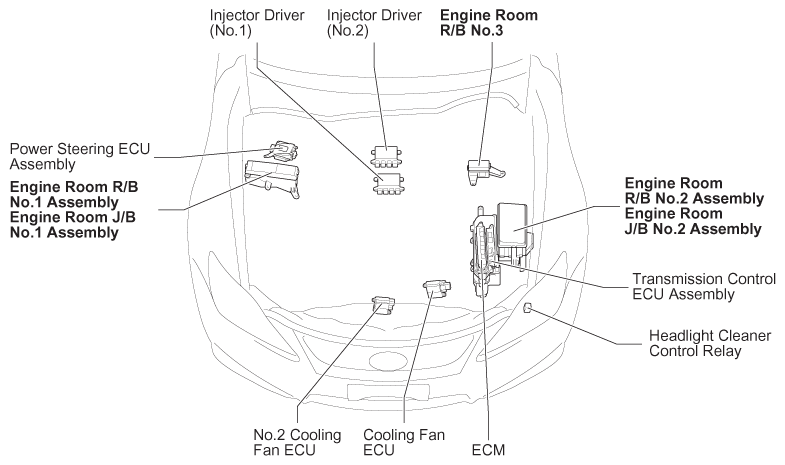

Right Engine Compartment (See Figure)

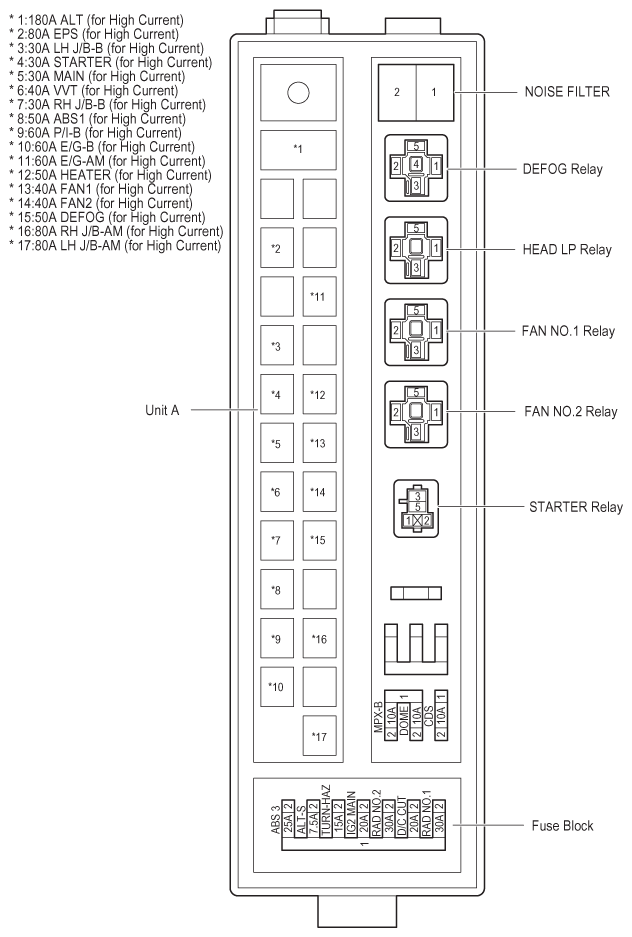

ENGINE ROOM R/B AND J/B NO.1 RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Defog Relay |
| Head LP Relay |
| Fan No.1 Relay |
| Fan No.2 Relay |
| Starter Relay |
ENGINE ROOM R/B AND J/B NO.1 FUSE IDENTIFICATION
| Fuse | System | |
|---|---|---|
| 7.5A | ALT-S | Charging |
| 10A | DOME | Adaptive Front-Lighting System |
| Audio System, LEXUS Navigation System and Parking Assist (Rear View Monitor) | ||
| Charging | ||
| Combination Meter | ||
| Cruise Control | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control | ||
| Engine Control, Electronically Controlled Transmission and A/T Indicator | ||
| EPS | ||
| Front Fog Light | ||
| Front Wiper and Washer | ||
| Garage Door Opener | ||
| Headlight | ||
| Illumination | ||
| Interior Light | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Pre-Collision System | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start and Theft Deterrent | ||
| SRS | ||
| Taillight | ||
| Tire Pressure Warning System | ||
| Vehicle Dynamics Integrated Management | ||
| 10A | MPX-B | Adaptive Front-Lighting System |
| Audio System, LEXUS Navigation System and Parking Assist (Rear View Monitor) | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Back-Up Light | ||
| Charging | ||
| Clock | ||
| Combination Meter | ||
| Cruise Control | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control | ||
| Engine Control, Electronically Controlled Transmission and A/T Indicator | ||
| EPS | ||
| Front Fog Light | ||
| Front Wiper and Washer | ||
| Headlight | ||
| Headlight Cleaner | ||
| Horn | ||
| Illumination | ||
| Interior Light | ||
| Luggage Compartment Door Opener | ||
| Multiplex Communication System (AVC-LAN) | ||
| Multiplex Communication System (BEAN) | ||
| Multiplex Communication System (CAN) | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Seat (Driver's Seat) | ||
| Power Seat (Front Passenger's Seat) | ||
| Power Tilt and Power Telescopic | ||
| Power Window | ||
| Pre-Collision System | ||
| Remote Control Mirror | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start and Theft Deterrent | ||
| SRS | ||
| Taillight | ||
| Tire Pressure Warning System | ||
| Turn Signal and Hazard Warning Light | ||
| Vehicle Dynamics Integrated Management | ||
| 15A | TURN-HAZ | Turn Signal and Hazard Warning Light |
| 25A | ABS 3 | Dynamic Radar Cruise Control |
| Vehicle Dynamics Integrated Management | ||
| 30A | MAIN | Adaptive Front-Lighting System |
| Automatic Light Control and Light Auto Turn Off System | ||
| Headlight | ||
| Headlight Cleaner | ||
| Smart Access System with Push-Button Start and Theft Deterrent | ||
| 30A | RAD NO.1 | Audio System, LEXUS Navigation System and Parking Assist (Rear View Monitor) |
| 30A | RAD NO.2 | Audio System, LEXUS Navigation System and Parking Assist (Rear View Monitor) |
| 30A | STARTER | Smart Access System with Push-Button Start and Theft Deterrent |
| 40A | FAN1 | Cooling Fan |
| 40A | FAN2 | Cooling Fan |
| 40A | VVT | Engine Control, Electronically Controlled Transmission and A/T Indicator |
| 50A | ABS1 | Dynamic Radar Cruise Control |
| Vehicle Dynamics Integrated Management | ||
| 50A | DEFOG | Mirror Heater and Rear Window Defogger |
| 50A | HEATER | Air Conditioning |
| 80A | EPS | EPS |
| 80A | LH J/B-AM | Illumination |
| Taillight | ||
| 180A | ALT | Charging |
