DTC U0132 Lost Communication with Ride Level Control Module: Wiring Diagram

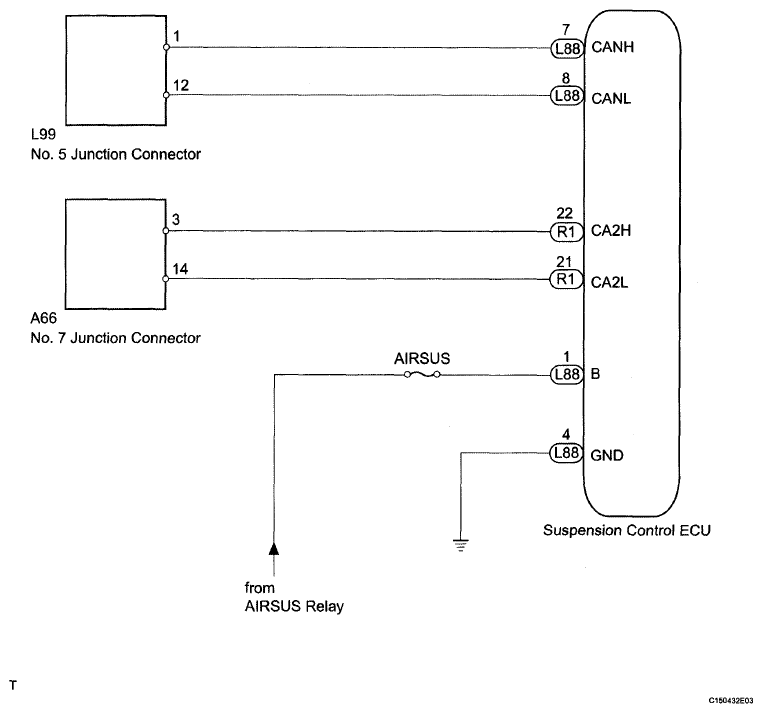

Fig 1: Lost Communication With Ride Level Control Module - Wiring Diagram
G06198495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
