Rear Speed Sensor: Components
Fig 1: Identifying Rear Speed Sensor Replacement Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Rear Speed Sensor Replacement Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

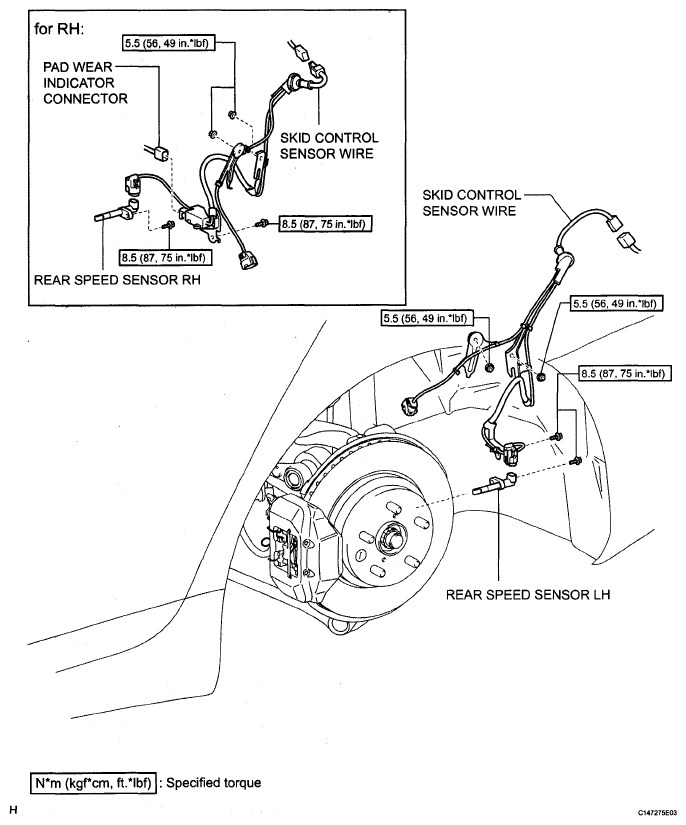

Fig 3: Rear Speed Sensor Replacement Components (3 Of 3) With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
