DTC C15A3/63 Actuator Malfunction; DTC C15C5/69 Motor Revolution Angle Signal (Test Mode DTC): Wiring Diagram

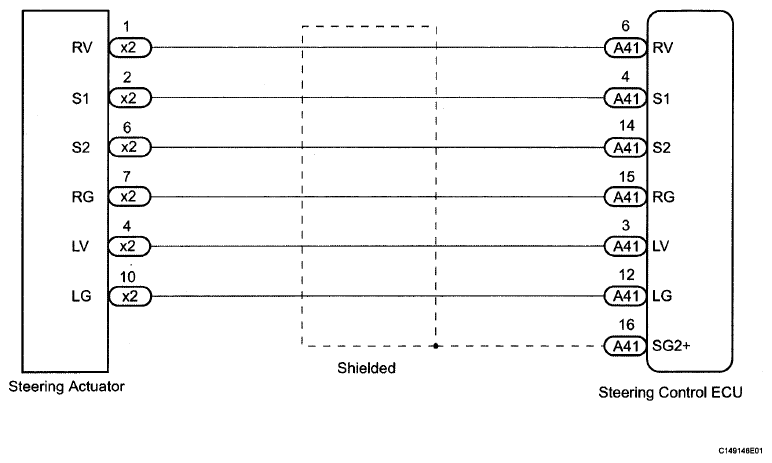

Fig 1: Actuator Malfunction - Wiring Diagram
G06191594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
