DTC U0122: Lost Communication with Vehicle Dynamics Control Module; DTC U0129: Lost Communication with Brake System Control Module: Wiring Diagram

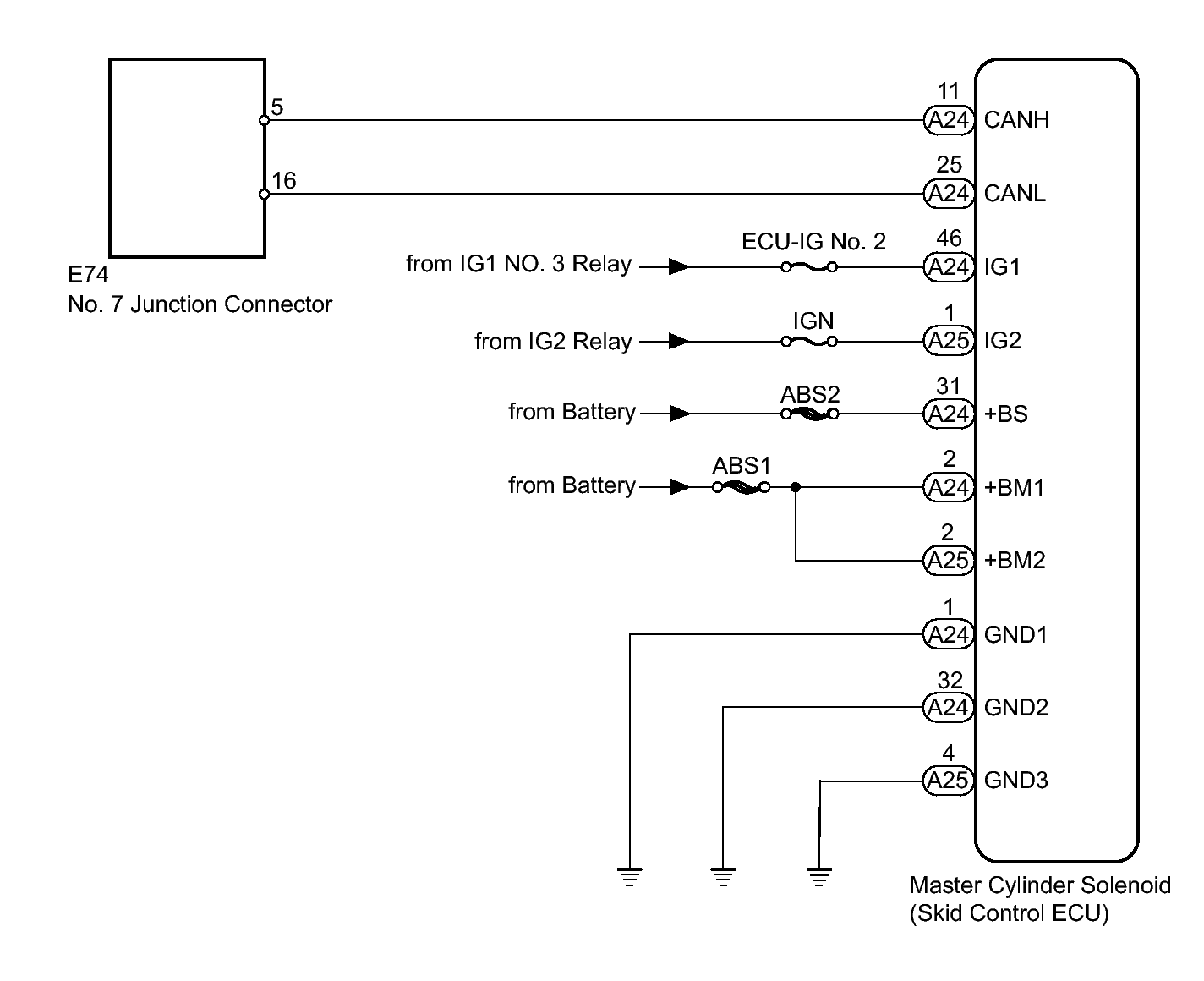

Fig 1: Lost Communication With Brake System Control Module - Wiring Diagram
GTY109603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
