Communication Devices
>>
Can Communication System (Diagnostics & Symptom Tests)
>>
Can Communication System
>>
Display and Navigation Assembly Communication Stop Mode
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Display and Navigation Assembly Communication Stop Mode: Wiring Diagram

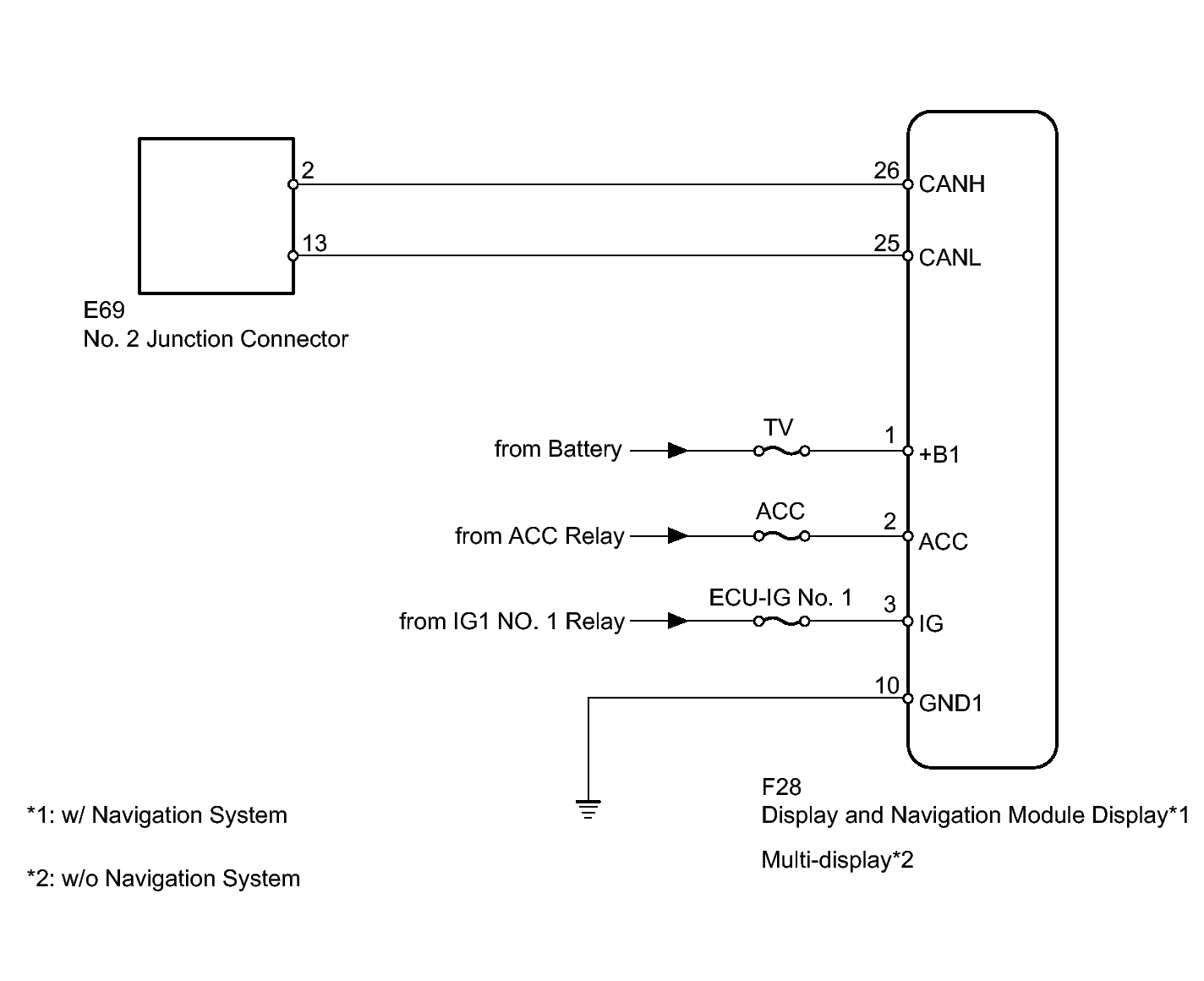

Fig 1: Display And Navigation Assembly Communication Stop Mode - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
