DTC 4-3: Overhead Module Microphone Error: Procedure

1. Start the navigation system and check that the voice recognition microphone function operates normally.
   RESULT



   Result	Proceed to
   Microphone function is normal	A
   Microphone function is malfunctioning	B

B → See step   7

A: Go to next step

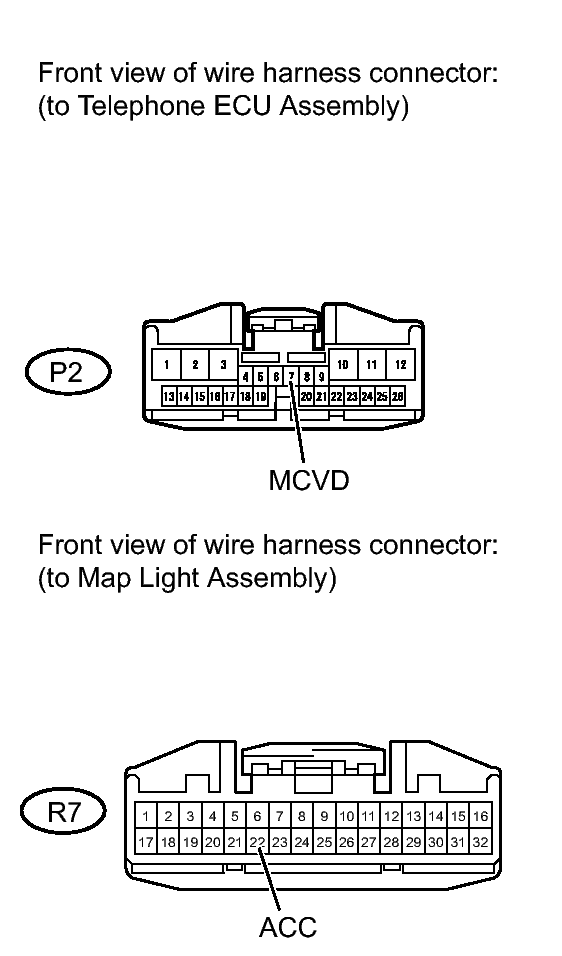

Fig 1: Identifying P2 And R7 Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the P2 ECU connector.
2. Disconnect the R7 map light connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   P2-7 (MCVD) - R7-22 (ACC)	Always	Below 1 Ω
   P2-7 (MCVD) or R7-22 (ACC) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR THEN CLEAR HISTORIC DTC

OK: Go to next step

1. Disconnect the R7 map light connector.

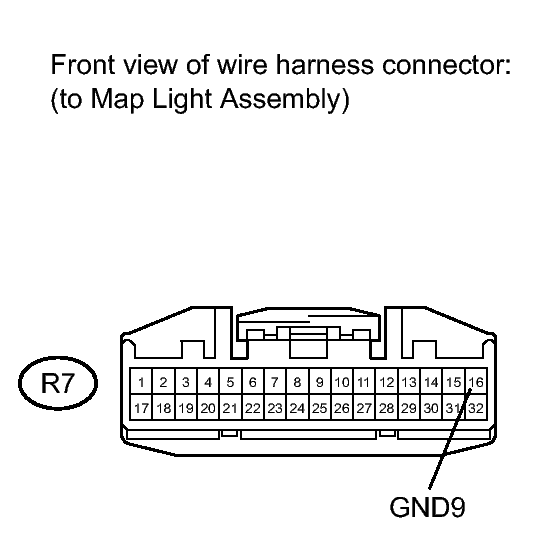

   Fig 2: Identifying R7 Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   R7-16 (GND9) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR THEN CLEAR HISTORIC DTC

OK: Go to next step

1. Temporarily replace the map light with a new or normally functioning one. Refer to REMOVAL .
2. Check if DTC 4-3 is output.

   OK

   DTC 4-3 is not output.

NG → See step   5

OK → See step   8

NEXT → See step   6
