DTC B2602: Key Unlock Warning Switch Circuit Malfunction; DTC B2606: Key Code Confirm Signal Malfunction: Wiring Diagram

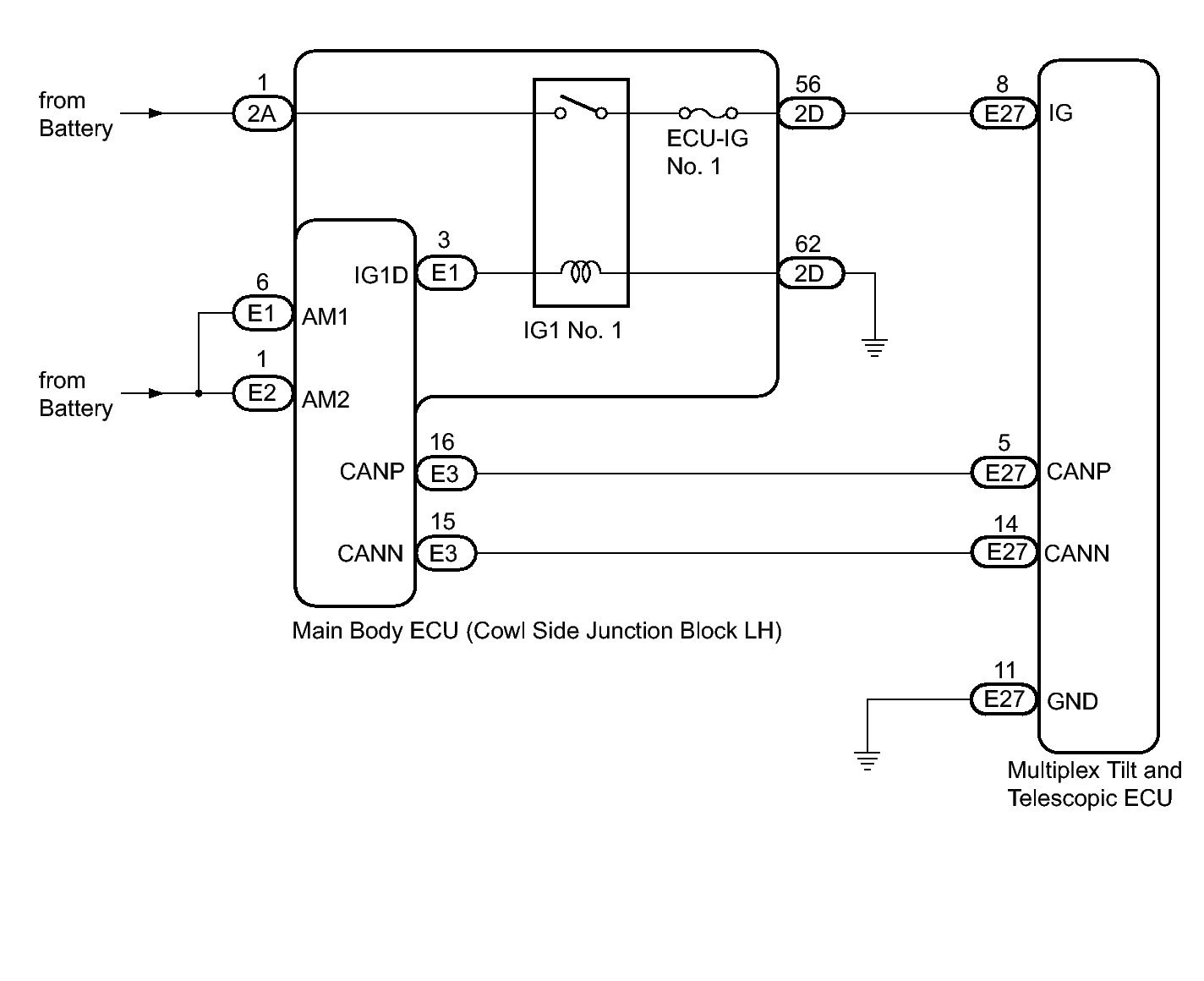

Fig 1: Key Unlock Warning Switch Wiring Diagram
GTY149160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
