Pattern Select Switch Power Mode Circuit: Procedure

1. Remove the No. 1 pattern select switch assembly. Refer to REMOVAL .

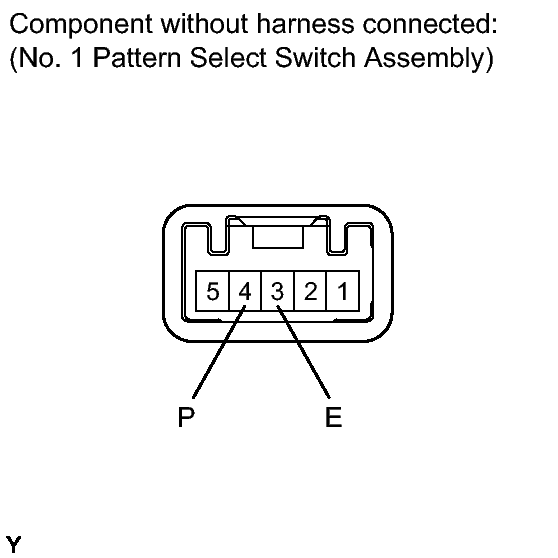

   Fig 1: Identifying Pattern Select Switch Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   4 (P) - 3 (E)	Pattern select switch (PWR) on	Below 1 Ω
   4 (P) - 3 (E)	Pattern select switch (PWR) off	10 kΩ or higher

NG → See step   5

OK: Go to next step

1. Disconnect the V5 No. 1 pattern select switch assembly connector.
   Fig 2: Identifying Pattern Select Switch Connector Terminal (E)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   V5-3 (E) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

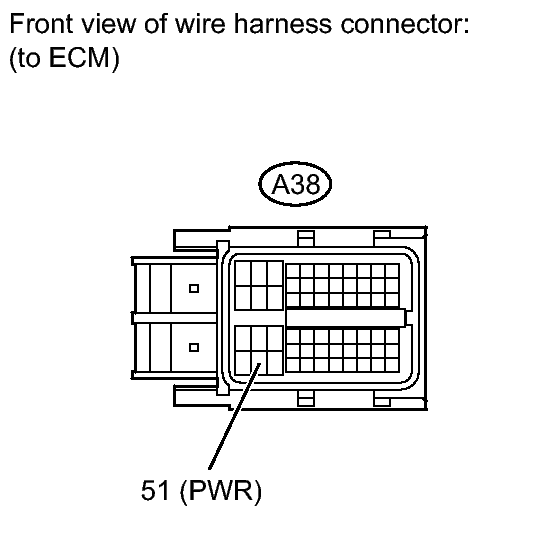

Fig 3: Identifying A38 Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the A38 ECM connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   A38-51 (PWR) - Body ground	Pattern select switch (PWR) on	Below 1 Ω
   A38-51 (PWR) - Body ground	Pattern select switch (PWR) off	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   4
