Moon Roof: Notes

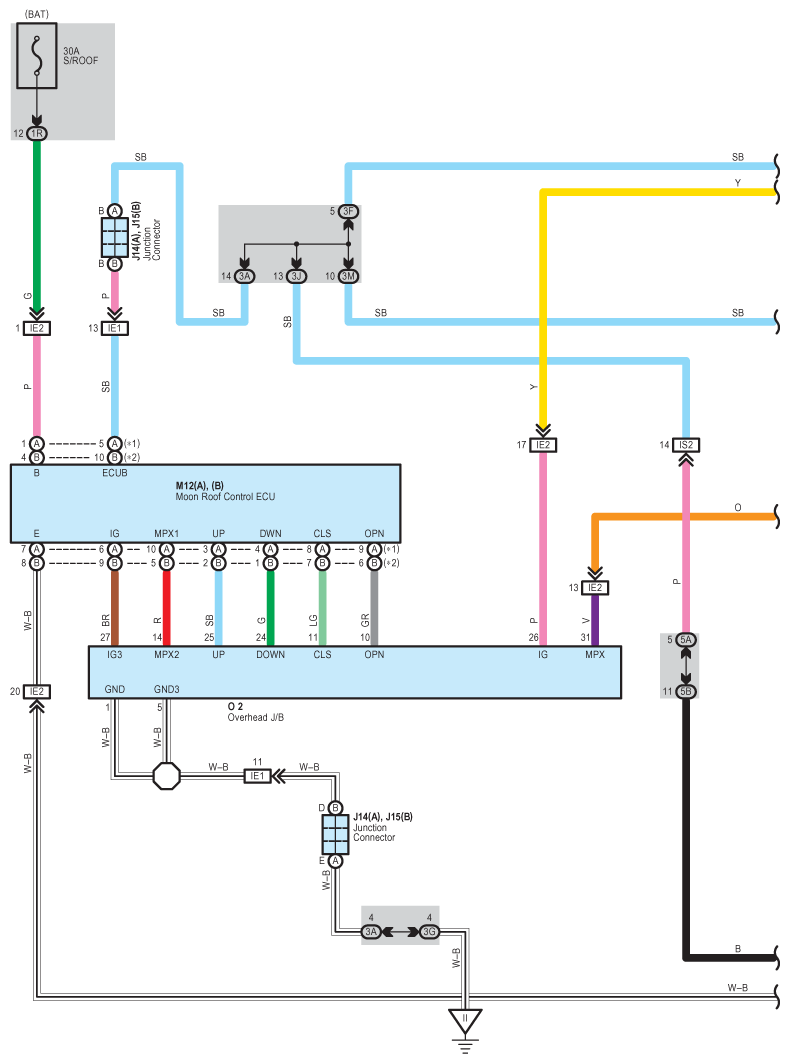

Fig 1: Moon Roof - Circuit Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

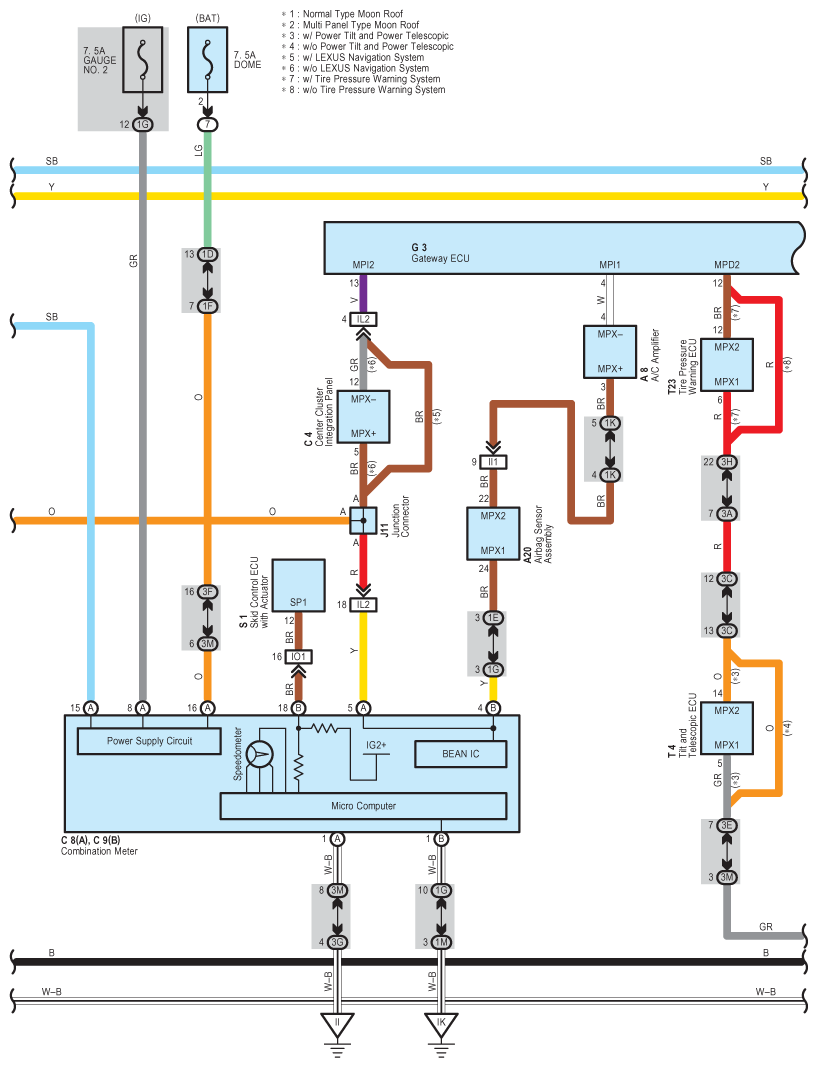

Fig 2: Moon Roof - Circuit Diagram (2 Of 3)

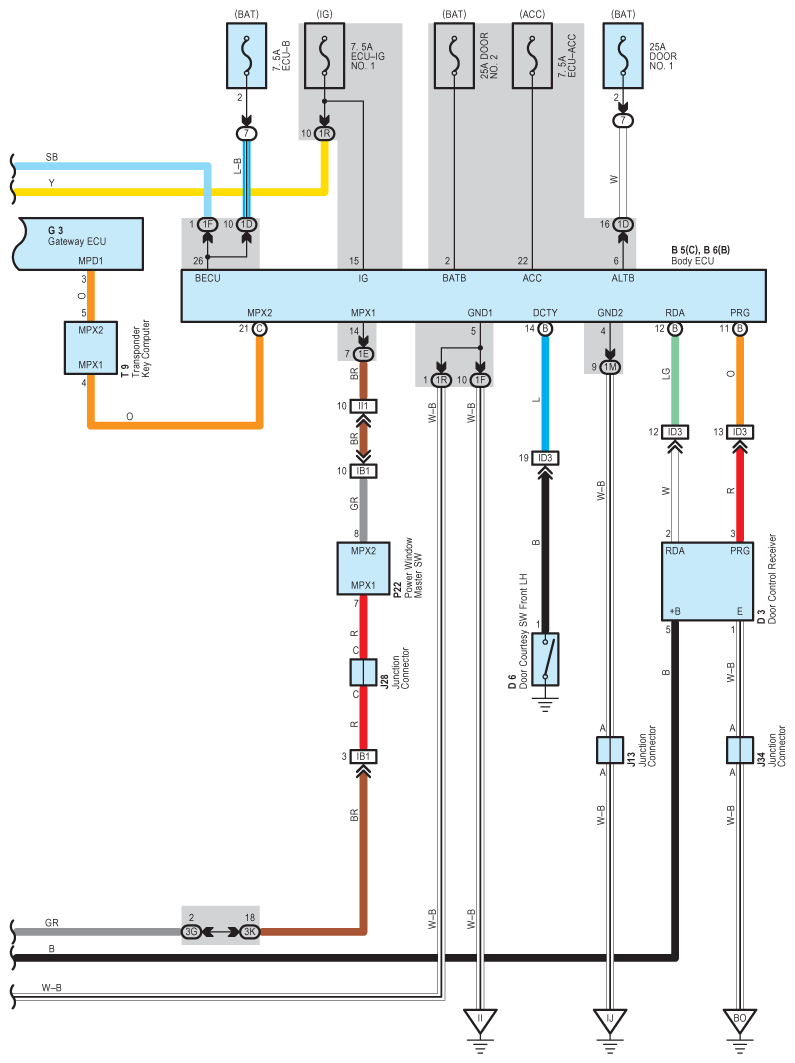

Fig 3: Moon Roof - Circuit Diagram (3 Of 3)
