Home >> Lexus >> 2009 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

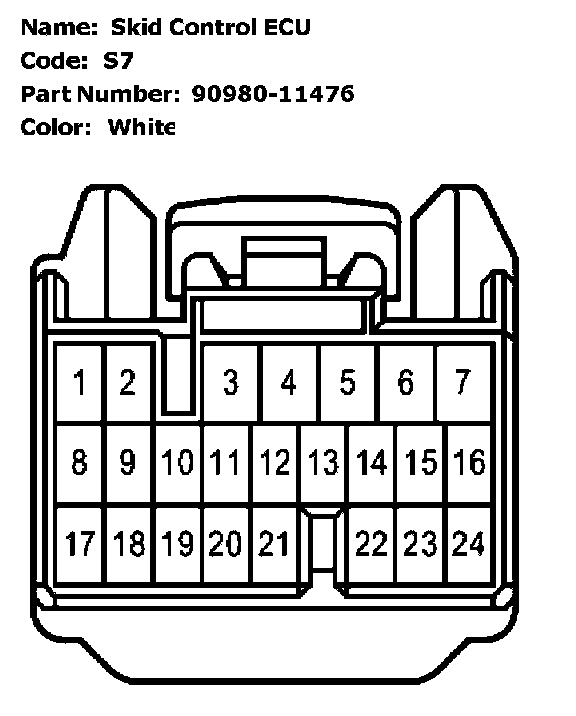

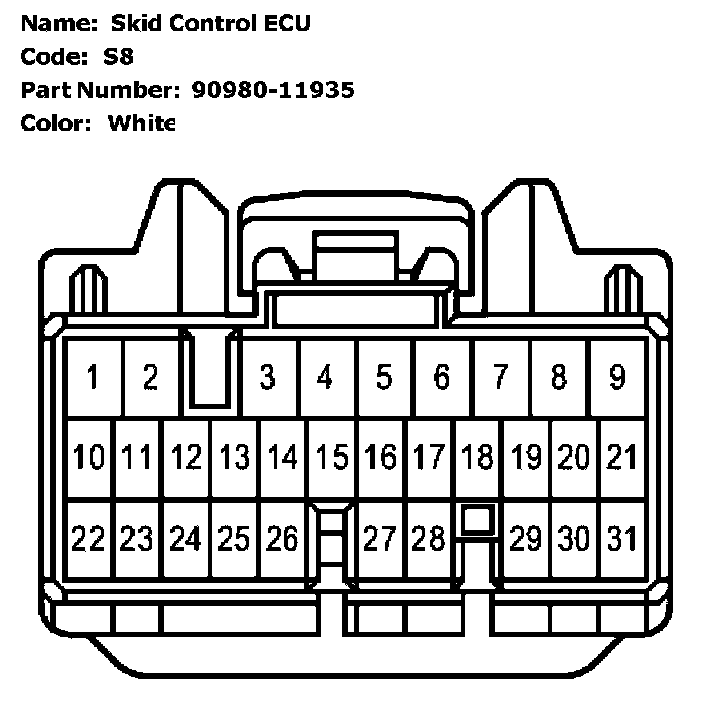

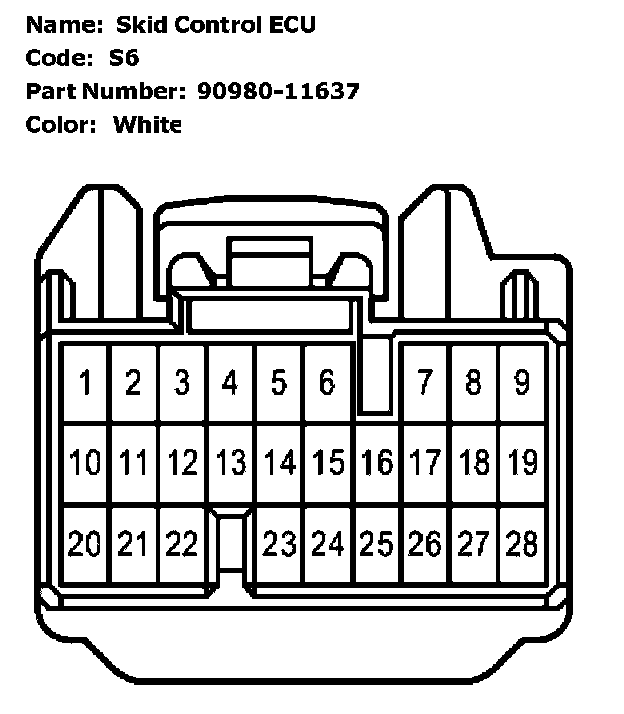

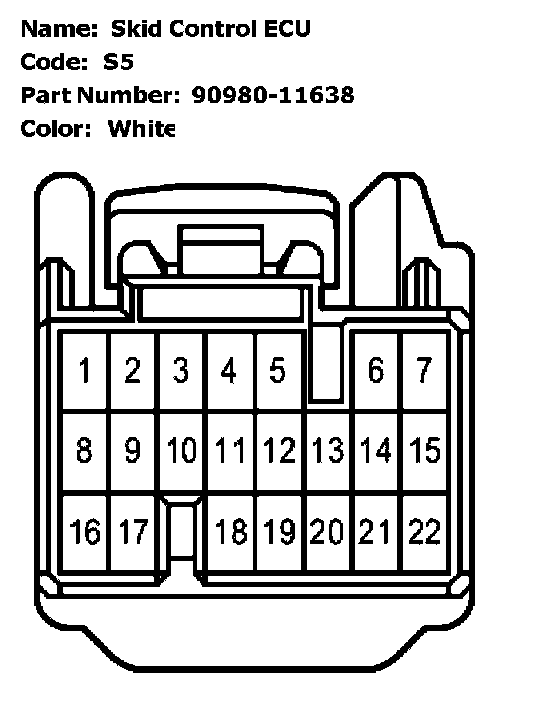

Electronic Brake Control Module
