Multiplex Communication System [J/B ECU] Part 7

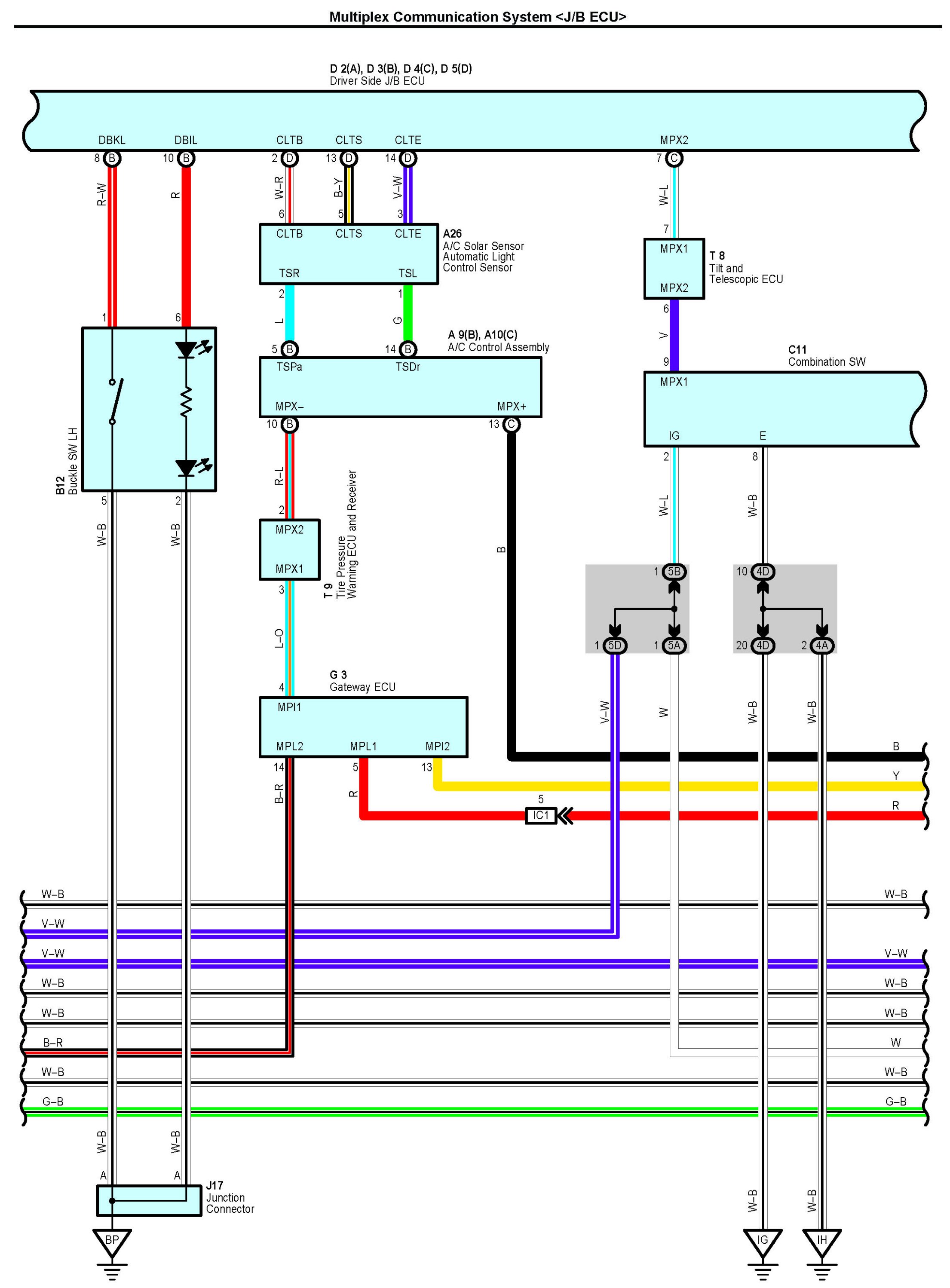

Multiplex Communication System [J/B ECU] Part 7:

Connectors Part 1:

Connectors Part 2:

Connectors Part 3:

Connectors Part 4:

Connectors Part 5:

Connectors Part 6:

Connectors Part 7:

Connectors Part 8:

Next Diagram Multiplex Communication System [J/B ECU] Part 8

Previous Diagram Multiplex Communication System [J/B ECU] Part 6

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
