Conditioning For Sensor Testing

Perform the operation with the engine speeds and time durations described below prior to checking the waveforms of the A/F and HO2 sensors. This is performed in order to heat the sensors sufficiently to obtain the appropriate inspection results.

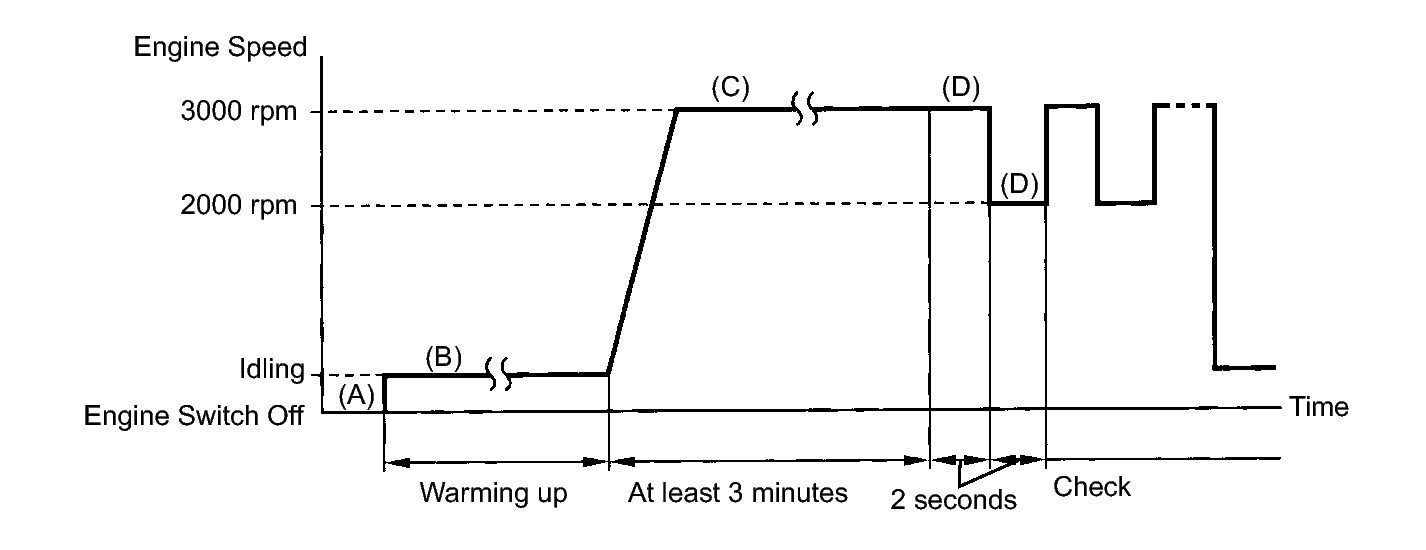

Fig 1: Identifying Sensor Testing Graph

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect the Techstream to the DLC3 (Procedure "A").
Start the engine and warm it up with all the accessories switched off, until the engine coolant temperature stabilizes (Procedure "B").
Run the engine at an engine speed of between 2500 RPM and 3000 RPM for at least 3 minutes (Procedure "C").
While running the engine at 3000 RPM for 2 seconds and 2000 RPM for 2 seconds, check the waveforms of the A/F and HO2 sensors using the Techstream or scan tool (Procedure "D").

NOTE:

The Air-Fuel Ratio (A/F) sensor has an output delay of a few seconds and the Heated Oxygen (HO2) sensor has a maximum output delay of approximately 20 seconds.

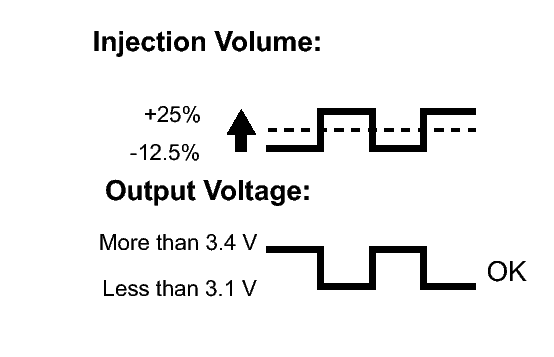

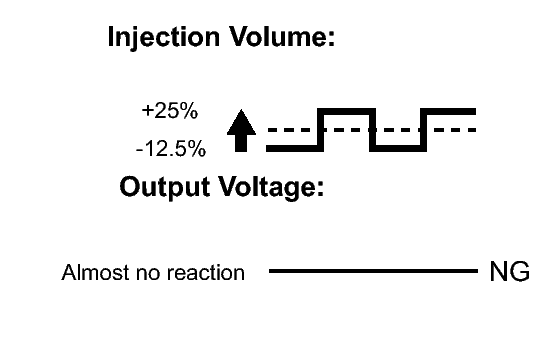

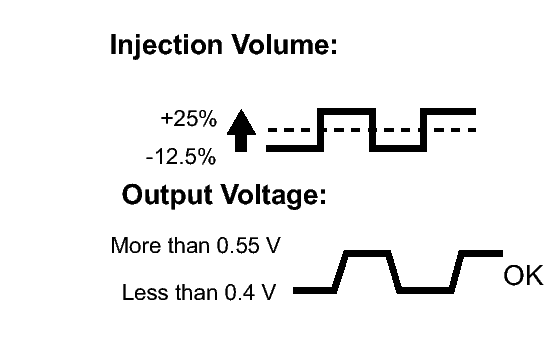

Case	Air Fuel Ratio Sensor (Sensor 1) Output Voltage	Heated Oxygen Sensor (Sensor 2) Output Voltage	Main Suspected Trouble Area
1	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	-
2	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Air fuel ratio sensor Air fuel ratio sensor heater Air fuel ratio sensor circuit
3	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Heated oxygen sensor Heated oxygen sensor heater Heated oxygen sensor circuit
4	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Fuel pressure Gas leakage from exhaust system (Air fuel ratio extremely lean or rich)

Following the Control the Injection Volume for A/F Sensor procedure enables technicians to check and graph the output voltages of both the A/F and HO2 sensors.
To display the graph, enter the following menus on the Techstream: Powertrain / Engine / Active Test / Control the Injection Volume for A/F Sensor / AFS Voltage B1S1 or AFS Voltage B2S1 and O2S B1S2 or O2S B2S2 then press the graph button on the Data List view.
