Rear Door LH Entry Unlock Function does not Operate: Wiring Diagram

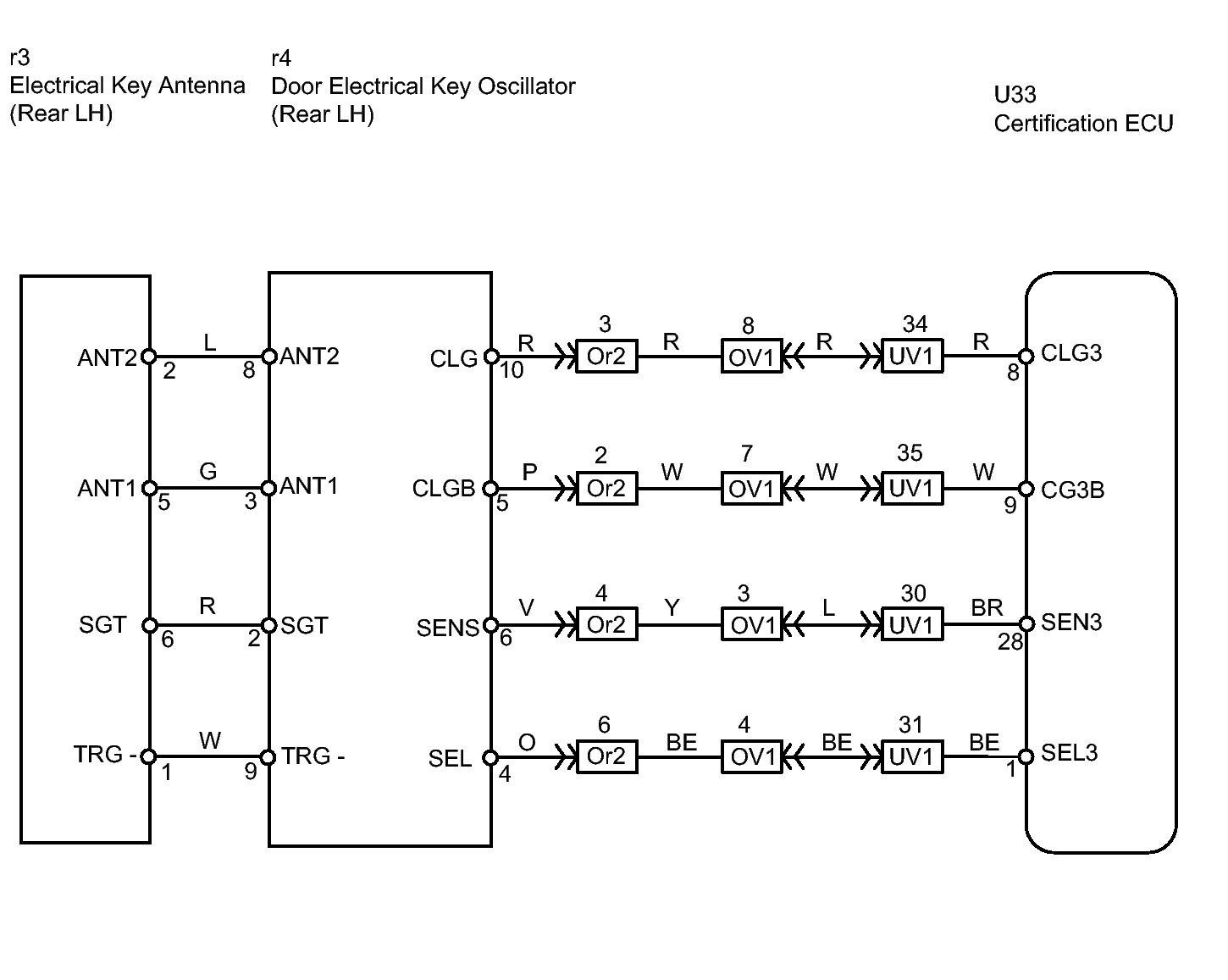

Fig 1: Identifying Rear Door LH Entry - Wiring Diagram
GTY280005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
