Room Oscillator does not Recognize Key: Wiring Diagram

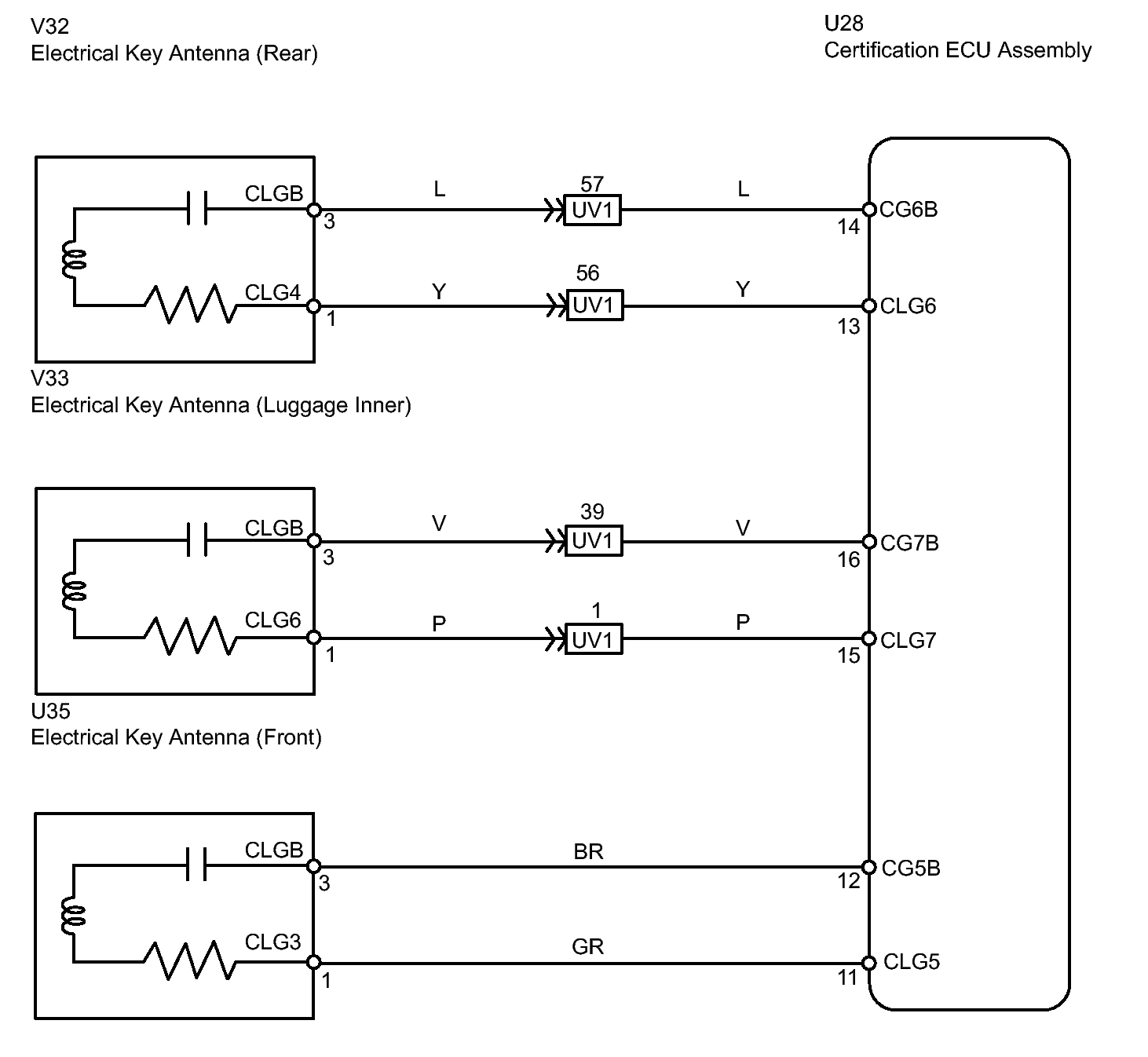

Fig 1: Identifying Room Oscillator Does Not Recognize Key -- Wiring Diagram
GTY100106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
