DCM Data Signal Circuit between Navigation ECU and DCM: Wiring Diagram

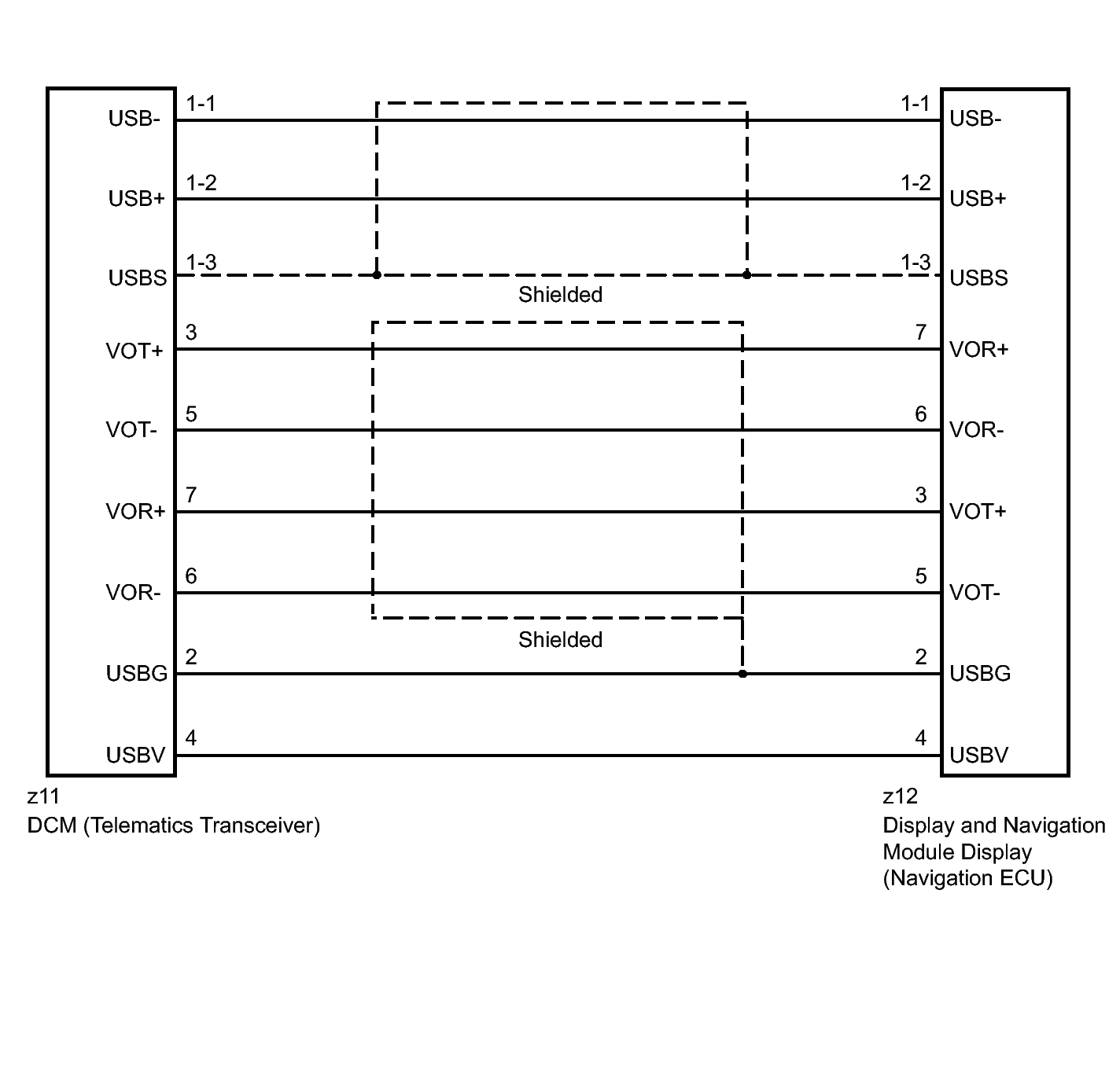

Fig 1: Identifying Navigation ECU & DCM - Wiring Diagram
GTY277416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
