Front Power Seat does not Operate with Front Power Seat Switch: Wiring Diagram

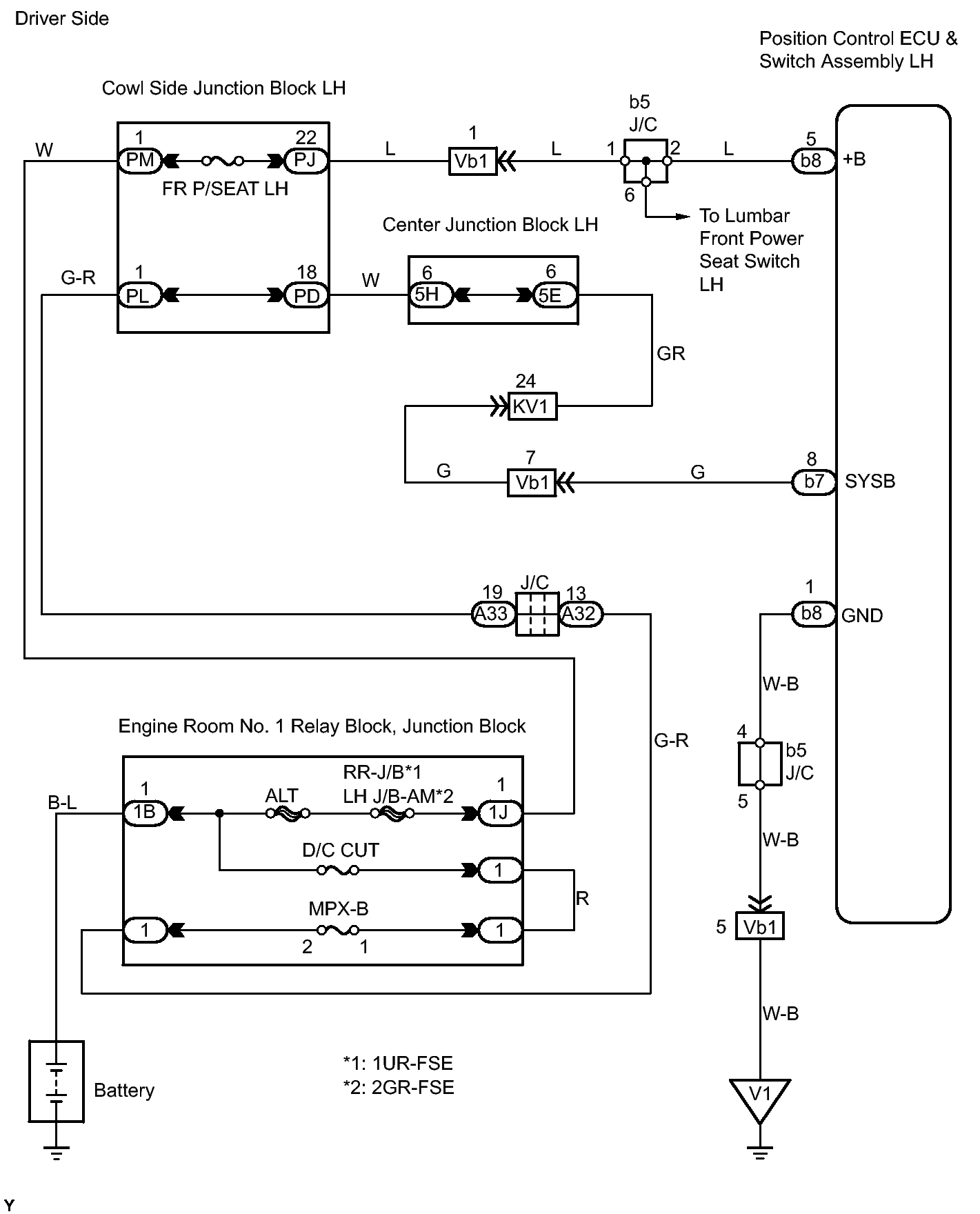

Fig 1: Identifying Front Power Seat Switch (Driver) - Wiring Diagram
GTY266611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

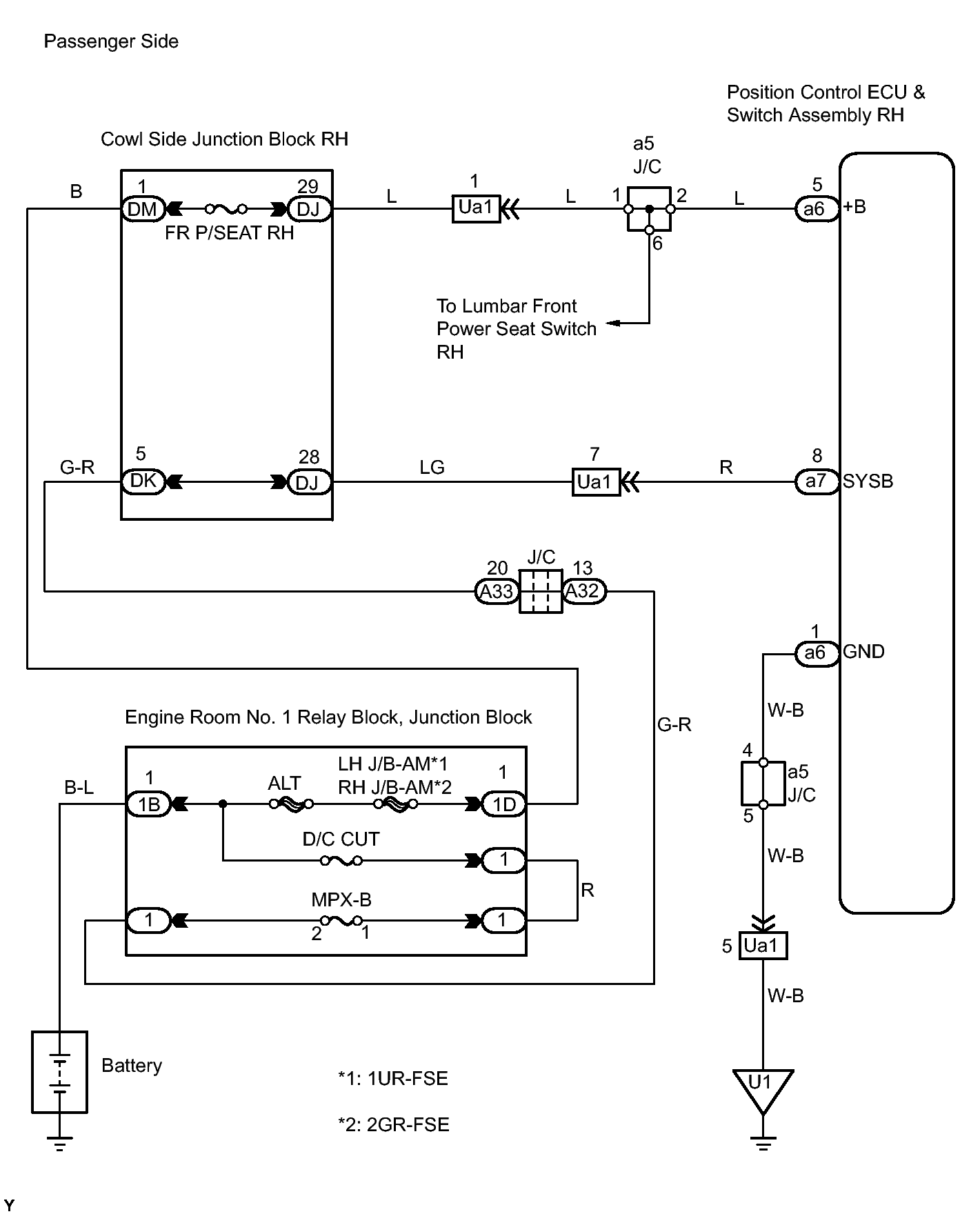

Fig 2: Identifying Front Power Seat Switch (Passenger) - Wiring Diagram
GTY285630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
