Power Seat Position is not Memorized: Wiring Diagram

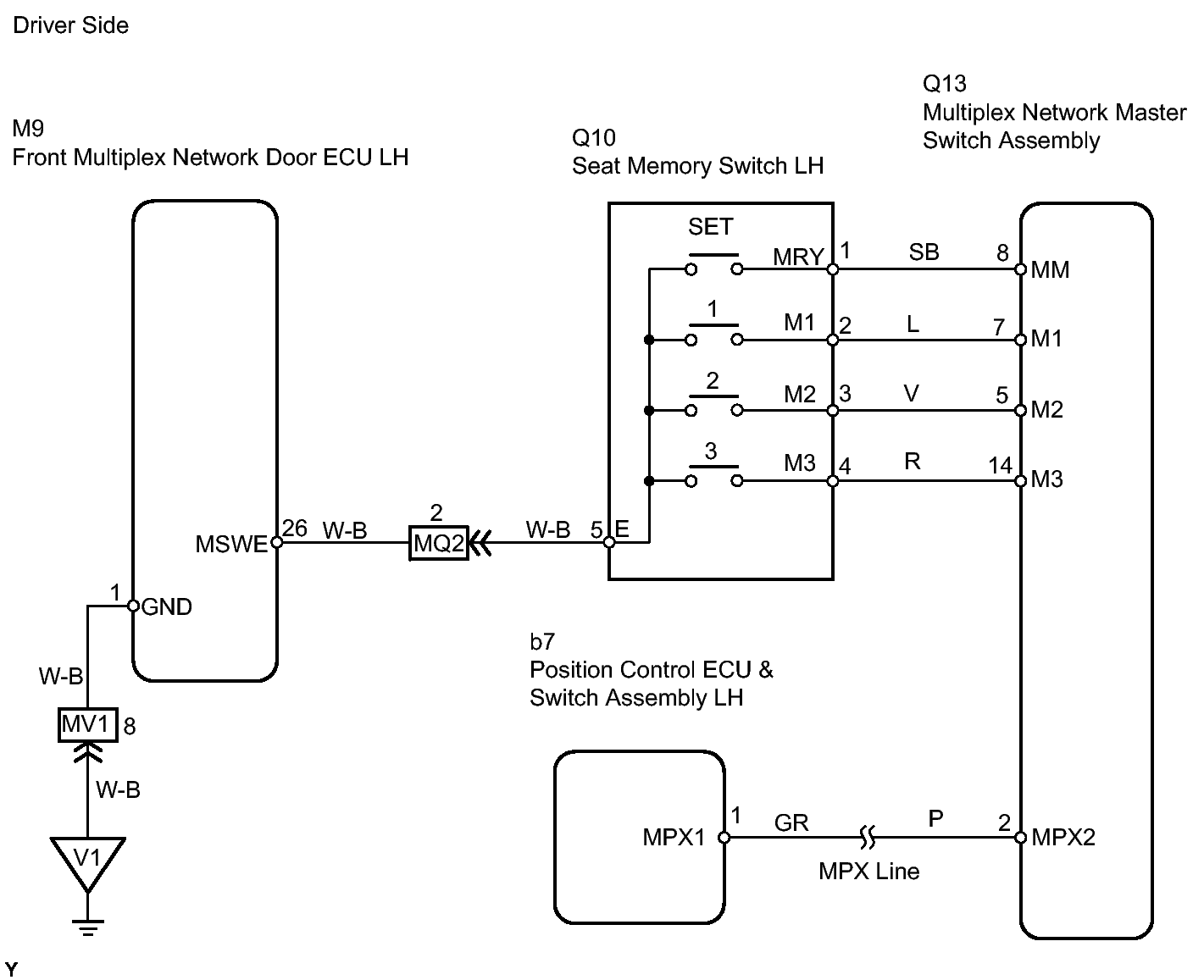

Fig 1: Identifying Driver Side Seat Memory - Wiring Diagram
GTY102497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

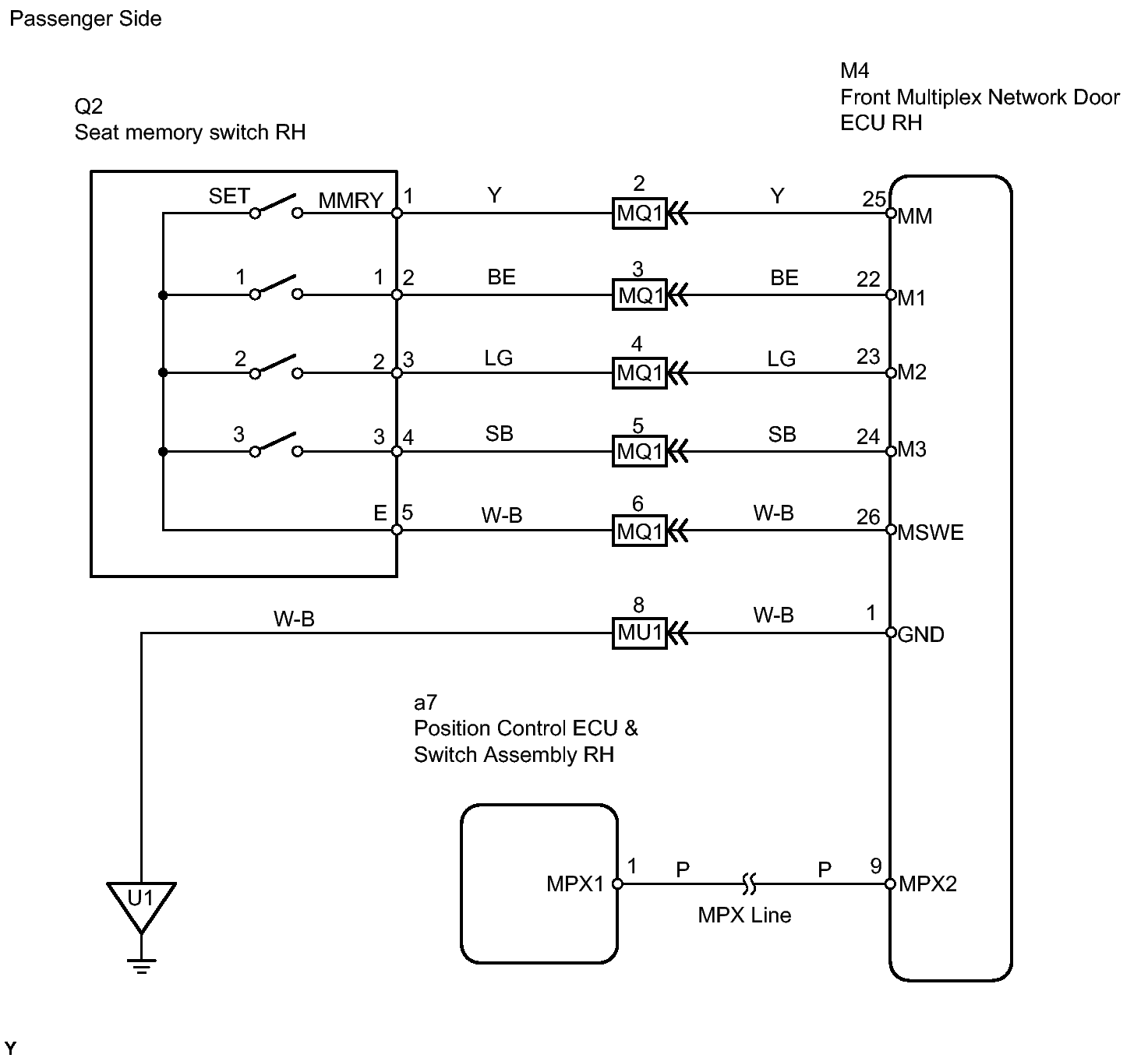

Fig 2: Identifying Passenger Side Seat Memory - Wiring Diagram
GTY102773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
