DTC B1790: Center Airbag Sensor Assembly Communication Circuit Malfunction: Procedure

  1. CHECK CONNECTORS
    1. Turn the engine switch off.
    2. Disconnect the cable from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    3. Check that the connectors are properly connected to the occupant classification ECU and center airbag sensor assembly.

      OK

      The connectors are properly connected.

      HINT:

      If the connectors are not connected securely, reconnect the connectors and proceed to the next inspection.

    4. Disconnect the connectors from the center airbag sensor assembly and occupant classification ECU.
    5. Check that the terminals of the connectors are not damaged.

      OK

      The terminals are not deformed or damaged.

    NG → REPLACE WIRE HARNESS

    OK: Go to next step

  2. CHECK OCCUPANT CLASSIFICATION SYSTEM CIRCUIT (SHORT TO B+)
    1. Connect the cable to the negative (-) battery terminal.

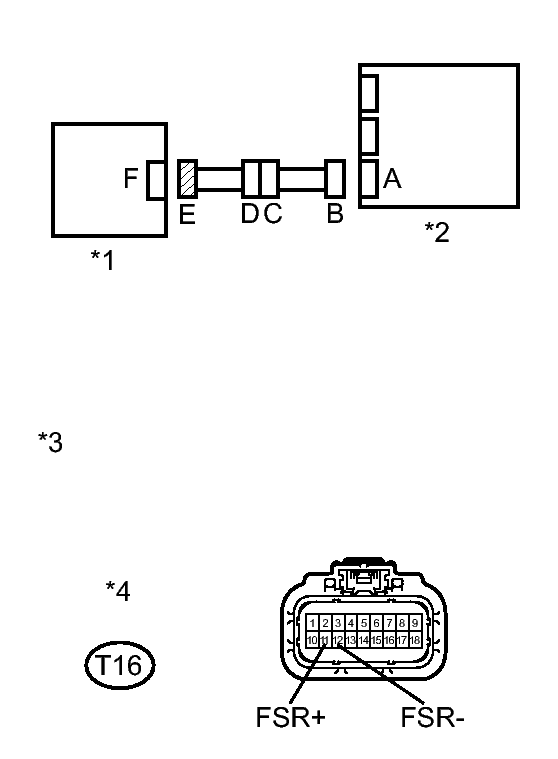

      Fig 1: Inspecting Occupant Classification System Circuit (Short To B+)
      GTY286797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Occupant Classification ECU
      *2 Center Airbag Sensor Assembly
      *3 Front view of wire harness connector
      (to Occupant Classification ECU)
      *4 Connector E
    2. Turn the engine switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      T16-11 (FSR+) - Body ground Engine switch on (IG) Below 1 V
      T16-12 (FSR-) - Body ground Engine switch on (IG) Below 1 V

    NG → See step   12

    OK: Go to next step

  3. CHECK OCCUPANT CLASSIFICATION SYSTEM CIRCUIT (OPEN)
    1. Turn the engine switch off.

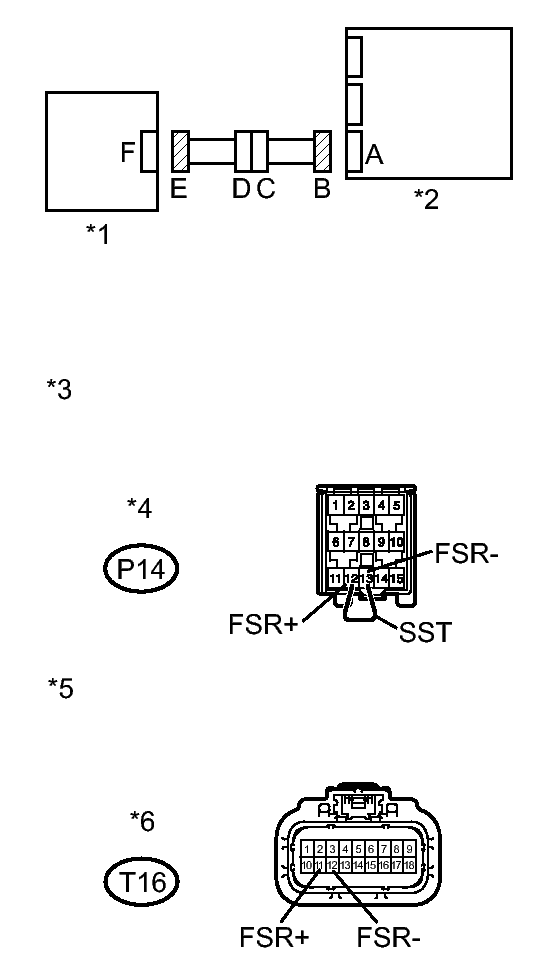

      Fig 2: Inspecting Occupant Classification System Circuit (Open)
      GTY285636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Occupant Classification ECU
      *2 Center Airbag Sensor Assembly
      *3 Front view of wire harness connector
      (to Center Airbag Sensor Assembly)
      *4 Connector B
      *5 Front view of wire harness connector
      (to Occupant Classification ECU)
      *6 Connector E
    2. Disconnect the cable from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    3. Using SST, connect terminals 12 (FSR+) and 13 (FSR-) of connector B.
      NOTE:

      Do not forcibly insert SST into the terminals of the connector when connecting the wire.

      • SST: 09843-18040
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      T16-11 (FSR+) - T16-12 (FSR-) Always Below 1 Ω

    NG → See step   13

    OK: Go to next step

  4. CHECK OCCUPANT CLASSIFICATION SYSTEM CIRCUIT (SHORT)
    1. Disconnect SST from connector B.
      Fig 3: Inspecting Occupant Classification System Circuit (Short)
      GTY286797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Occupant Classification ECU
      *2 Center Airbag Sensor Assembly
      *3 Front view of wire harness connector
      (to Occupant Classification ECU)
      *4 Connector E
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      T16-11 (FSR+) - T16-12 (FSR-) Always 1 MΩ or higher

    NG → See step   14

    OK: Go to next step

  5. CHECK OCCUPANT CLASSIFICATION SYSTEM CIRCUIT (SHORT TO GROUND)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 4: Inspecting Occupant Classification System Circuit (Short To Ground)
      GTY286797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Occupant Classification ECU
      *2 Center Airbag Sensor Assembly
      *3 Front view of wire harness connector
      (to Occupant Classification ECU)
      *4 Connector E

      Standard Resistance

      Tester Connection Condition Specified Condition
      T16-11 (FSR+) - Body ground Always 1 MΩ or higher
      T16-12 (FSR-) - Body ground Always 1 MΩ or higher

    NG → See step   15

    OK: Go to next step

  6. CHECK DTC
    1. Connect the connectors to the occupant classification ECU and center airbag sensor assembly.
    2. Connect the Techstream to the DLC3.
    3. Connect the cable to the negative (-) battery terminal.
    4. Turn the engine switch on (IG).
    5. Clear the DTCs stored in the occupant classification ECU. Refer to DTC CHECK / CLEAR .
    6. Clear the DTCs stored in the center airbag sensor assembly. Refer to DTC CHECK / CLEAR .
    7. Turn the engine switch off.
    8. Turn the engine switch on (IG).
    9. Using the Techstream, check for DTCs of the occupant classification ECU. Refer to DTC CHECK / CLEAR .

      OK

      DTC B1790 is not output.

      HINT:

      Codes other than DTC B1790 may be output at this time, but they are not related to this check.

    NG → See step   7

    OK → See step   16

  7. REPLACE OCCUPANT CLASSIFICATION ECU
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Using the Techstream, save the ECU data from the ECU currently installed on the vehicle. Refer to REGISTRATION .
    4. Turn the engine switch off.
    5. Disconnect the cable from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    6. Replace the occupant classification ECU. Refer to REMOVAL .
    7. Connect the cable to the negative (-) battery terminal.
    8. Turn the engine switch on (IG).
    9. Using the Techstream, load the previous ECU data stored into the new ECU. Refer to REGISTRATION .
    10. Turn the engine switch off.
    11. Turn the engine switch on (IG).
    12. Clear the DTCs stored in the memory. Refer to DTC CHECK / CLEAR .

      HINT:

      If the DTCs are not cleared at this time, history DTCs will remain.

    NEXT: Go to next step

  8. RECHECK DTC
    1. Turn the engine switch on (IG).
    2. Clear the DTCs stored in the occupant classification ECU. Refer to DTC CHECK / CLEAR .
    3. Clear the DTCs stored in the center airbag sensor assembly. Refer to DTC CHECK / CLEAR .
    4. Turn the engine switch off.
    5. Turn the engine switch on (IG).
    6. Using the Techstream, check for DTCs of the occupant classification ECU. Refer to DTC CHECK / CLEAR .

      OK

      DTC B1790 is not output.

      HINT:

      Codes other than DTC B1790 may be output at this time, but they are not related to this check.

    NG → See step   10

    OK: Go to next step

  9. PERFORM SENSITIVITY CHECK
    1. Perform the sensitivity check. Refer to INITIALIZATION .

    NEXT → END

  10. REPLACE CENTER AIRBAG SENSOR ASSEMBLY
    1. Turn the engine switch off.
    2. Disconnect the cable from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    3. Replace the center airbag sensor assembly. Refer to REMOVAL .

    NEXT: Go to next step

  11. PERFORM SENSITIVITY CHECK
    1. Perform the sensitivity check. Refer to INITIALIZATION .

    NEXT → END

  12. CHECK FLOOR WIRE (SHORT TO B+)
    1. Turn the engine switch off.

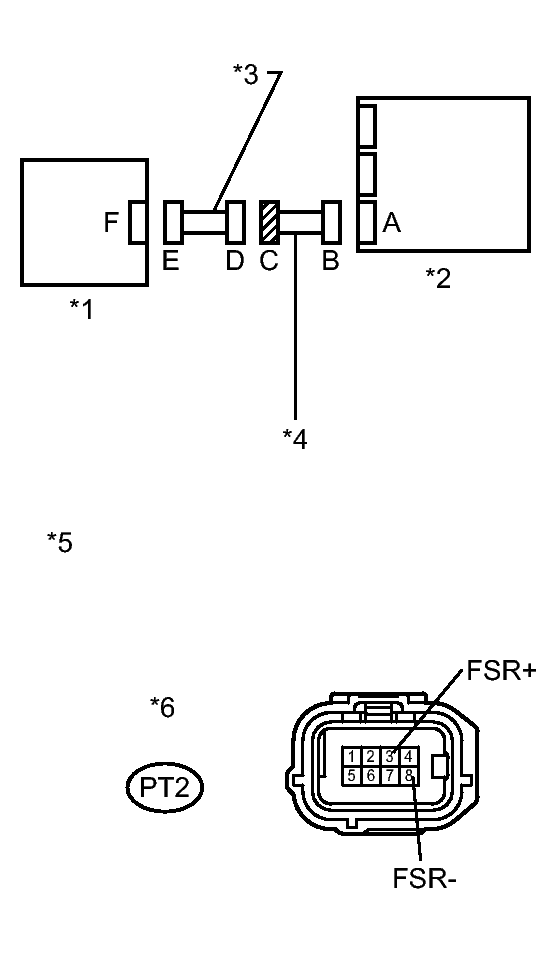

      Fig 5: Inspecting Floor Wire (Short To B+)
      GTY268724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Occupant Classification ECU
      *2 Center Airbag Sensor Assembly
      *3 Front Seat Wire RH
      *4 Floor Wire
      *5 Front view of wire harness connector
      (to Front Seat Wire RH)
      *6 Connector C
    2. Disconnect the cable from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    3. Disconnect the front seat wire RH connector from the floor wire.
    4. Connect the cable to the negative (-) battery terminal.
    5. Turn the engine switch on (IG).
    6. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      PT2-3 (FSR+) - Body ground Engine switch on (IG) Below 1 V
      PT2-8 (FSR-) - Body ground Engine switch on (IG) Below 1 V

    NG → REPLACE FLOOR WIRE

    OK → REPLACE FRONT SEAT WIRE RH

  13. CHECK FLOOR WIRE (OPEN)
    1. Disconnect the front seat wire RH connector from the floor wire.

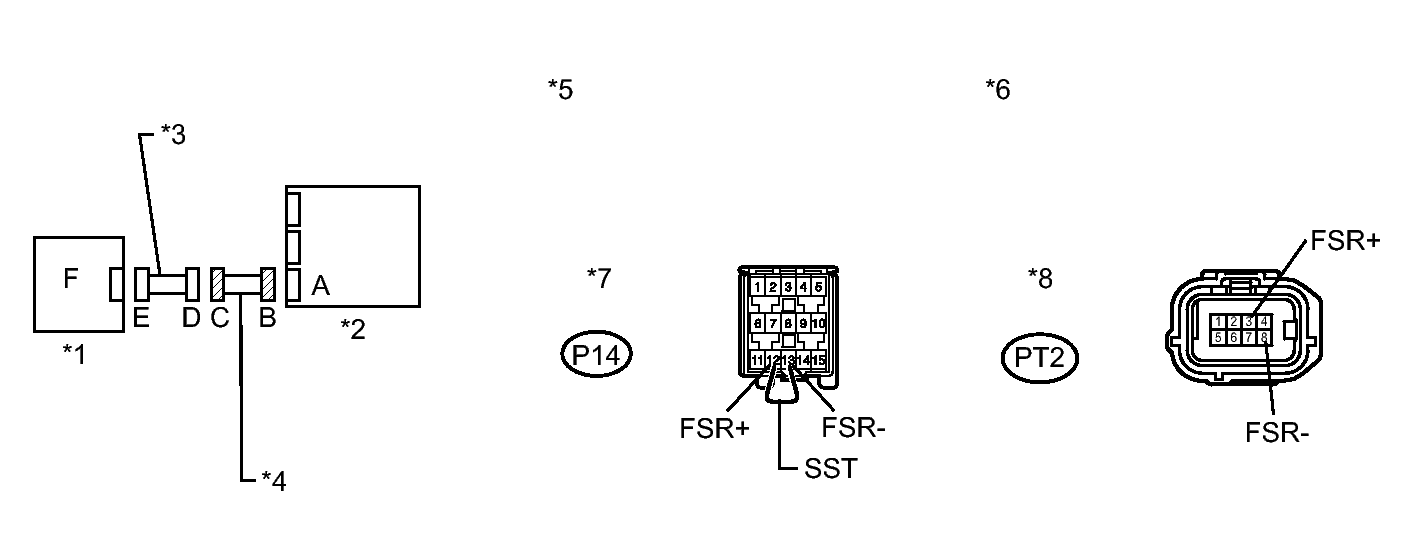

      Fig 6: Inspecting Floor Wire (Open)
      GTY261466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Occupant Classification ECU *2 Center Airbag Sensor Assembly
      *3 Front Seat Wire RH *4 Floor Wire
      *5 Front view of wire harness connector
      (to Center Airbag Sensor Assembly)      		 *6 Front view of wire harness connector
      (to Front Seat Wire RH)
      *7 Connector B *8 Connector C

      HINT:

      SST has already been inserted into connector B.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      PT2-3 (FSR+) - PT2-8 (FSR-) Always Below 1 Ω

    NG → REPLACE FLOOR WIRE

    OK → REPLACE FRONT SEAT WIRE RH

  14. CHECK FLOOR WIRE (SHORT)
    1. Disconnect the front seat wire RH connector from the floor wire.
      Fig 7: Inspecting Floor Wire (Short)
      GTY268724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Occupant Classification ECU
      *2 Center Airbag Sensor Assembly
      *3 Front Seat Wire RH
      *4 Floor Wire
      *5 Front view of wire harness connector
      (to Front Seat Wire RH)
      *6 Connector C
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      PT2-3 (FSR+) - PT2-8 (FSR-) Always 1 MΩ or higher

    NG → REPLACE FLOOR WIRE

    OK → REPLACE FRONT SEAT WIRE RH

  15. CHECK FLOOR WIRE (SHORT TO GROUND)
    1. Disconnect the front seat wire RH connector from the floor wire.
      Fig 8: Inspecting Floor Wire (Short To Ground)
      GTY268724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Occupant Classification ECU
      *2 Center Airbag Sensor Assembly
      *3 Front Seat Wire RH
      *4 Floor Wire
      *5 Front view of wire harness connector
      (to Front Seat Wire RH)
      *6 Connector C
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      PT2-3 (FSR+) - Body ground Always 1 MΩ or higher
      PT2-8 (FSR-) - Body ground Always 1 MΩ or higher

    NG → REPLACE FLOOR WIRE

    OK → REPLACE FRONT SEAT WIRE RH

  16. USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING
