Power Source Circuit: Procedure

CHECK HARNESS AND CONNECTOR (STEERING LOCK ACTUATOR ASSEMBLY - BODY GROUND)

Disconnect the J29 connector from the steering lock actuator assembly.

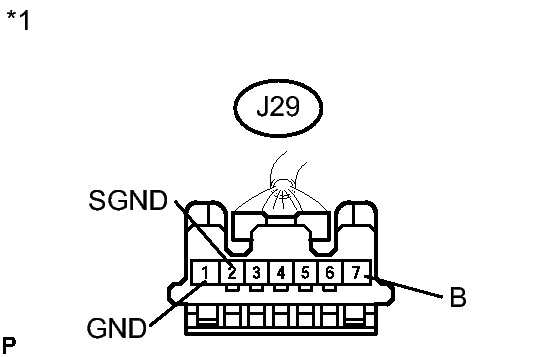

Fig 1: Identifying J29 Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Front view of wire harness connector (to Steering Lock Actuator Assembly)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
J29-1 (GND) - Body ground	Always	Below 1 Ω
J29-2 (SGND) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

CHECK HARNESS AND CONNECTOR (STEERING LOCK ACTUATOR ASSEMBLY - BATTERY)

Measure the voltage according to the value(s) in the table below.

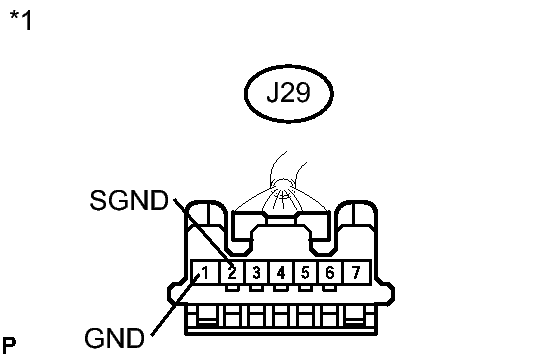

Fig 2: Identifying J29 Connector Terminals

TEXT IN ILLUSTRATION

*1	Front view of wire harness connector (to Steering Lock Actuator Assembly)

Standard Voltage

Tester Connection	Condition	Specified Condition
J29-7 (B) - J29-1 (GND)	Always	10 to 14 V
J29-7 (B) - J29-2 (SGND)	Always	10 to 14 V

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (STEERING LOCK ACTUATOR ASSEMBLY - BATTERY)

OK → See step 3

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE
