Driver Side Door Entry Lock Function does not Operate: Wiring Diagram

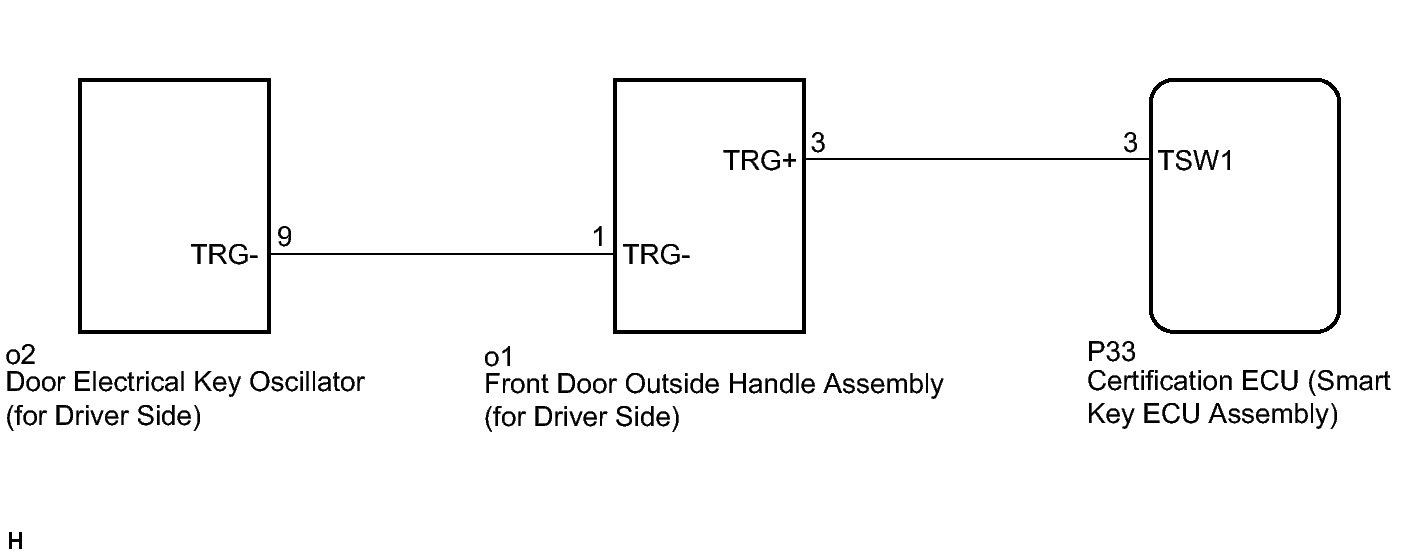

Fig 1: Identifying Driver Side Door Entry Lock Function - Wiring Diagram
GTY260697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
