Luggage Compartment Door Entry Unlock Function does not Operate when Key is Outside Luggage Compartment: Wiring Diagram

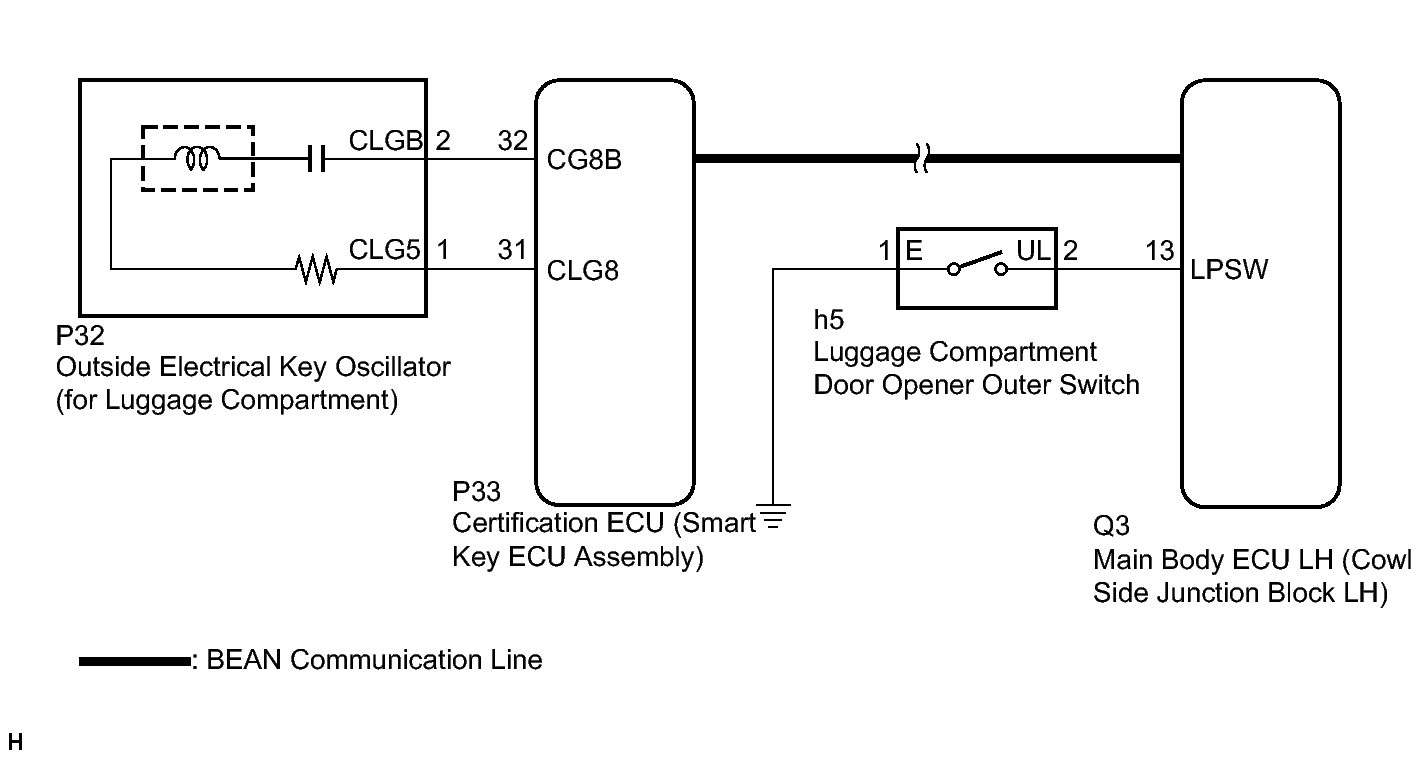

Fig 1: Identifying Luggage Compartment Door Entry Unlock Function - Wiring Diagram
GTY255700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
