Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio / Video System (W/O Navigation) (Diagnostics - Introduction)
>>
AUDIO AND VISUAL SYSTEM (w/o Navigation System)
>>
System Diagram
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

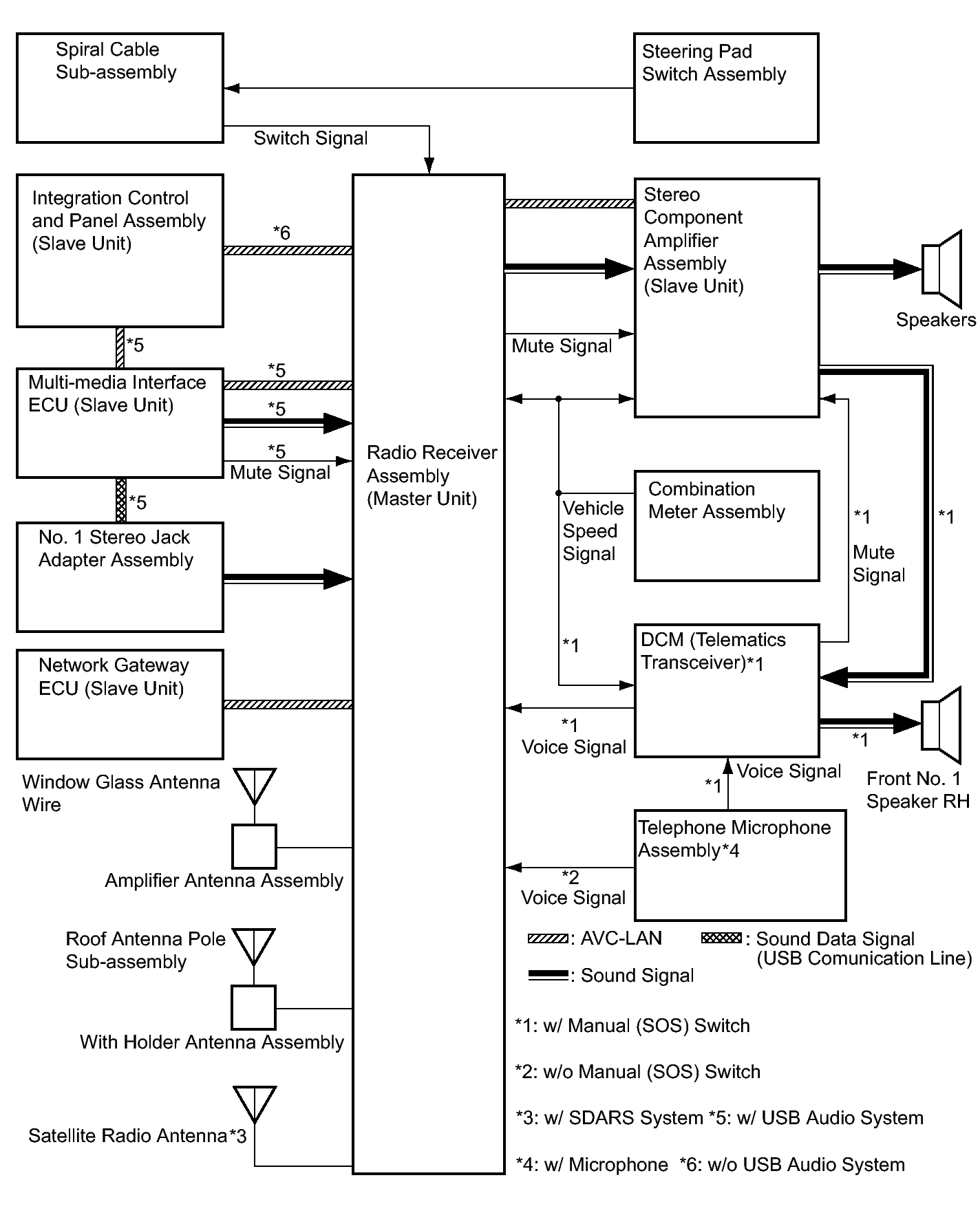

Fig 1: Audio And Visual System Diagram (W/O Navigation System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
