Rear Door LH Entry Unlock Function does not Operate: Procedure

1. When the master switch assembly's door control switch is operated, check that the locked doors unlock.
   RESULT



   Result	Proceed to
   Door locks operate normally	OK
   Door locks do not operate normally	NG

NG → See step   10

OK: Go to next step

1. Using the Techstream, read the Data List.
   REAR LEFT DOOR (REAR DOOR ECU LH)



   Tester Display	Measurement Item/Display	Normal Condition
   Lock Position SW	Rear LH side door lock position switch signal / ON or OFF	ON: Rear LH side door is unlocked OFF: Rear LH side door is locked

   OK

   On the screen, item changes between ON and OFF according to above chart.

NG → See step   11

OK: Go to next step

1. Using the Techstream, read the Data List.
   REAR LEFT DOOR (REAR DOOR ECU LH)



   Tester Display	Measurement Item/Display	Normal Condition
   Entry Sensor	Rear LH side door touch sensor / ON or OFF	ON: Rear LH side door sensor is touched OFF: Rear LH side door sensor is not touched

   OK

   On the screen, item changes between ON and OFF according to above chart.

NG → See step   5

OK: Go to next step

1. Replace the rear door ECU LH with a new one or normally functioning one. Refer toCOMPONENTS .
2. Check that the entry function operates normally.

   OK

   Operates normally

NG → REPLACE CERTIFICATION ECU

OK → END (REAR DOOR ECU LH IS DEFECTIVE)

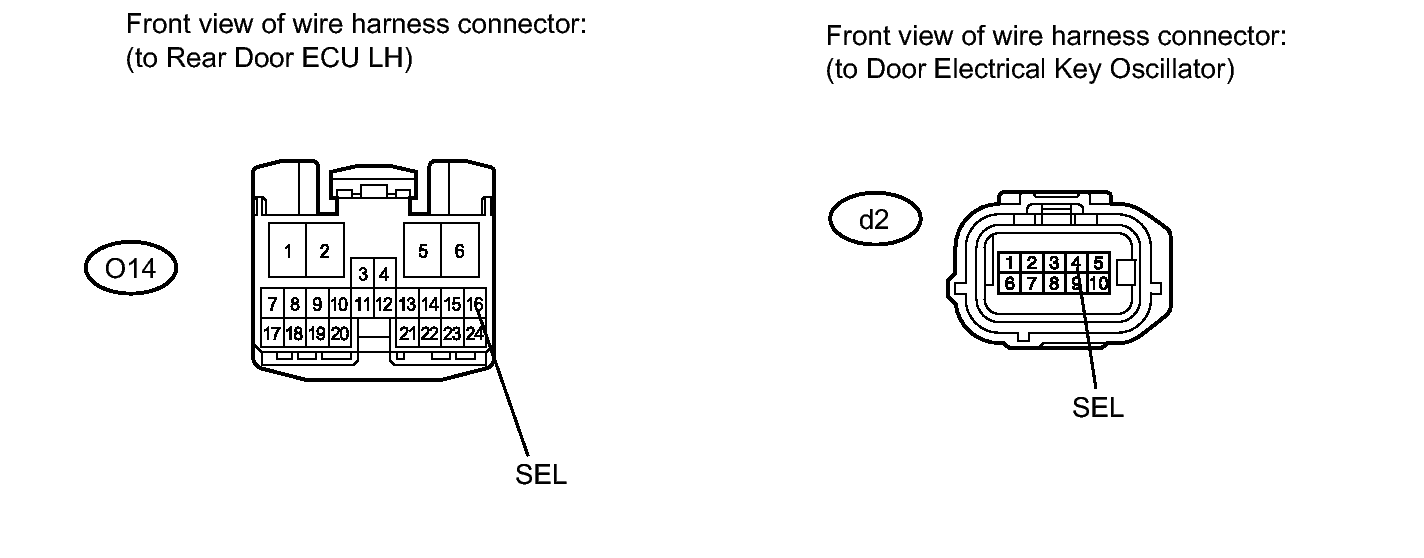

Fig 1: Check Harness And Connector (Door Electrical Key Oscillator - Rear Door LH)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the O14 ECU connector.
2. Disconnect the d2 oscillator connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   O14-16 (SEL) - d2-4 (SEL)	Always	Below 1 Ω
   O14-16 (SEL) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

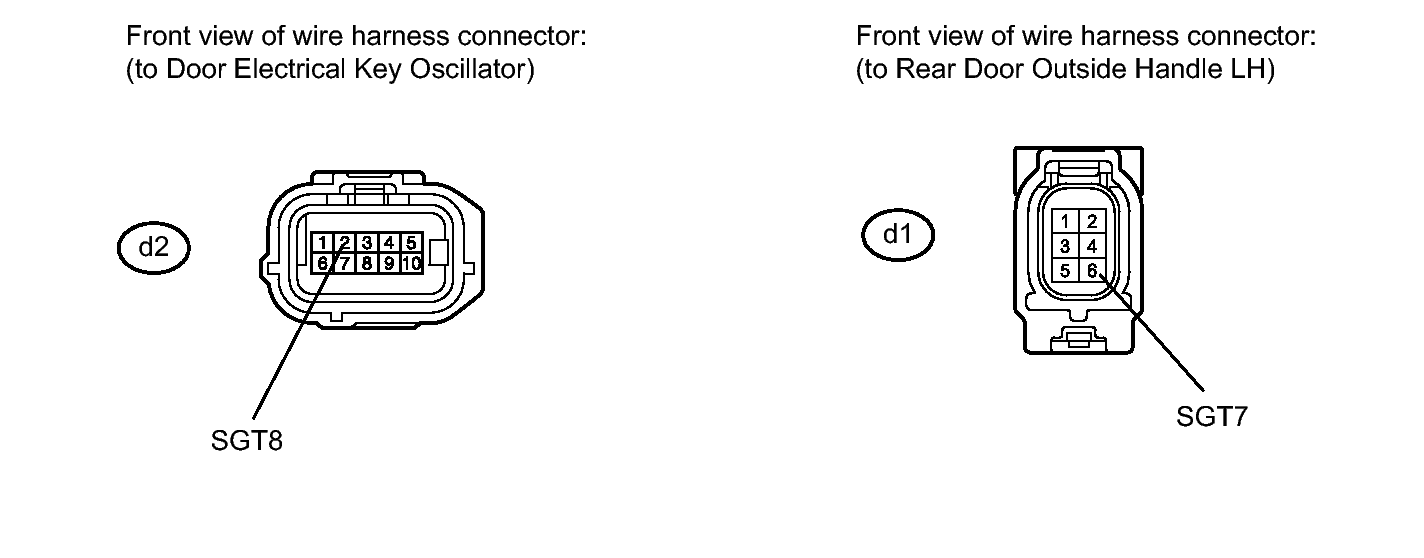

Fig 2: Check Harness And Connector (Door Electrical Key Oscillator - Rear Door Outside Handle LH)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the d2 oscillator connector.
2. Disconnect the d1 handle connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   d2-2 (SGT8) - d1-6 (SGT7)	Always	Below 1 Ω
   d2-2 (SGT8) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Replace the door electrical key oscillator with a new one or normally functioning one. Refer toCOMPONENTS .
2. Check that the entry function operates normally.

   OK

   Operates normally

NG → See step   8

OK → END (DOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

1. Replace the rear door outside handle LH with a new one or normally functioning one. Refer toREMOVAL .
2. Check that the entry function operates normally.

   OK

   Operates normally

NG → See step   9

OK → END (REAR DOOR OUTSIDE HANDLE LH IS DEFECTIVE)

1. Replace the rear door ECU LH with a new one or normally functioning one. Refer toCOMPONENTS .
2. Check that the entry function operates normally.

   OK

   Operates normally

NG → REPLACE CERTIFICATION ECU

OK → END (REAR DOOR ECU LH IS DEFECTIVE)
