DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input): Wiring Diagram

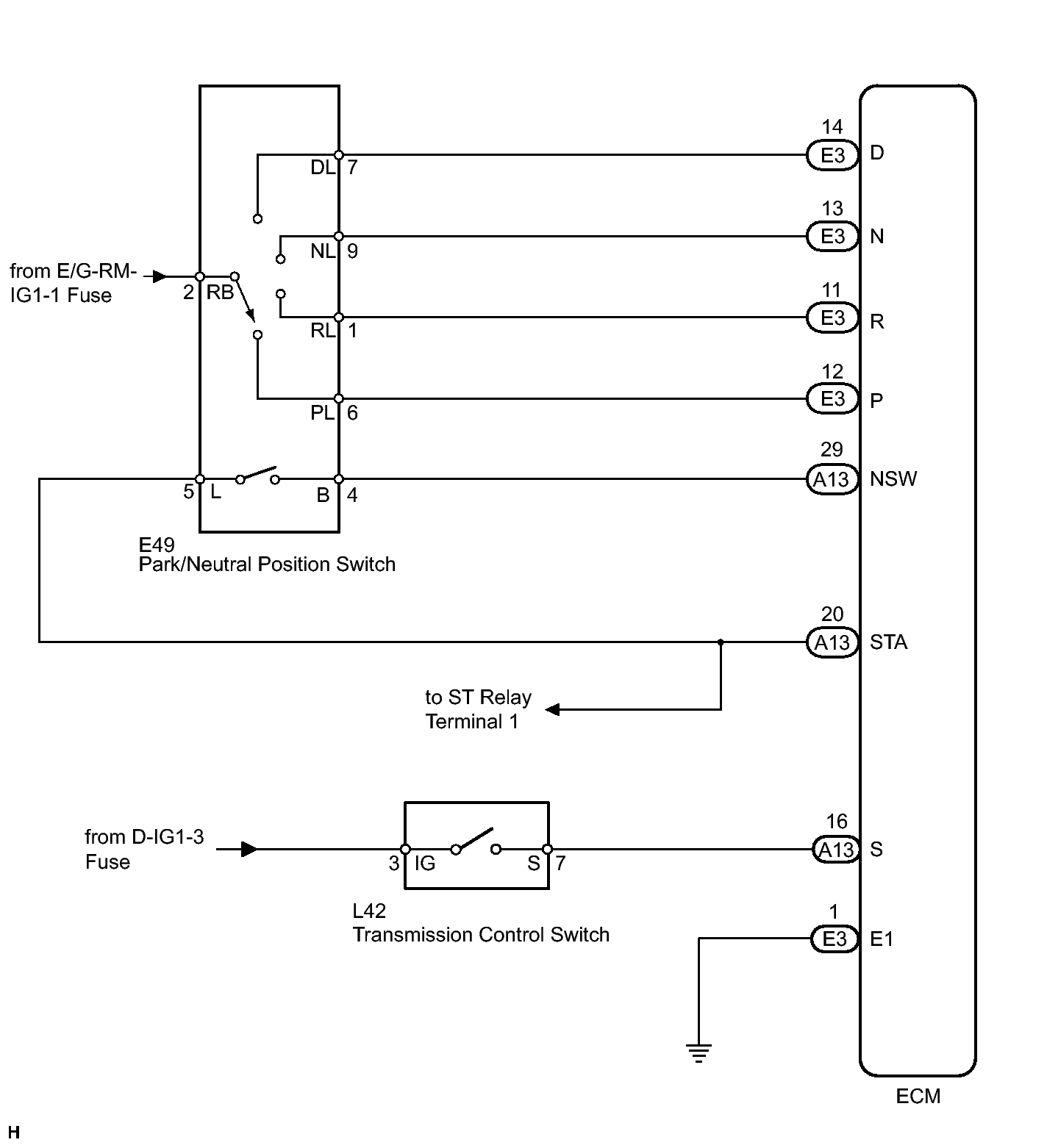

Fig 1: L42 Transmission Control Switch - Wiring Diagram
GTY268501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
