DTC U0123: Lost Communication with Yaw Rate Sensor Module; DTC U0124: Lost Communication with Lateral Acceleration Sensor Module: Wiring Diagram

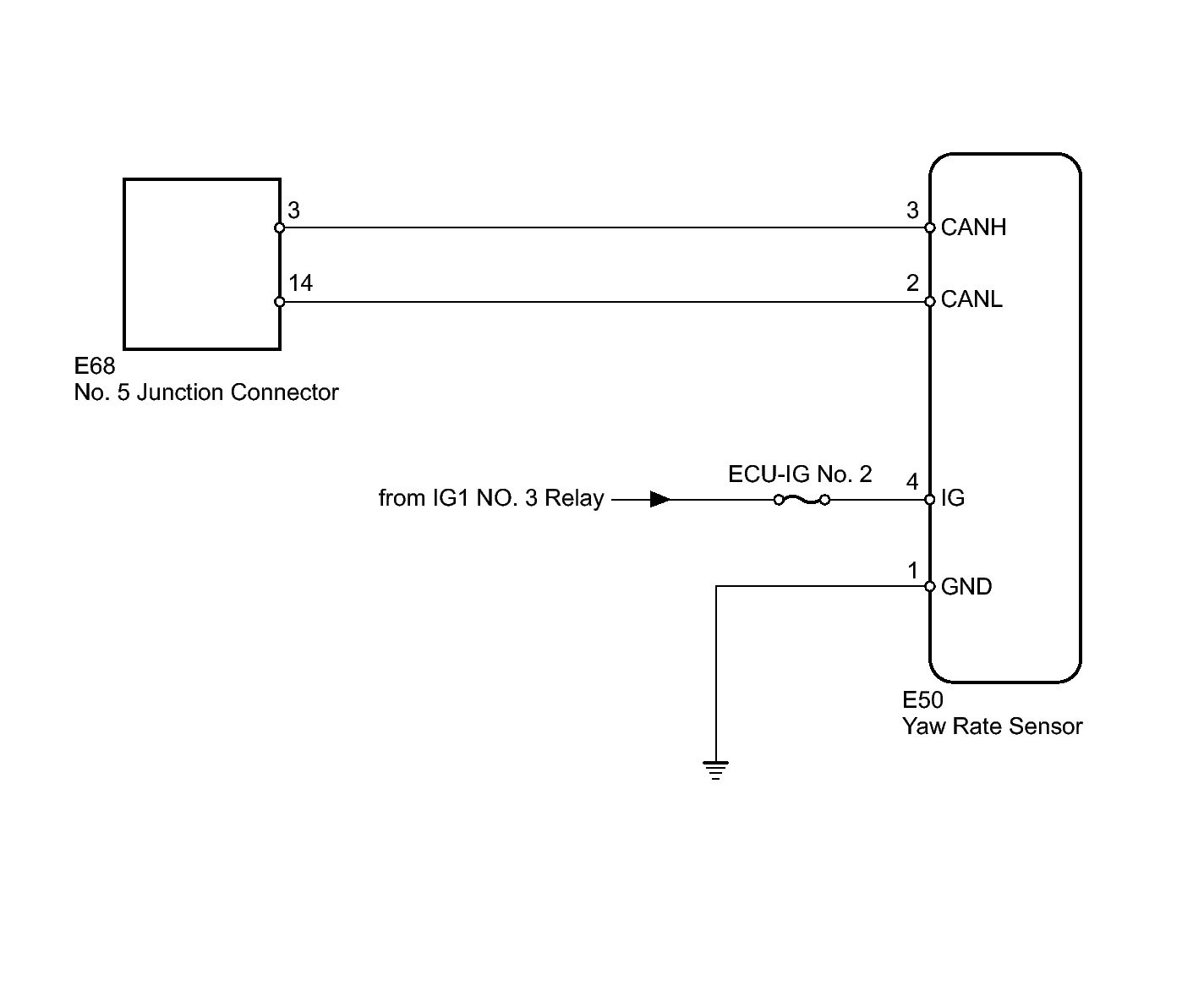

Fig 1: Yaw Rate Sensor Module - Wiring Diagram
GTY136792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
