Display Signal Circuit between Multi-display and Television Camera Assembly: Wiring Diagram

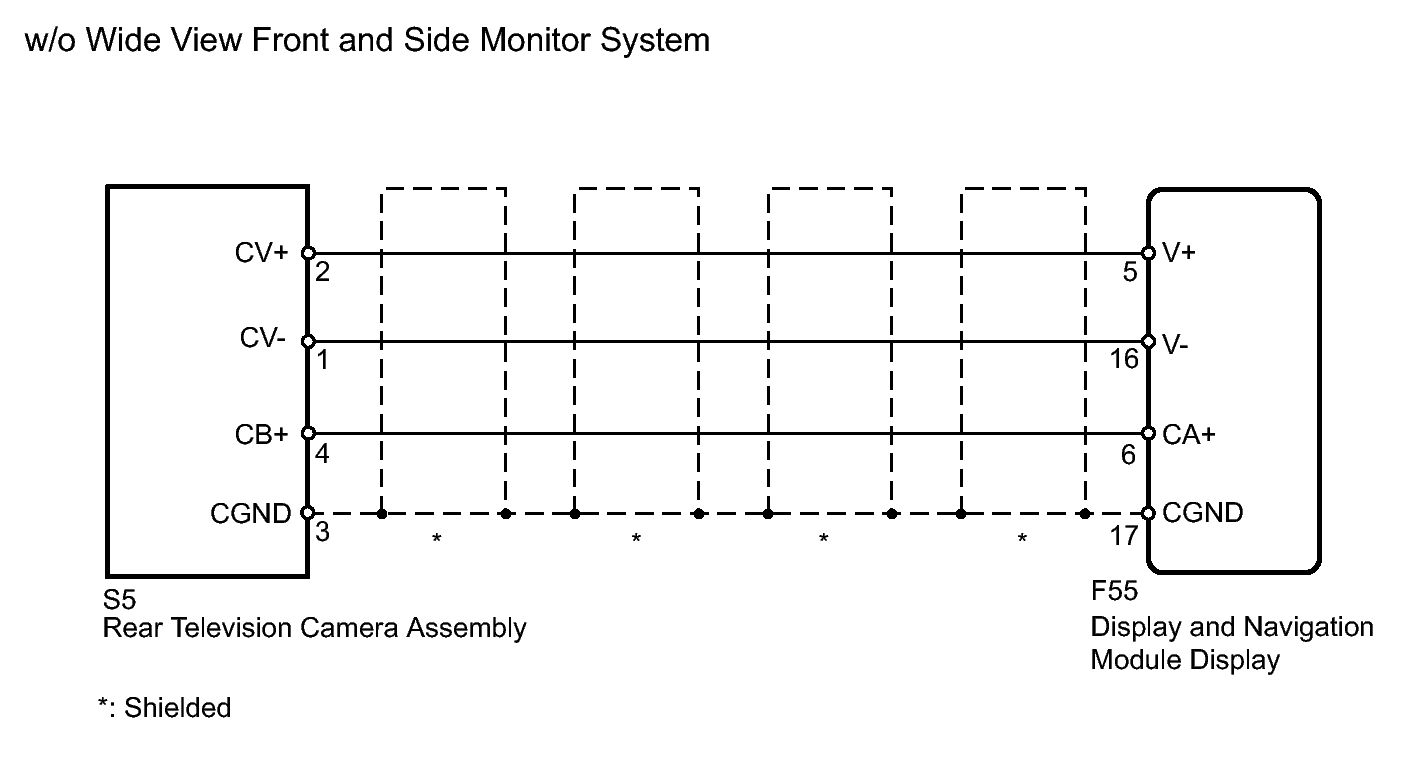

Fig 1: Identifying Display Signal Circuit Between Multi-Display & Television Camera Assembly - Wiring Diagram (1 Of 2)
GTY281403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

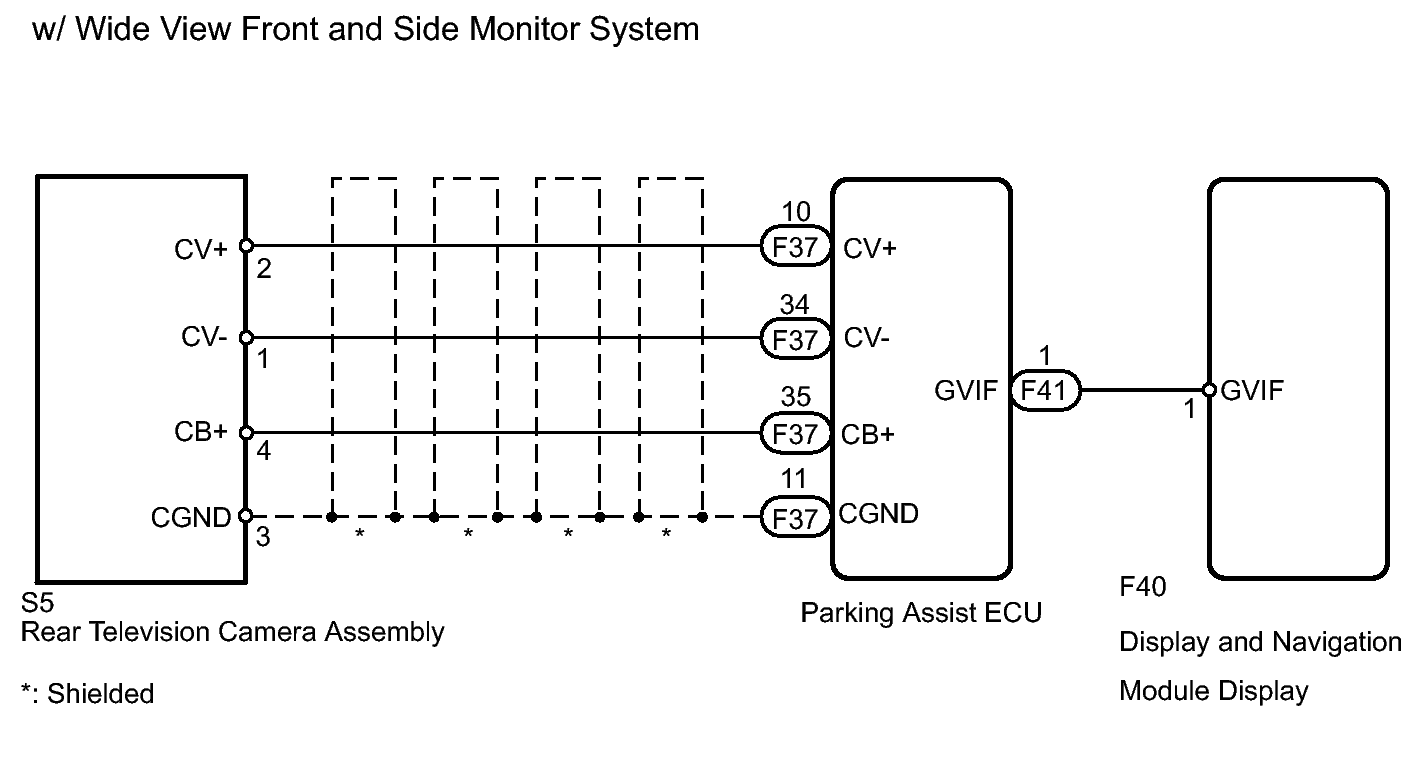

Fig 2: Identifying Display Signal Circuit Between Multi-Display & Television Camera Assembly - Wiring Diagram (2 Of 2)
GTY263414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
