ACIS Control Circuit: Wiring Diagram

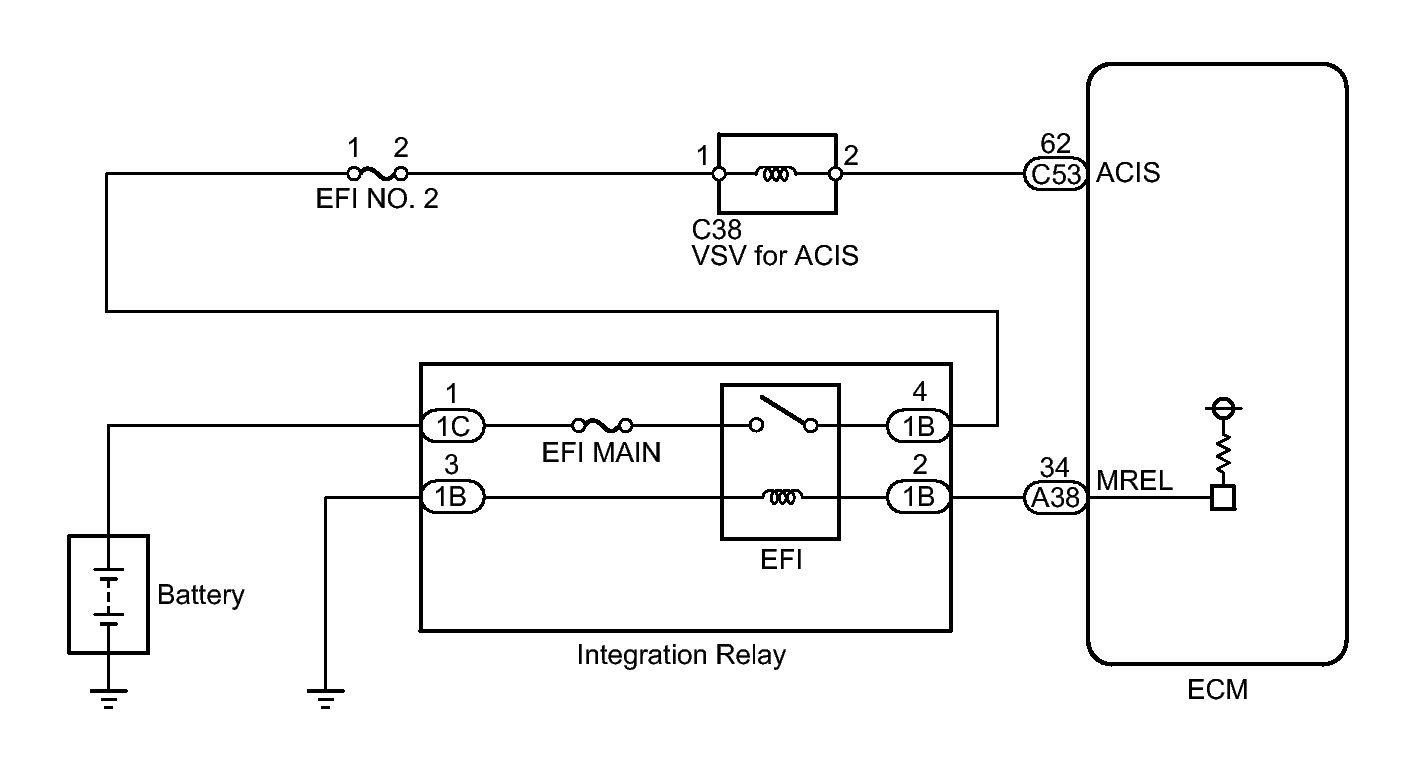

Fig 1: ACIS Control - Wiring Diagram
GTY147986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
