Rear Power Window RH Auto Up / Down Function does not Operate with Rear Power Window Switch RH (TO 08/2009): Wiring Diagram

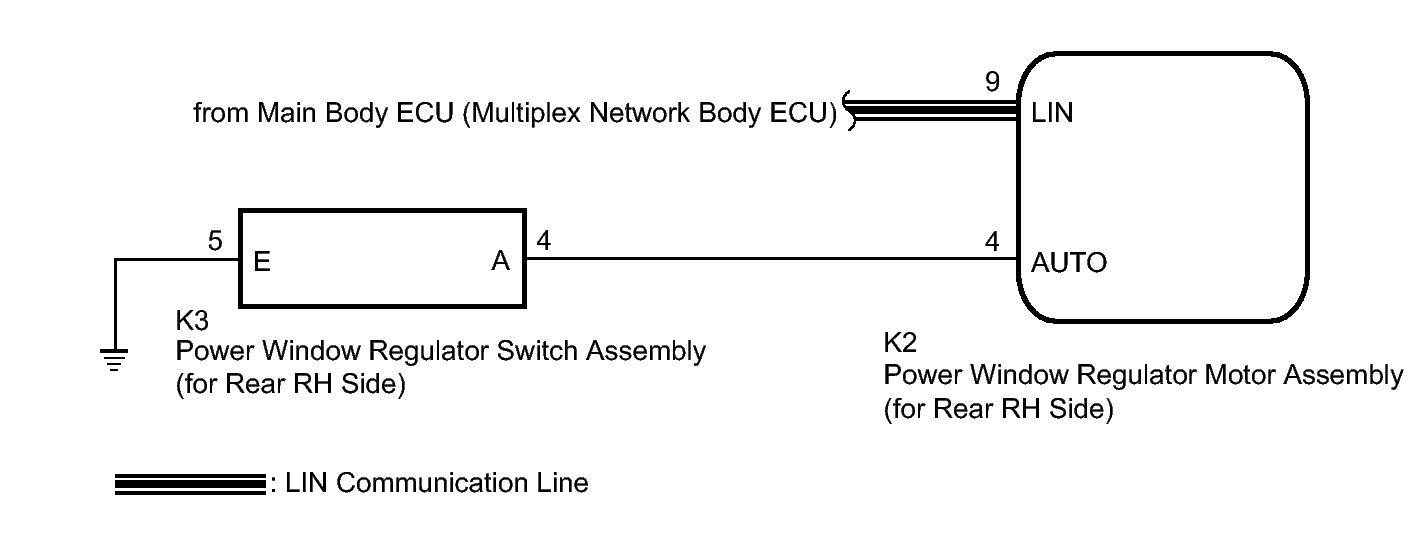

Fig 1: Identifying Rear Power Window RH Auto Up / Down Function Does Not Operate With Rear Power Window Switch RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
