3UZ-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: INSTALLATION

1. INSTALL CRANK POSITION SENSOR

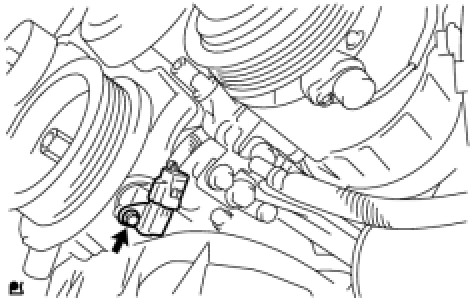

(a) Install the sensor with the bolt.





Torque : 6.5 Nm (66 kgf-cm, 57 in-lbf)

(b) Connect the sensor connector.

2. INSTALL ENGINE UNDER COVER Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

4. PERFORM INITIALIZATION

(a) Perform initialization Testing and Inspection.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
