Audio System (w/ LEXUS Navigation System), LEXUS Navigation System, Parking Assist (Back Guide Monitor or Rear View Monitor w/ LEXUS Navigation System)

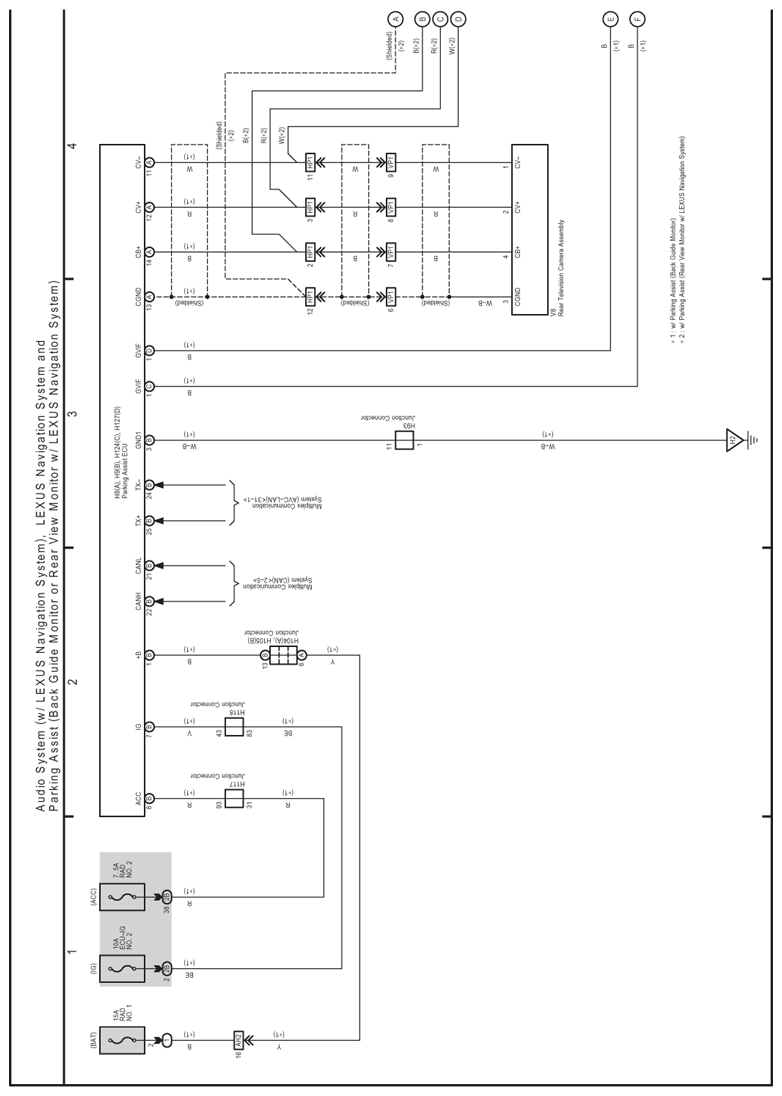

Fig 1: Audio System (W/ Lexus Navigation System), Lexus Navigation System And Parking Assist Electrical Wiring Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

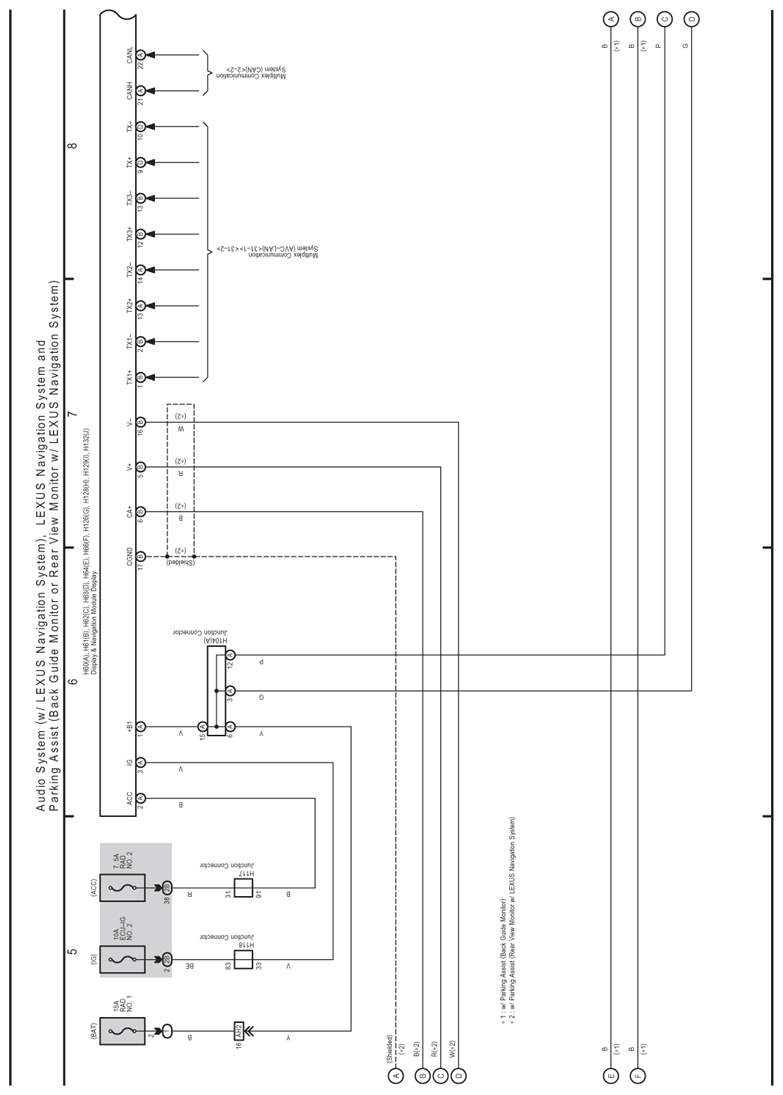

Fig 2: Audio System (W/ Lexus Navigation System), Lexus Navigation System And Parking Assist Electrical Wiring Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

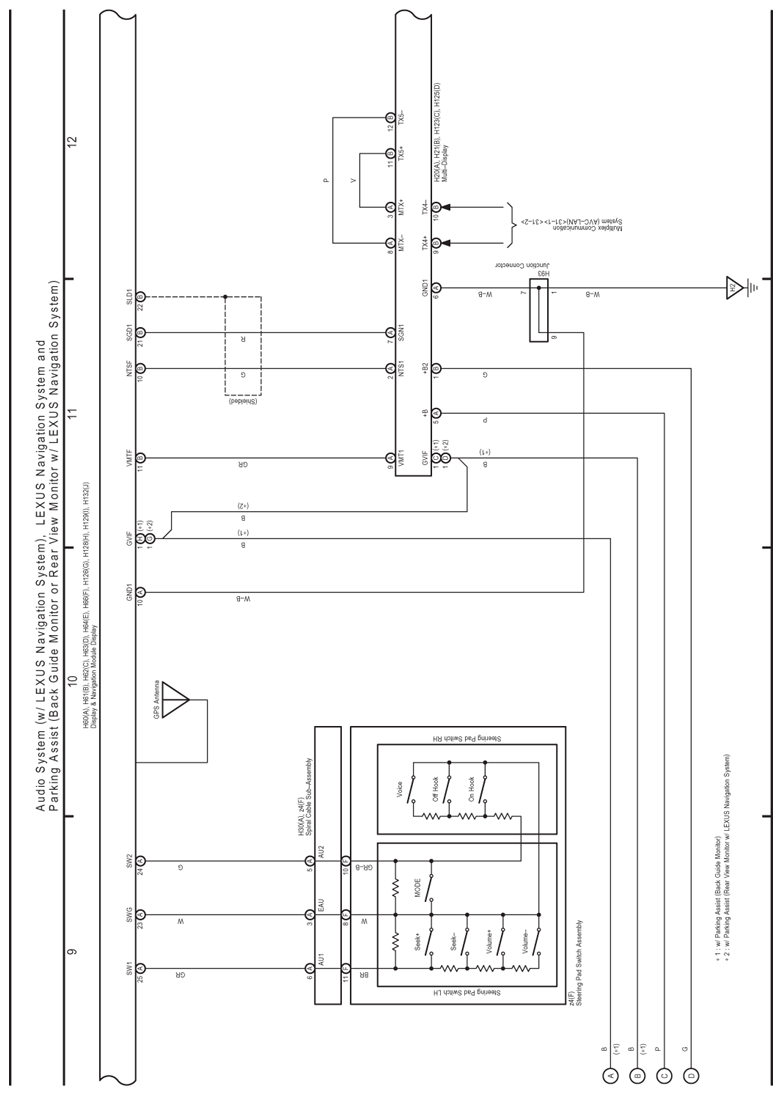

Fig 3: Audio System (W/ Lexus Navigation System), Lexus Navigation System And Parking Assist Electrical Wiring Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Audio System (W/ Lexus Navigation System), Lexus Navigation System And Parking Assist Electrical Wiring Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

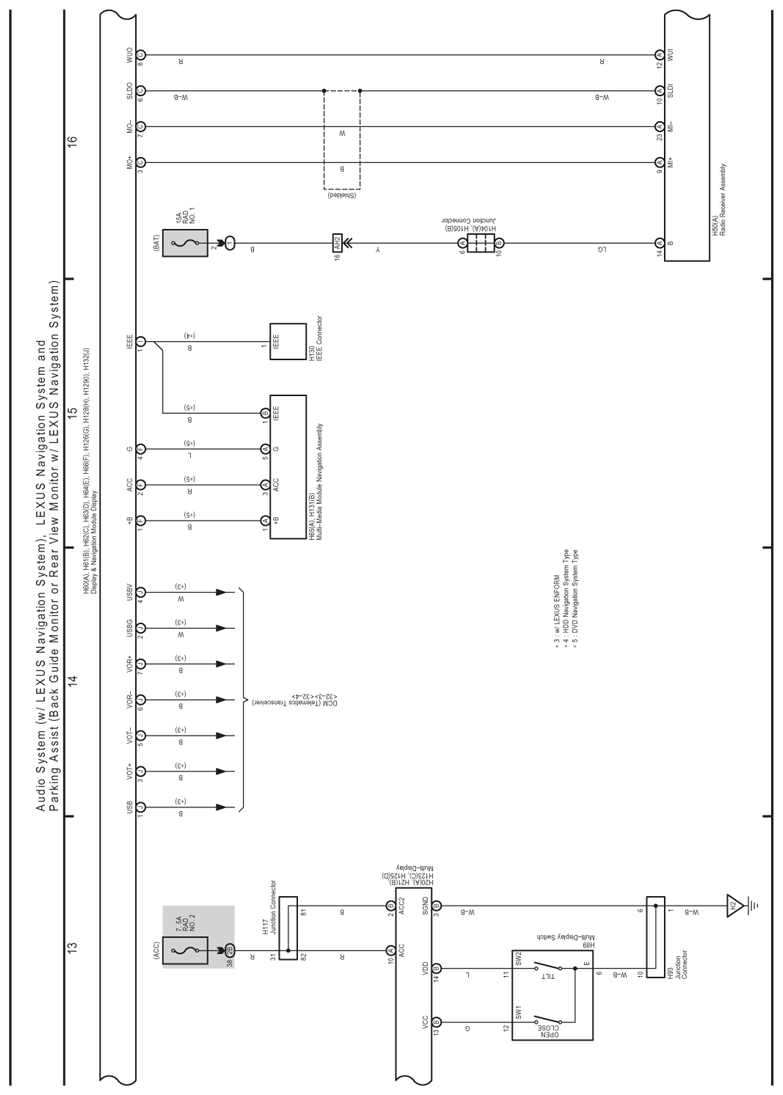

Fig 5: Audio System (W/ Lexus Navigation System), Lexus Navigation System And Parking Assist Electrical Wiring Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

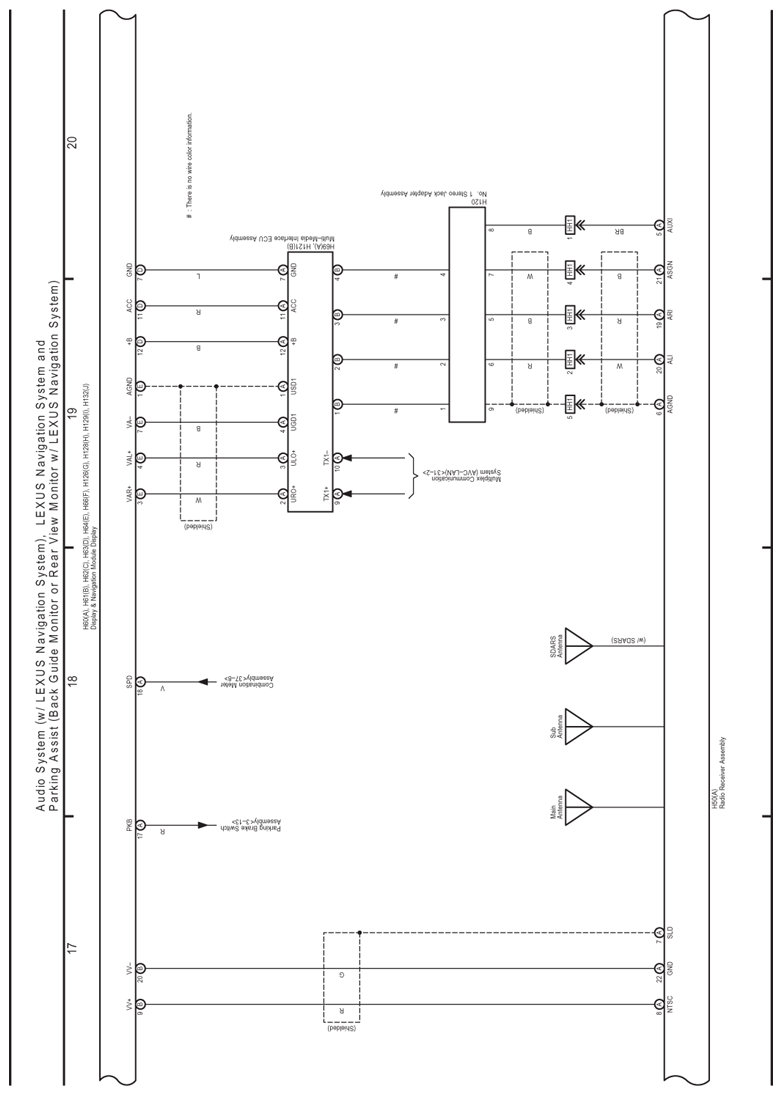

Fig 6: Audio System (W/ Lexus Navigation System), Lexus Navigation System And Parking Assist Electrical Wiring Diagram (6 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

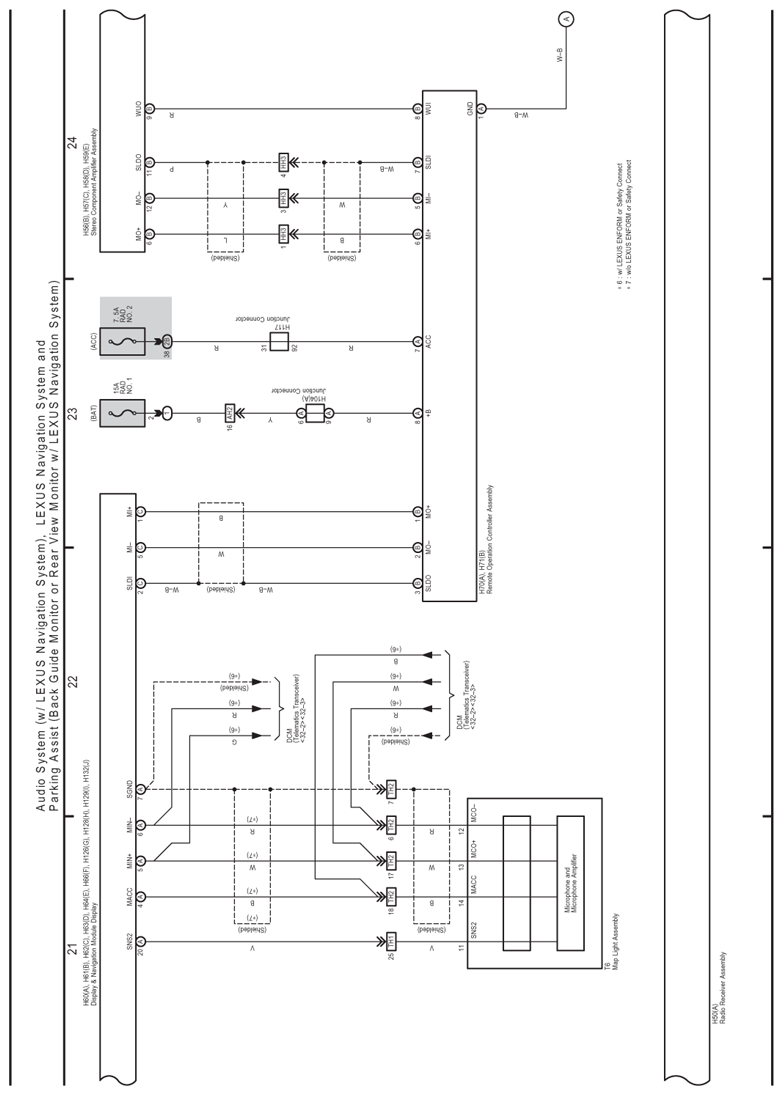

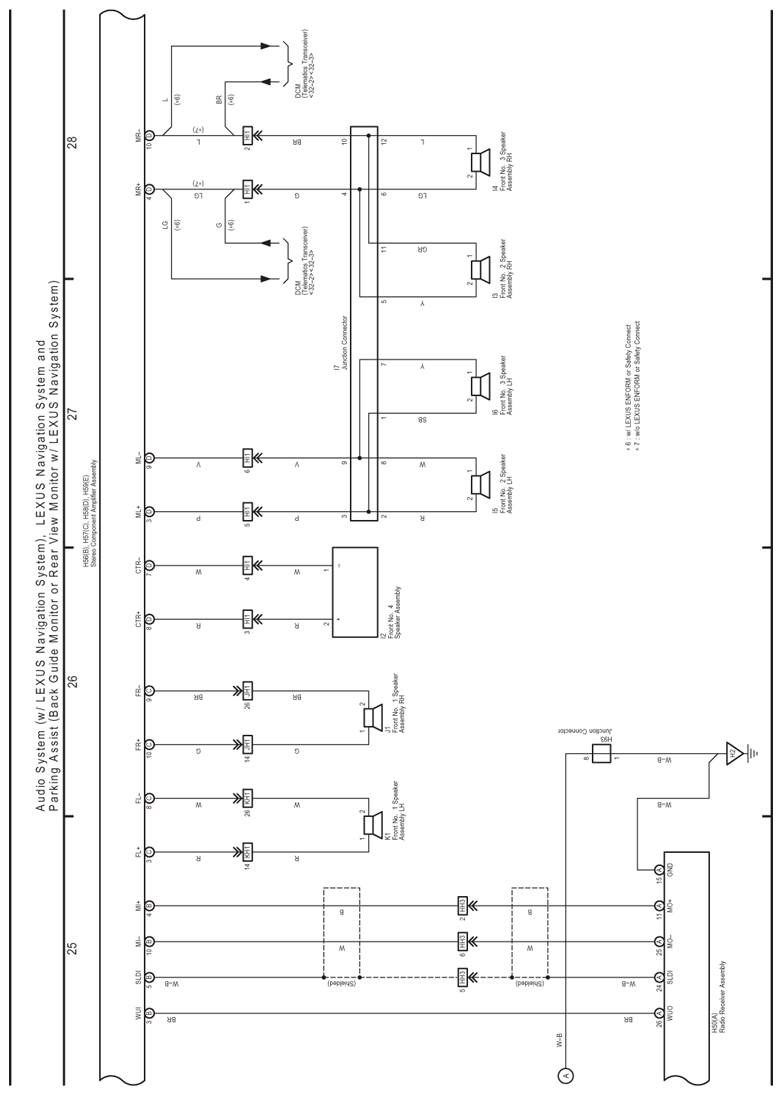

Fig 7: Audio System (W/ Lexus Navigation System), Lexus Navigation System And Parking Assist Electrical Wiring Diagram (7 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

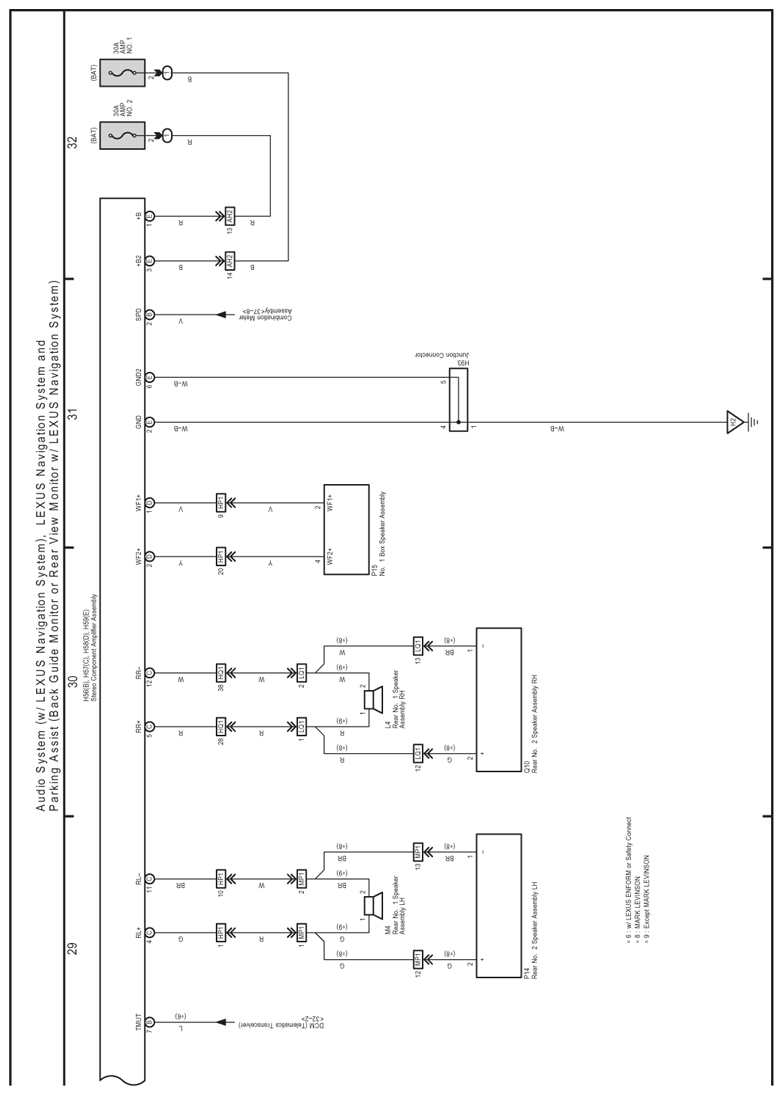

Fig 8: Audio System (W/ Lexus Navigation System), Lexus Navigation System And Parking Assist Electrical Wiring Diagram (8 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
