Audio System (w/o LEXUS Navigation System w/o Stereo Component Amplifier): Notes

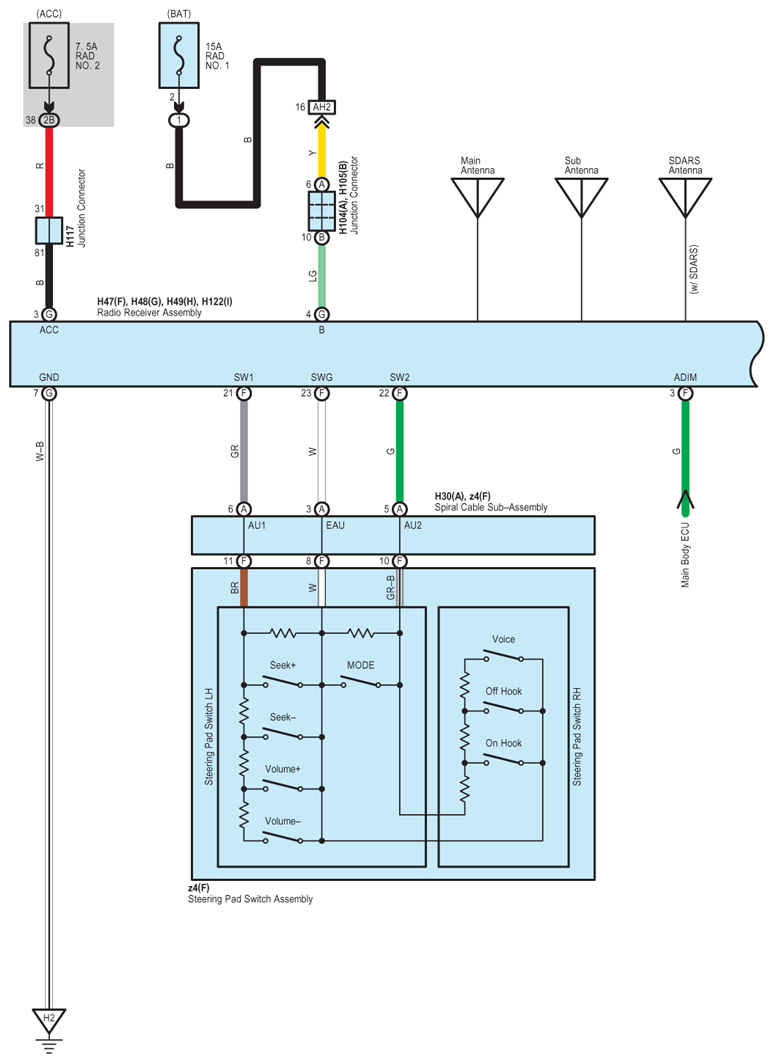

Fig 1: Audio System (W/O Lexus Navigation System W/O Stereo Component Amplifier) - Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

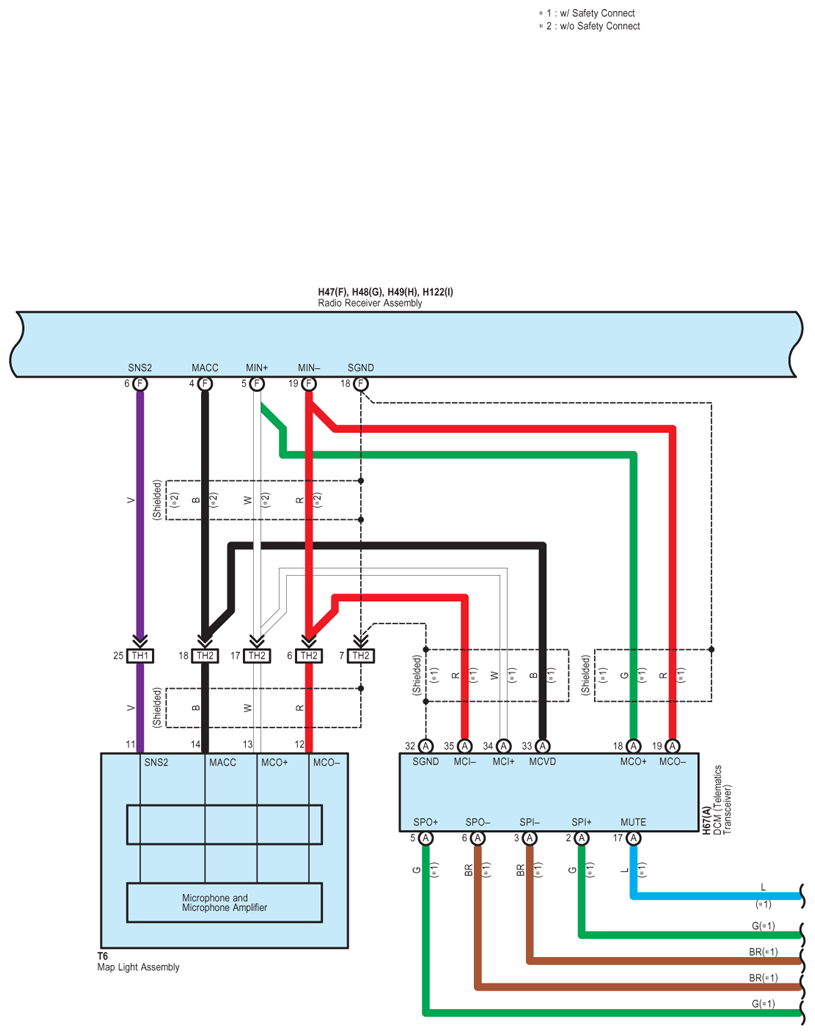

Fig 2: Audio System (W/O Lexus Navigation System W/O Stereo Component Amplifier) - Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

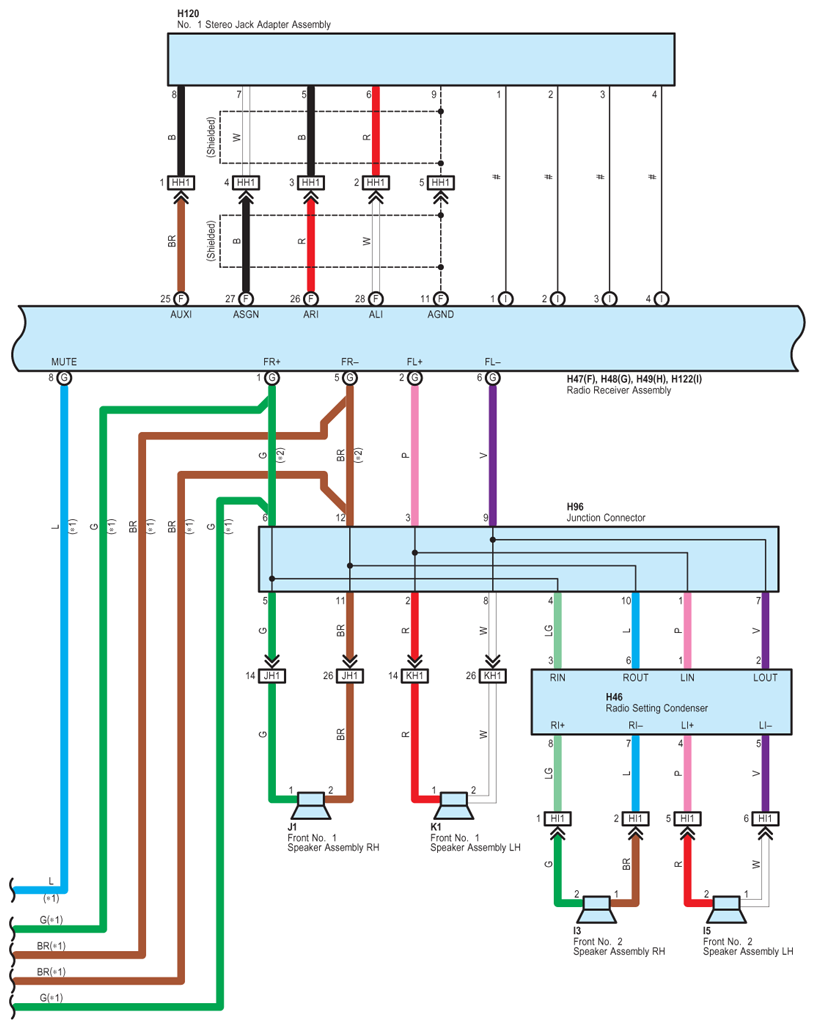

Fig 3: Audio System (W/O Lexus Navigation System W/O Stereo Component Amplifier) - Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

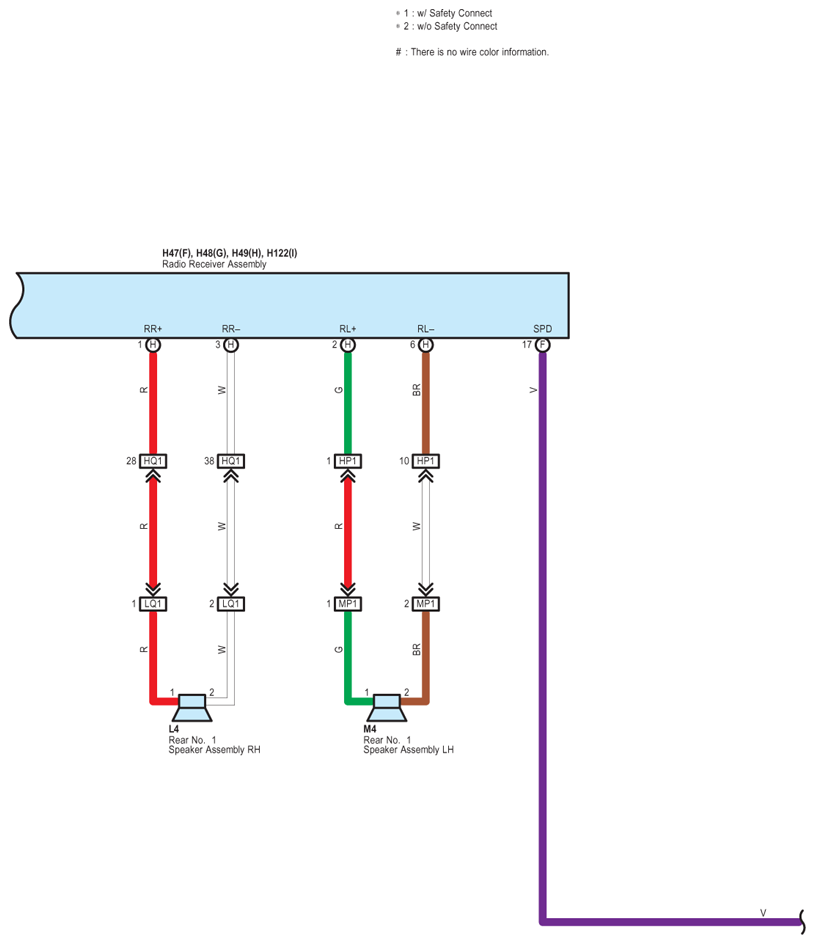

Fig 4: Audio System (W/O Lexus Navigation System W/O Stereo Component Amplifier) - Wiring Diagram (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Audio System (W/O Lexus Navigation System W/O Stereo Component Amplifier) - Wiring Diagram (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
