DTC B1781: Front Occupant Classification Sensor RH Circuit Malfunction: Wiring Diagram

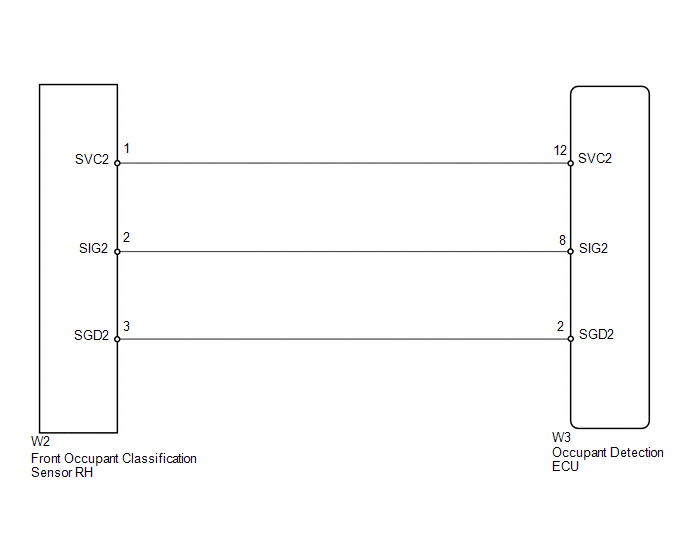

Fig 1: Identifying Occupant Detection ECU Wiring Diagram
GTY357839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
