EFI Relay: Inspection: Inspection

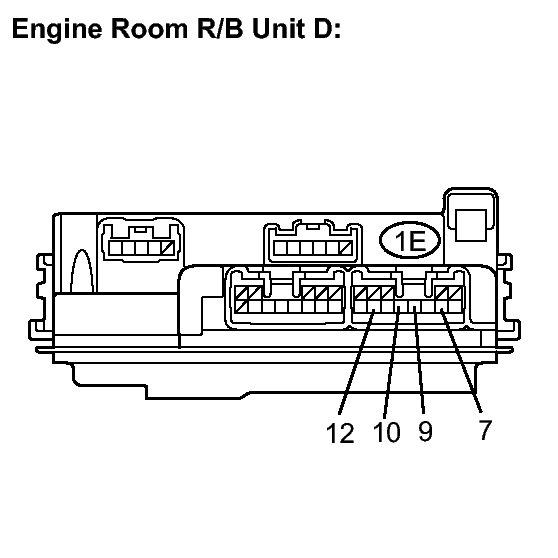

- INSPECT EFI RELAY
- Using an ohmmeter, measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard resistance
| Tester connection |
Specified Condition |
| 1E-7 - 1E-12 |
10 kΩ or higher |
| 1E-7 - 1E-12 |
Below 1 Ω (Battery voltage applied between terminals 1E-9 and 1E-10) |
