Steering Angle Sensor: Components: Illustration

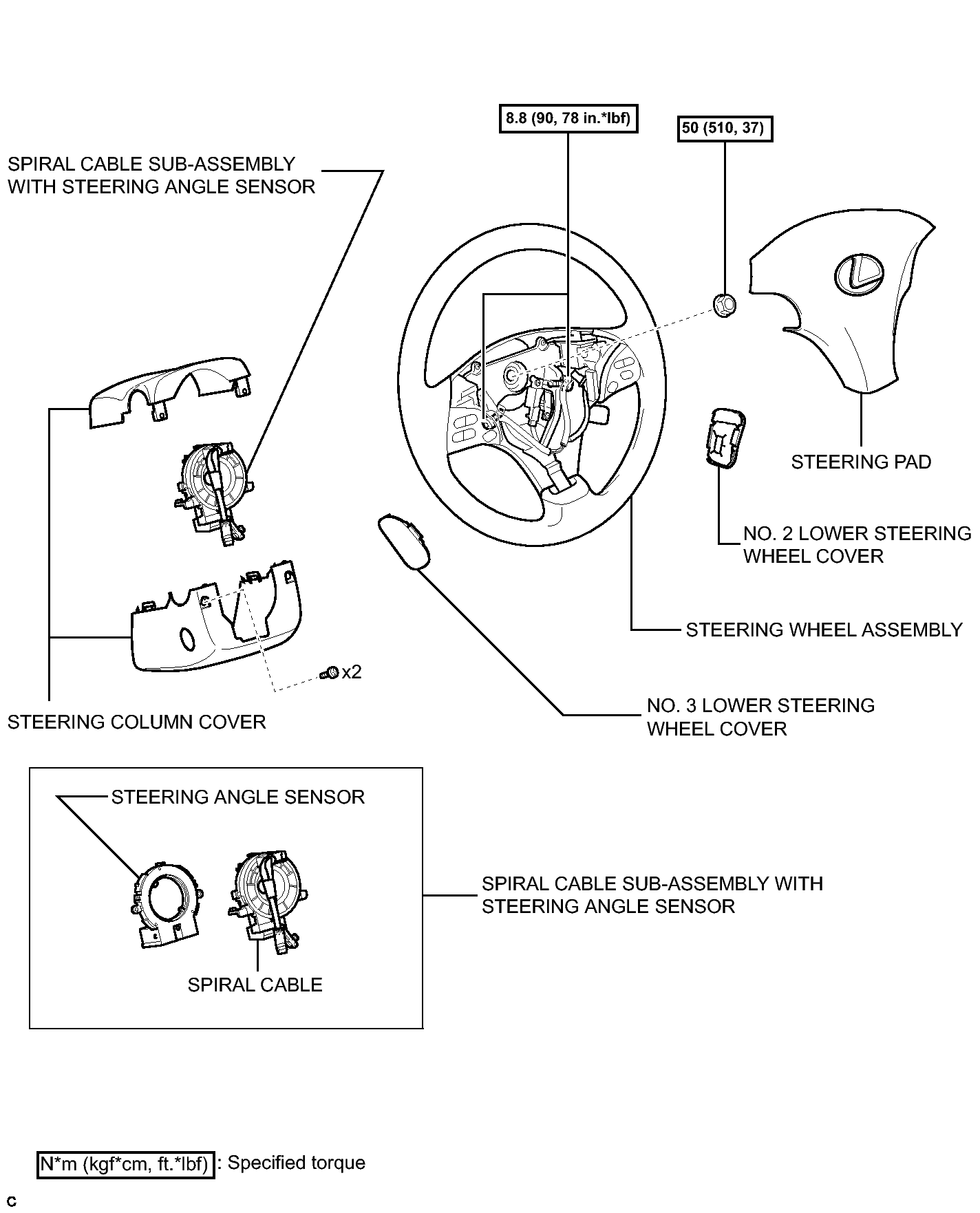

Fig 1: Identifying Steering Angle Sensor Replacement Components With Torque Specifications
GTY111874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
