Push-Button Start, Hybrid Vehicle Immobiliser and Steering Lock: Notes

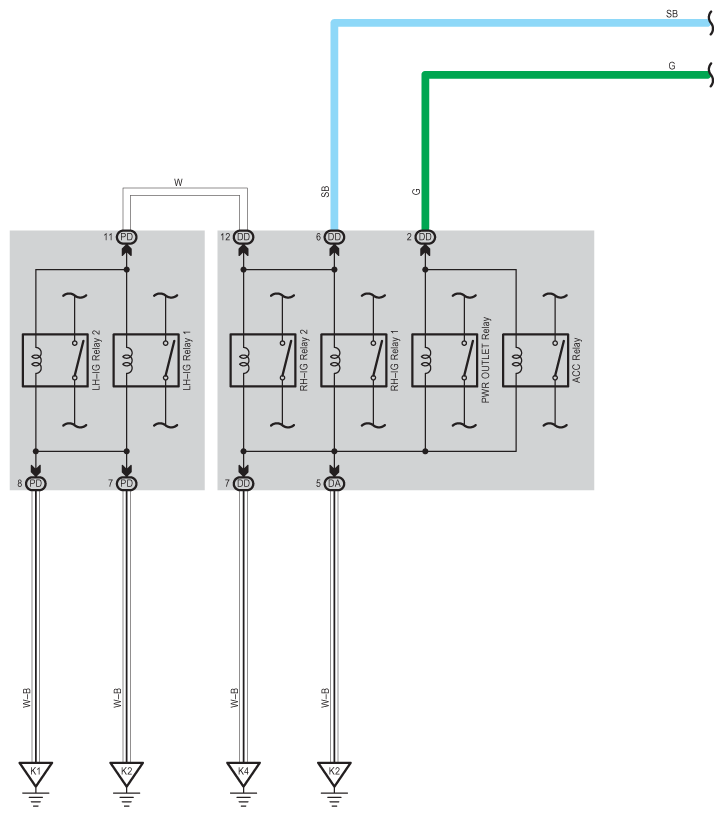

Fig 1: Push-Button Start, Hybrid Vehicle Immobiliser And Steering Lock - Circuit Diagram (1 Of 6)
G07569995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

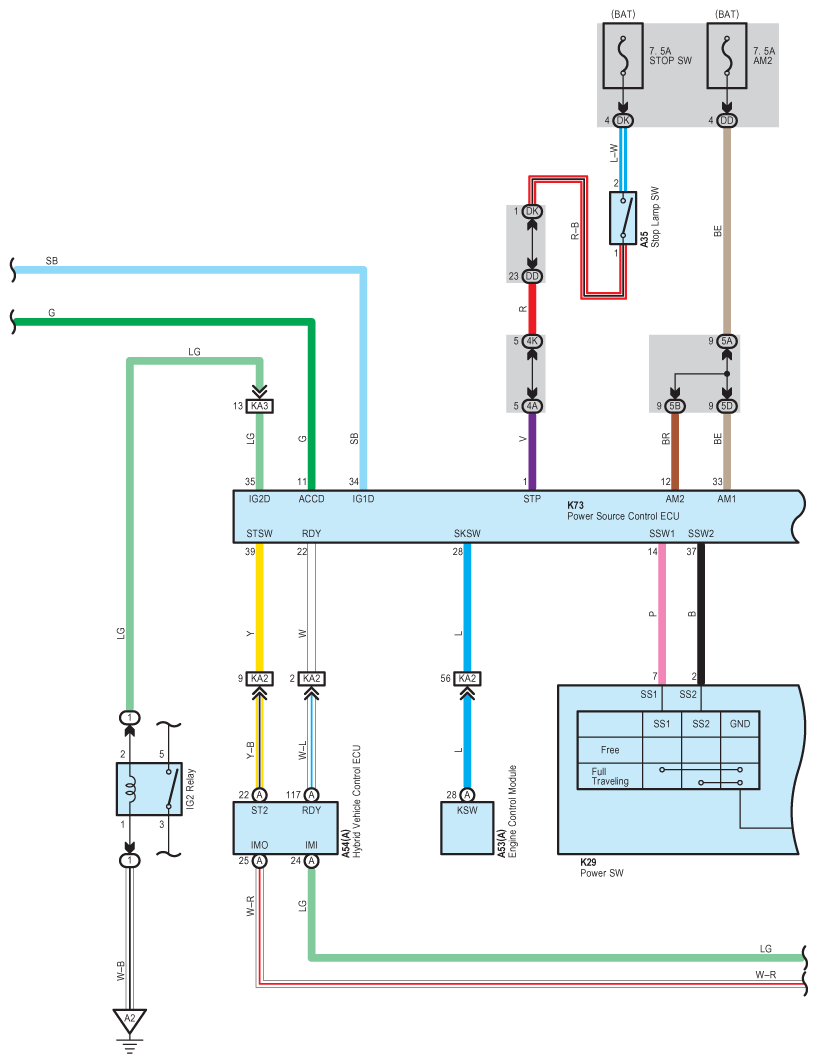

Fig 2: Push-Button Start, Hybrid Vehicle Immobiliser And Steering Lock - Circuit Diagram (2 Of 6)
G07569996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

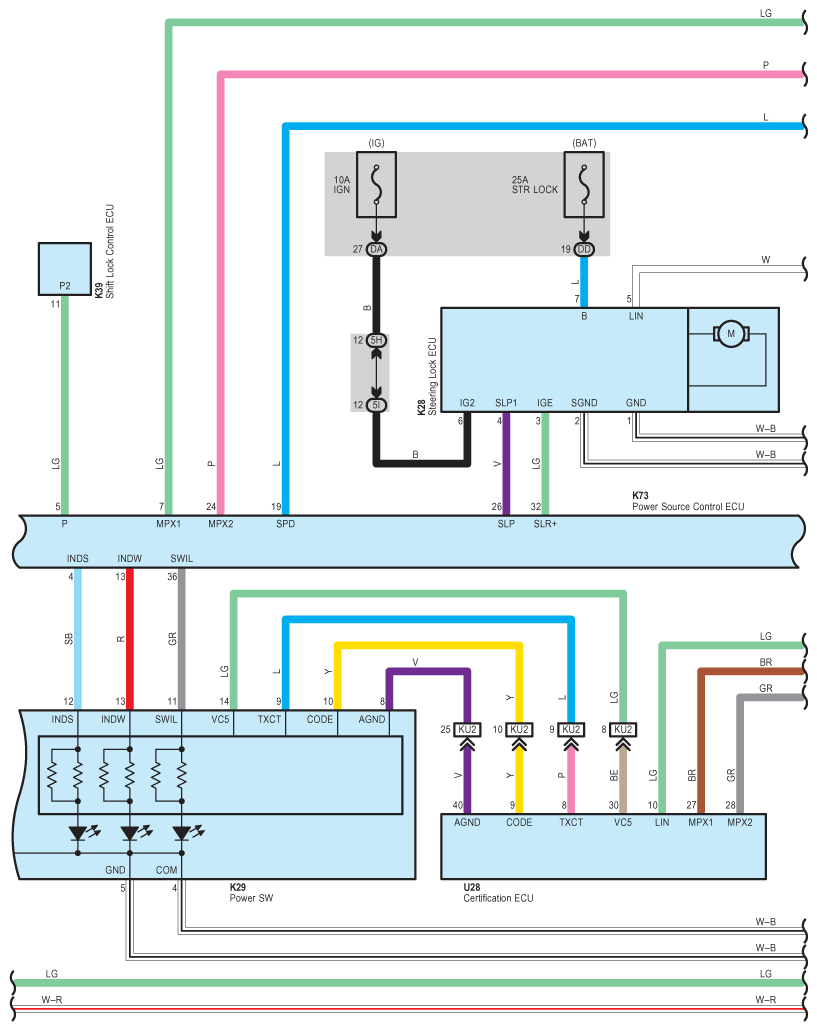

Fig 3: Push-Button Start, Hybrid Vehicle Immobiliser And Steering Lock - Circuit Diagram (3 Of 6)
G07569997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

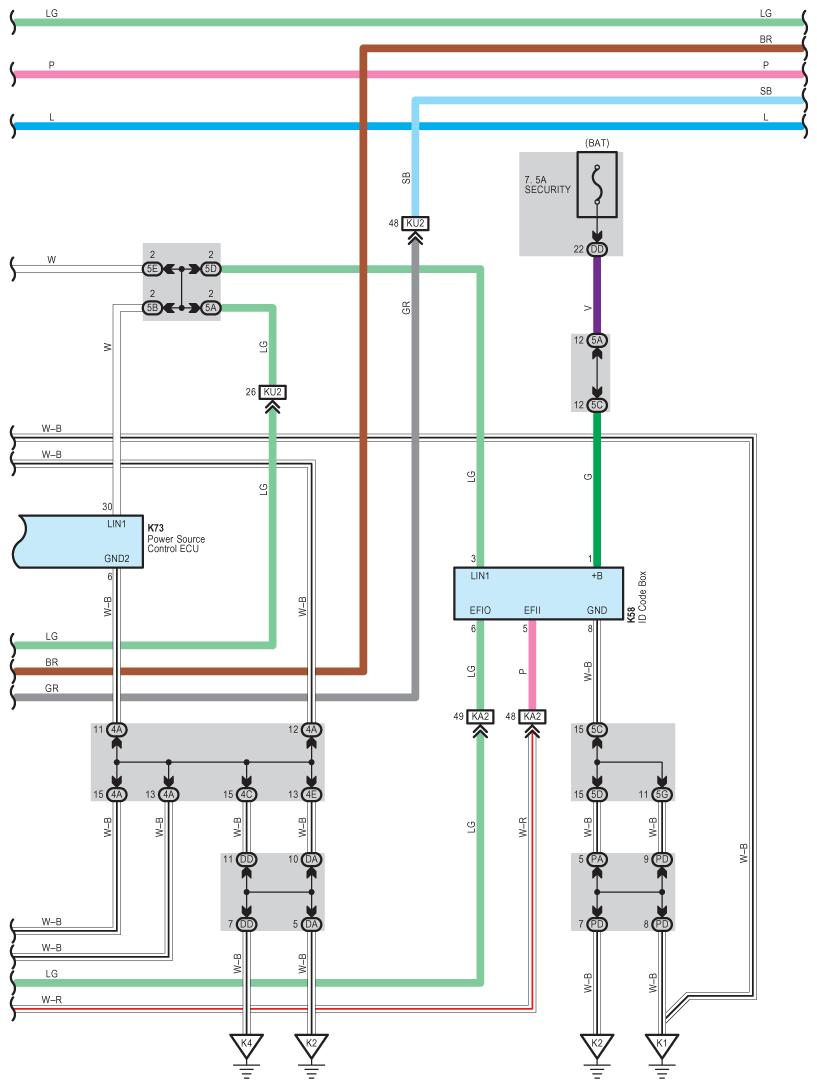

Fig 4: Push-Button Start, Hybrid Vehicle Immobiliser And Steering Lock - Circuit Diagram (4 Of 6)
G07569998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

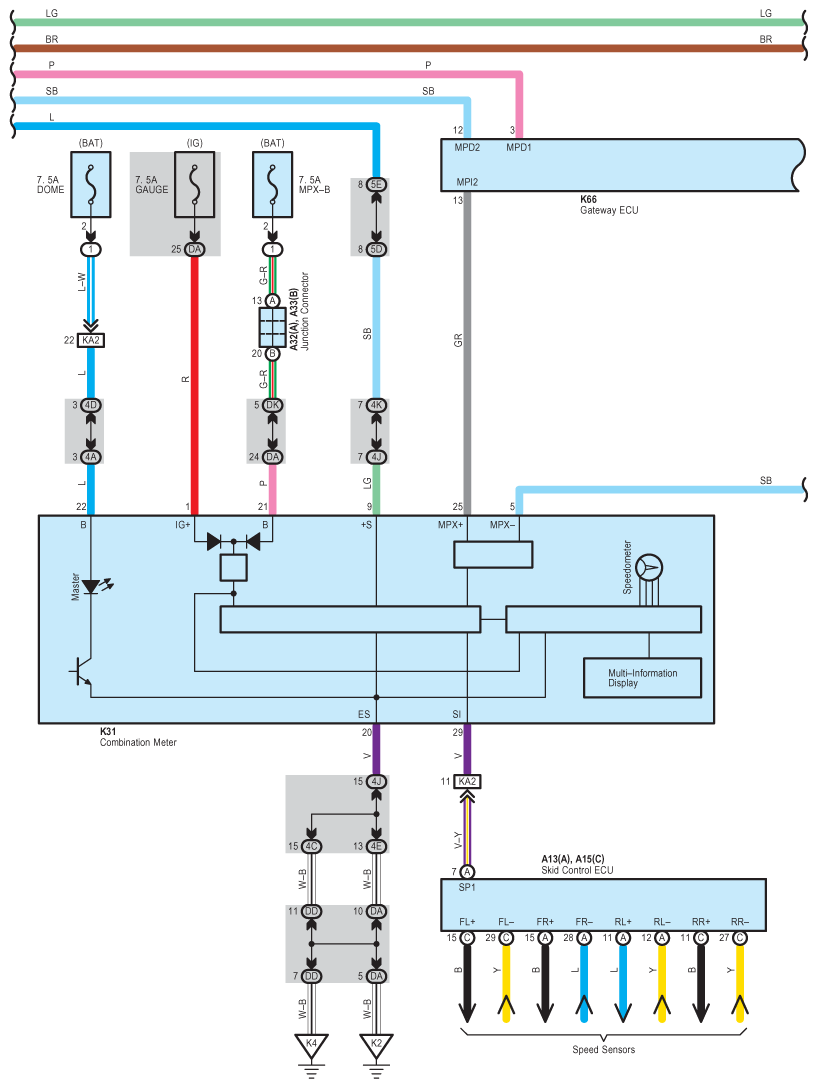

Fig 5: Push-Button Start, Hybrid Vehicle Immobiliser And Steering Lock - Circuit Diagram (5 Of 6)
G07569999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

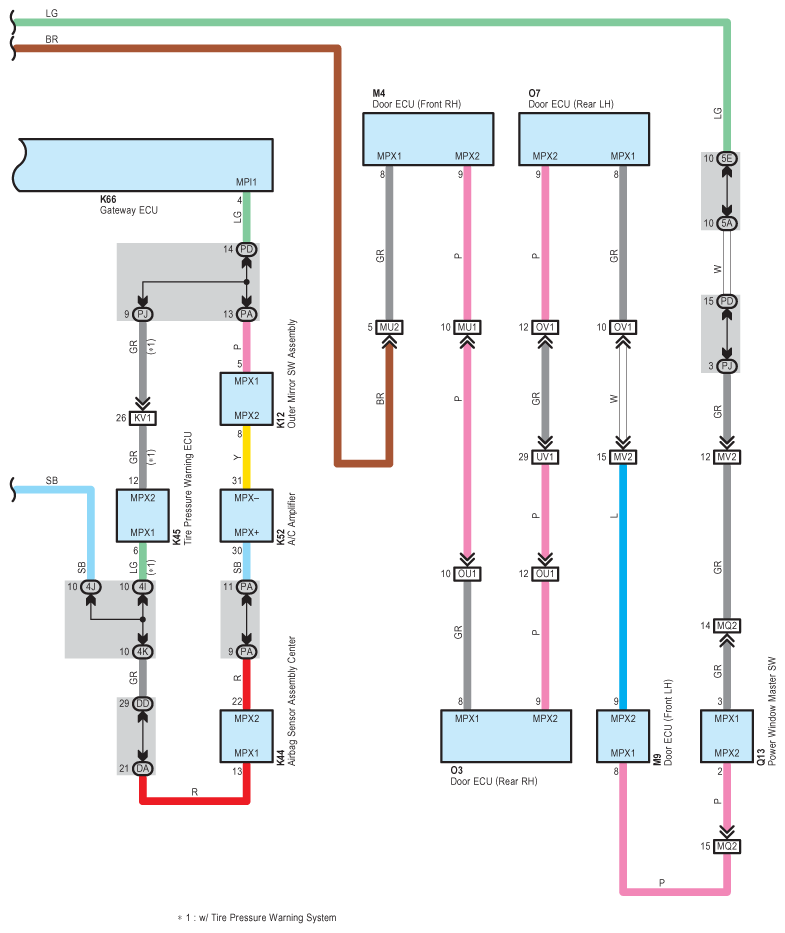

Fig 6: Push-Button Start, Hybrid Vehicle Immobiliser And Steering Lock - Circuit Diagram (6 Of 6)
G07570000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
