Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch: Procedure

CHECK HARNESS AND CONNECTOR (WINDOW SWITCH (PASSENGER SIDE) - MOTOR (PASSENGER SIDE))

Disconnect the Q6 power window switch connector.
Disconnect the M5 motor connector.

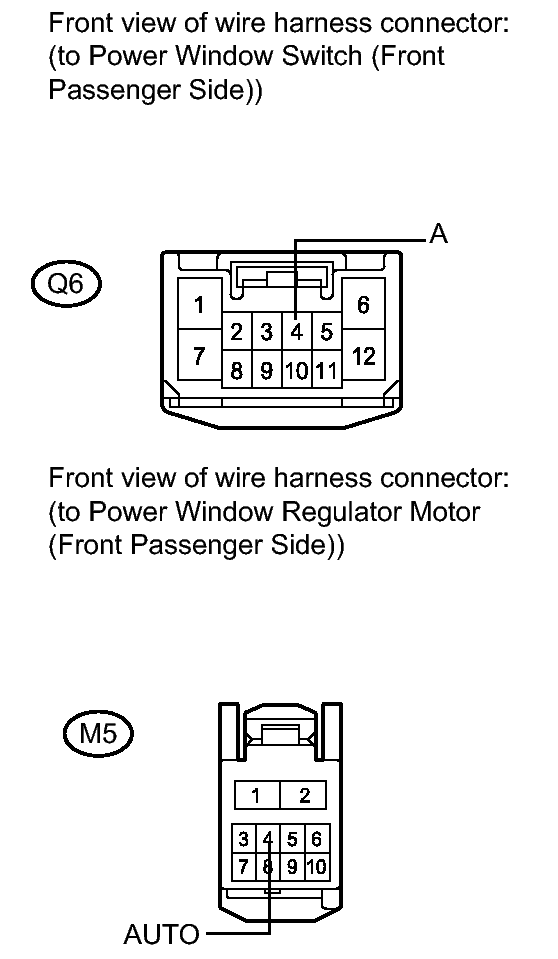

Fig 1: Identifying Q6 Power Window Switch Connector And M5 Motor Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value(s) in the table below.

Standard resistance

Tester Connection	Condition	Specified Condition
Q6-4 (A) - M5-4 (AUTO)	Always	Below 1 Ω
Q6-4 (A) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

INSPECT POWER WINDOW SWITCH (for Front Passenger Side)

Measure the resistance according to the value(s) in the table below.

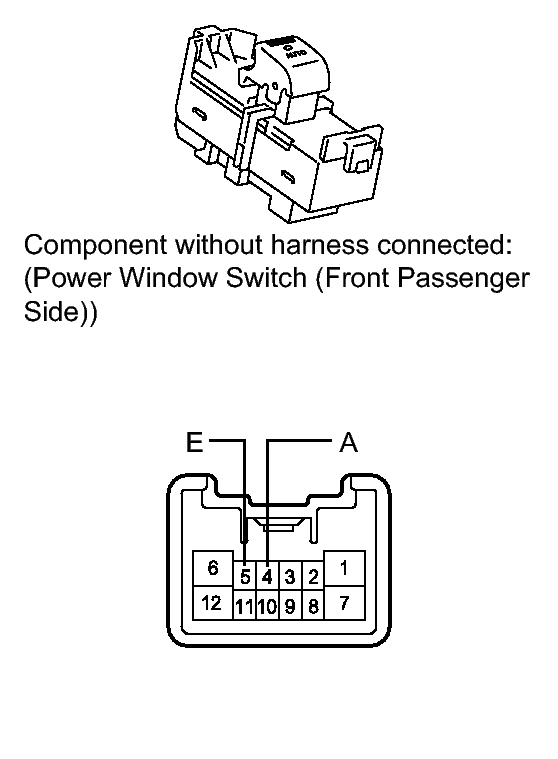

Fig 2: Identifying Power Window Switch (Front Passenger Side) Connector Terminals

Standard resistance

Tester Connection	Switch Condition	Specified Condition
4 (A) - 5 (E)	AUTO UP / DOWN operation	Below 1 Ω

NG → See step 4

OK → See step 3

REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Side). Refer to REMOVAL - Step 20
REPLACE POWER WINDOW SWITCH (for Front Passenger Side). Refer to REMOVAL - Step 9
