View B

WARNING: This page is about a different car, the 2010 Lexus GX 460. However, it is still accessible from the selected car via links, so may be relevant.

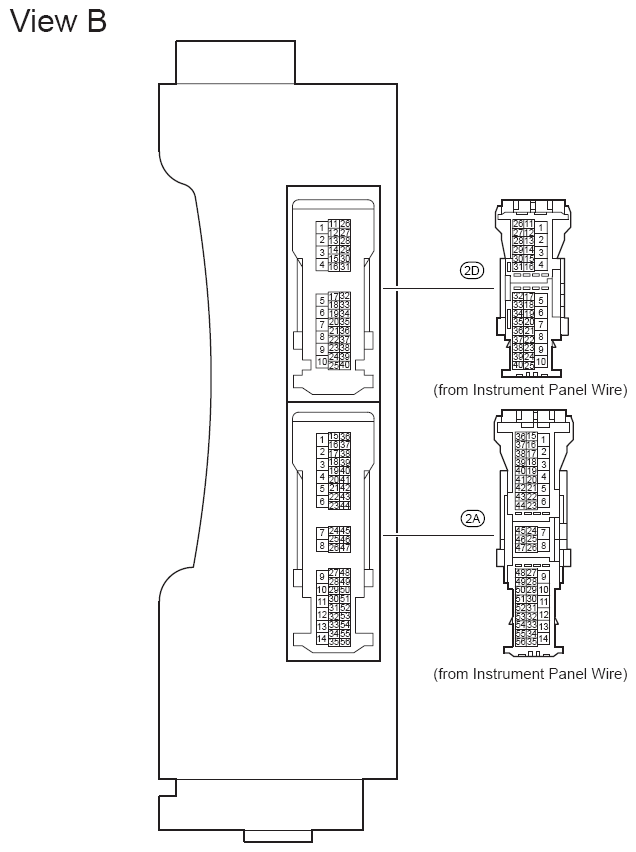

Fig 1: Instrument Panel J/B Assembly - Instrument Panel Reinforcement Connector Locations (View B)
G07579207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
