SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function)
>>
DTC B27A1: Open in Driver Side Electrical Antenna Circuit
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC B27A1: Open in Driver Side Electrical Antenna Circuit: Wiring Diagram

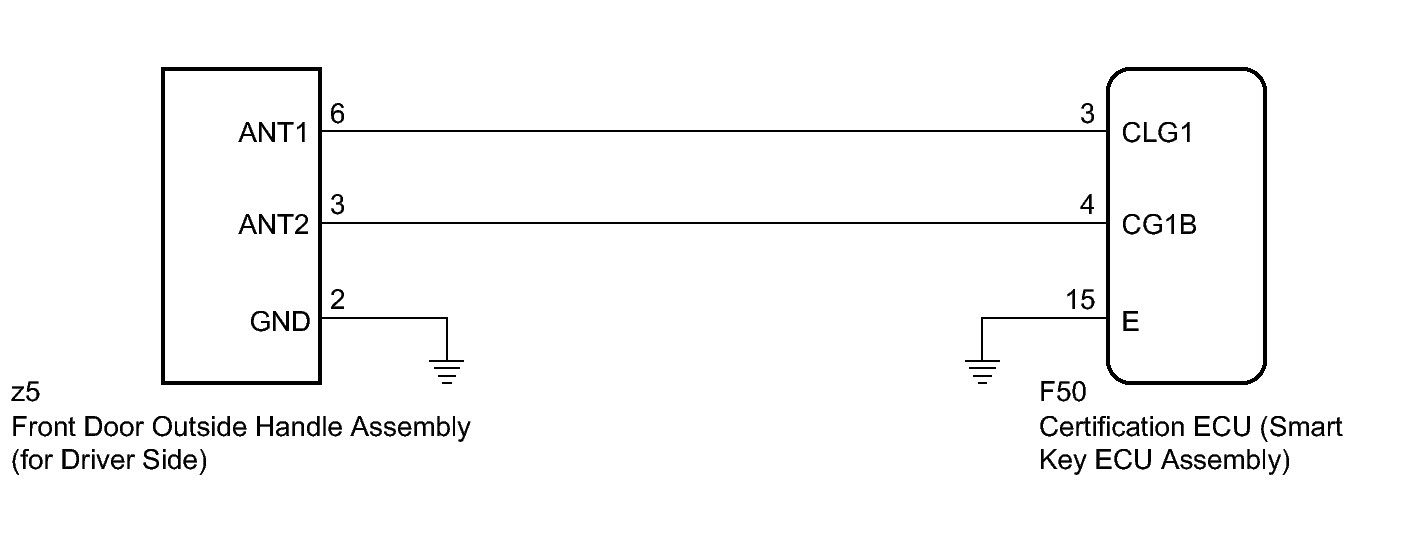

Fig 1: Identifying Front Door Outside Handle Assembly Wiring Diagram (For Driver Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
