DTC B27A7: Open in Inside Luggage Compartment Electrical Key Oscillator Circuit: Wiring Diagram

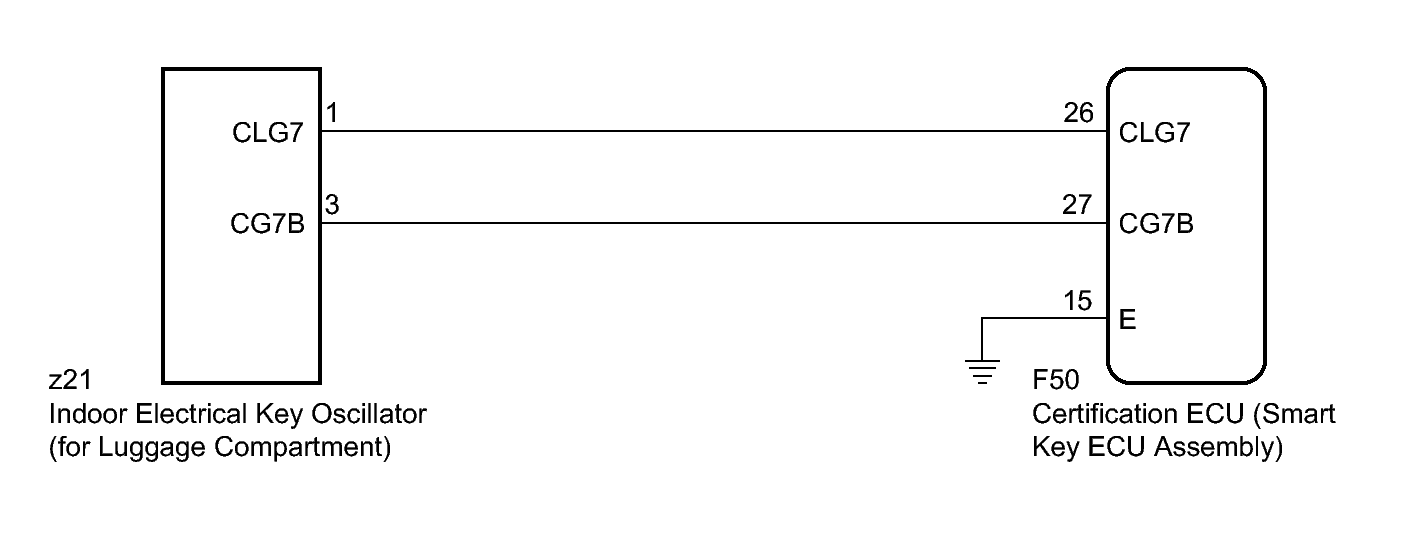

Fig 1: Identifying Certification ECU Wiring Diagram (Smart Key ECU Assembly)
GTY264277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
