System Diagram

  1. DOOR BUS LINES

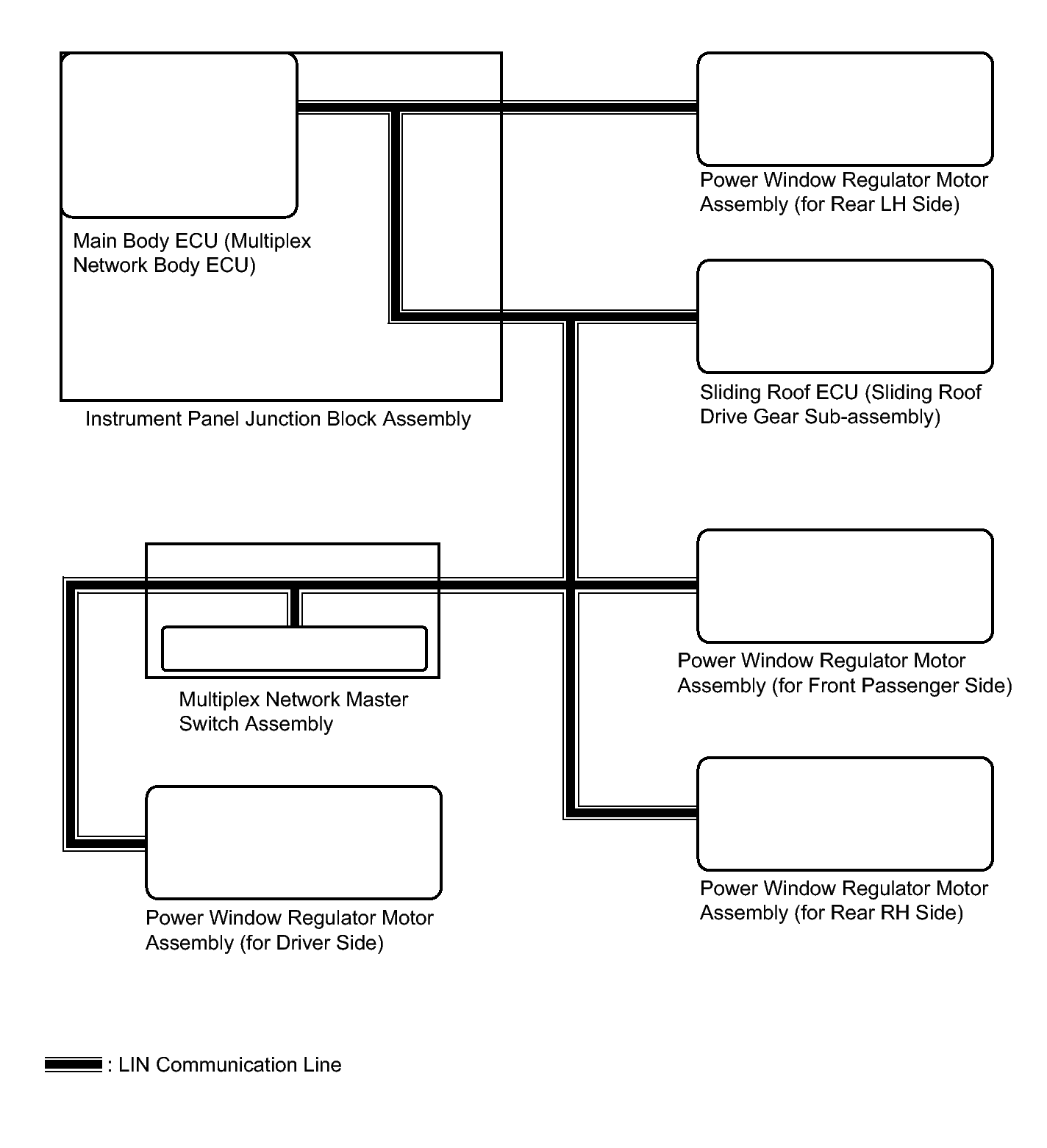

    Fig 1: LIN Communication System Diagram (Door BUS Lines)
    GTY266594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CERTIFICATION BUS LINES

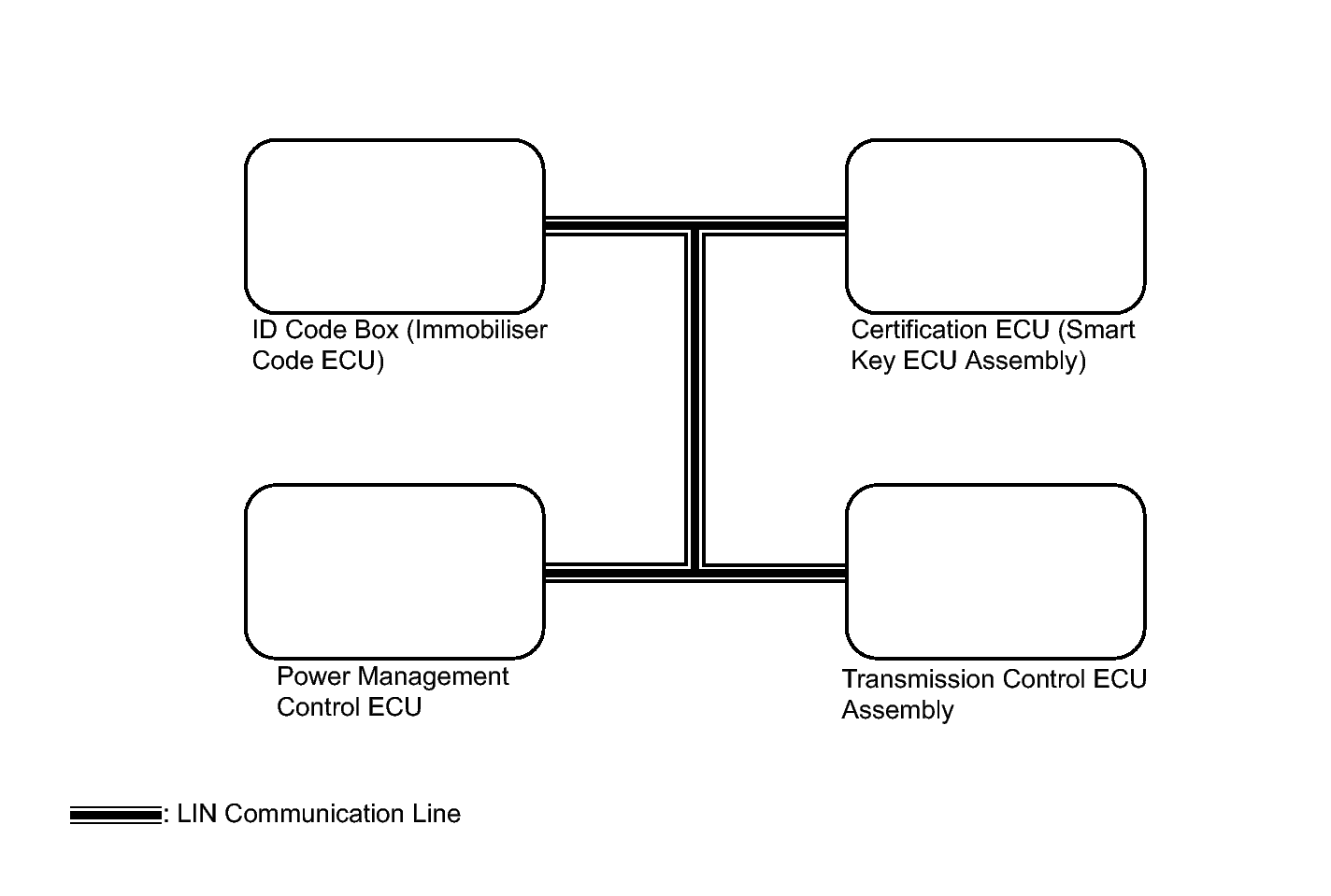

    Fig 2: LIN Communication System Diagram (Certification BUS Lines)
    GTY265635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. AIR CONDITIONING BUS LINES

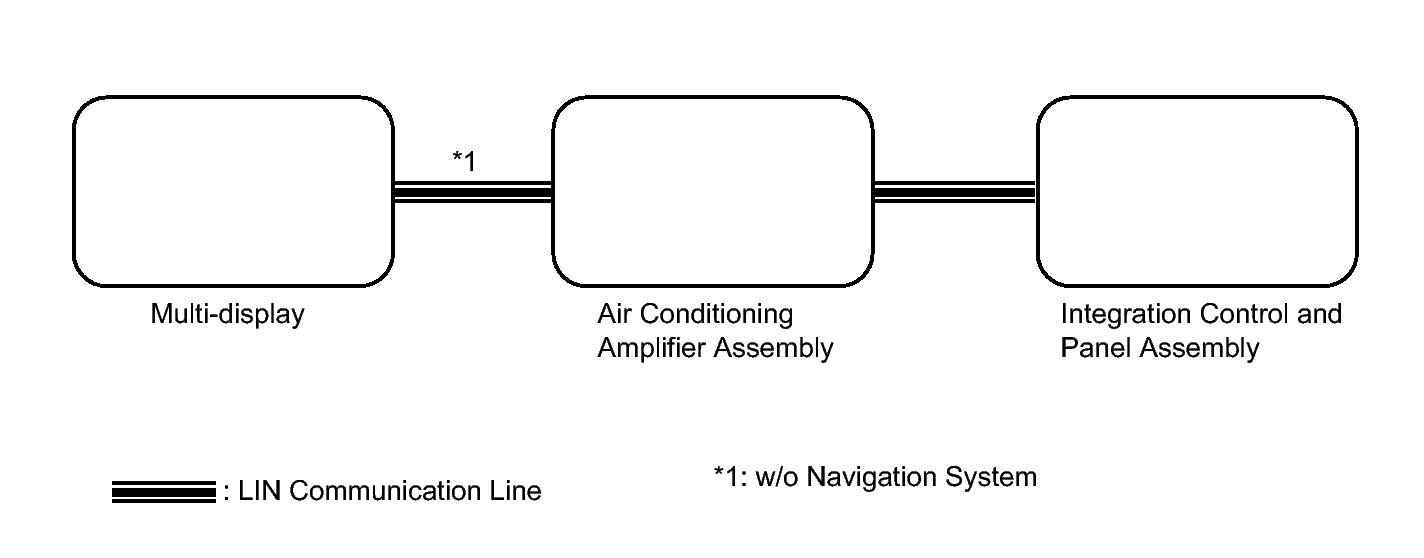

    Fig 3: LIN Communication System Diagram (Air Conditioning BUS Lines)
    GTY278082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. LIGHTING BUS LINES (w/ Automatic High Beam System)

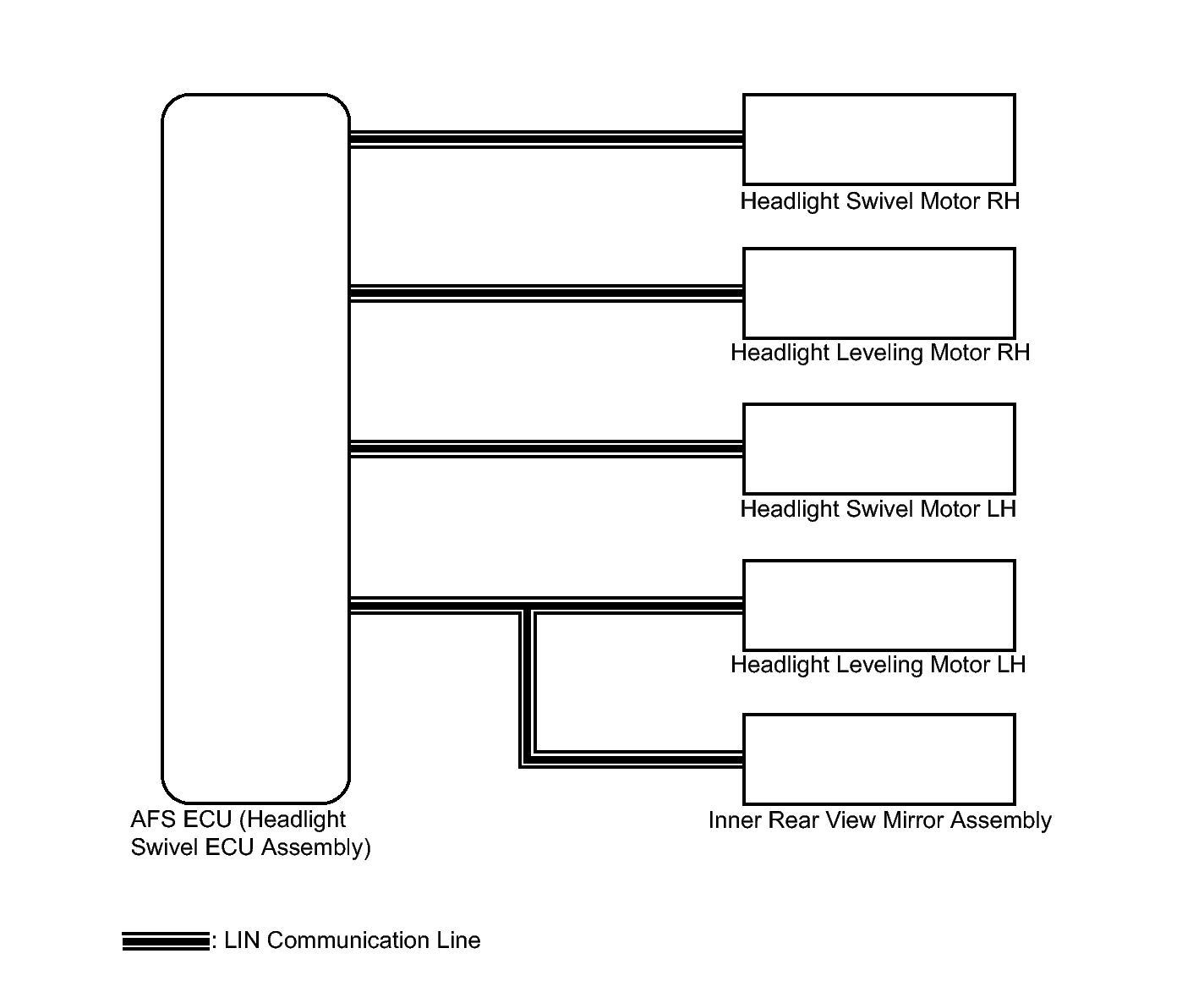

    Fig 4: LIN Communication System Diagram (Lightning BUS Lines (W/ Automatic High Beam System))
    GTY286646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
