Multi-media Interface ECU Power Source Circuit: Procedure

1. Disconnect the multi-media interface ECU connector.
2. Measure the voltage according to the value(s) in the table below.

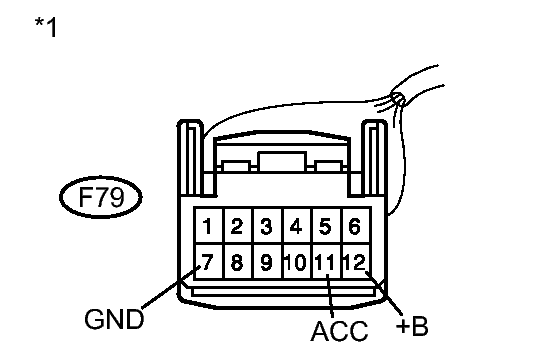

   Fig 1: Identifying F79 Multi-Media Interface ECU Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   F79-12 (+B) - F79-7 (GND)	Power switch off	11 to 14 V
   F79-11 (ACC) - F79-7 (GND)	Power switch on (ACC)	11 to 14 V

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Multi-media Interface ECU)

NG → See step   2

OK → See step   3

1. Disconnect the radio receiver assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F79-11 (ACC) - F82-11 (ACC)	Always	Below 1 Ω
   F79-12 (+B) - F82-12 (+B)	Always	Below 1 Ω
   F79-7 (GND) - F82-7 (GND)	Always	Below 1 Ω
   F79-11 (ACC) - Body ground	Always	10 kΩ or higher
   F79-12 (B+) - Body ground	Always	10 kΩ or higher
   F79-7 (GND) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   3
