Sound Signal Circuit between Multi-media Interface ECU and Stereo Jack Adapter: Wiring Diagram

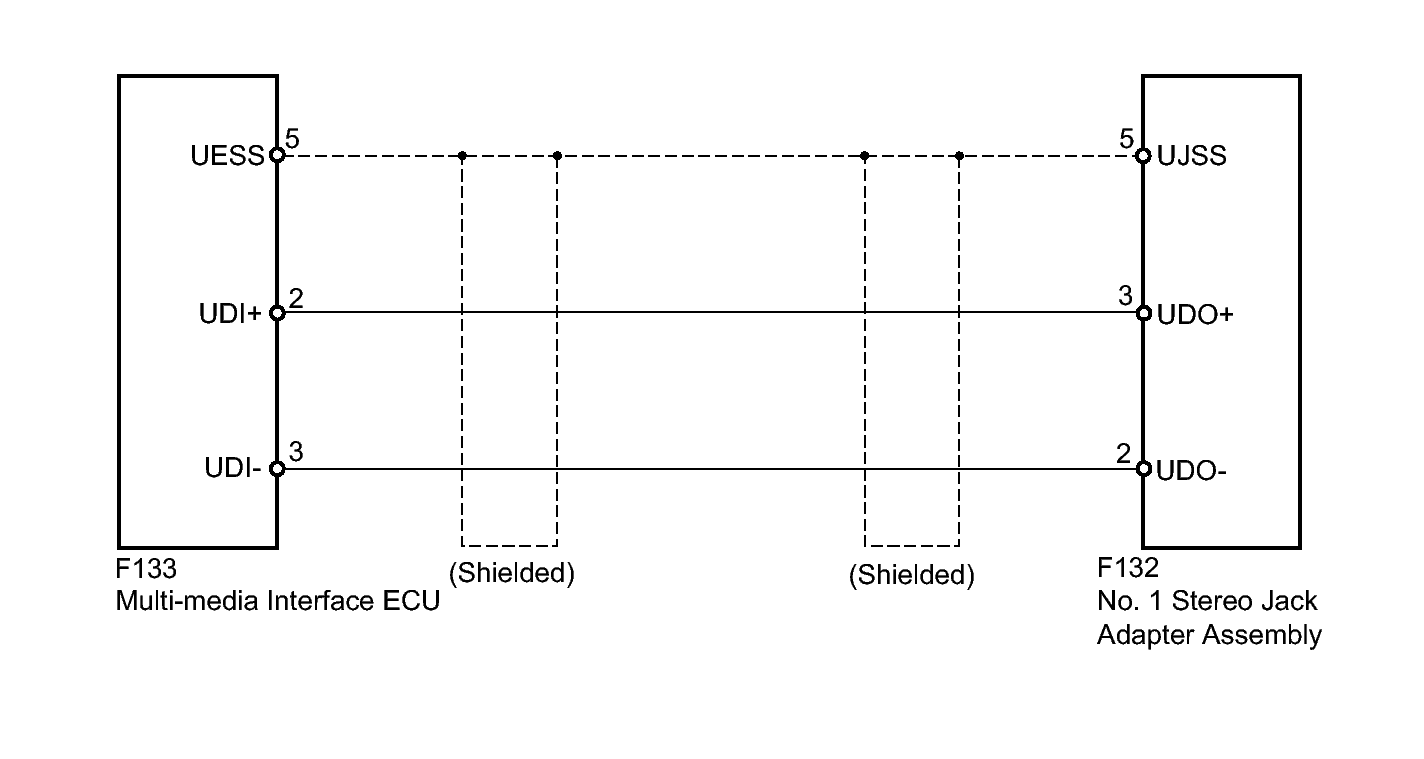

Fig 1: F133 Multi-Media Interface ECU - Wiring Diagram
GTY257529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
