Audio System (w/ LEXUS Navigation System), LEXUS ENFORM, LEXUS Navigation System, Parking Assist Rear View Monitor, (w/o Wide-View Front Monitor)

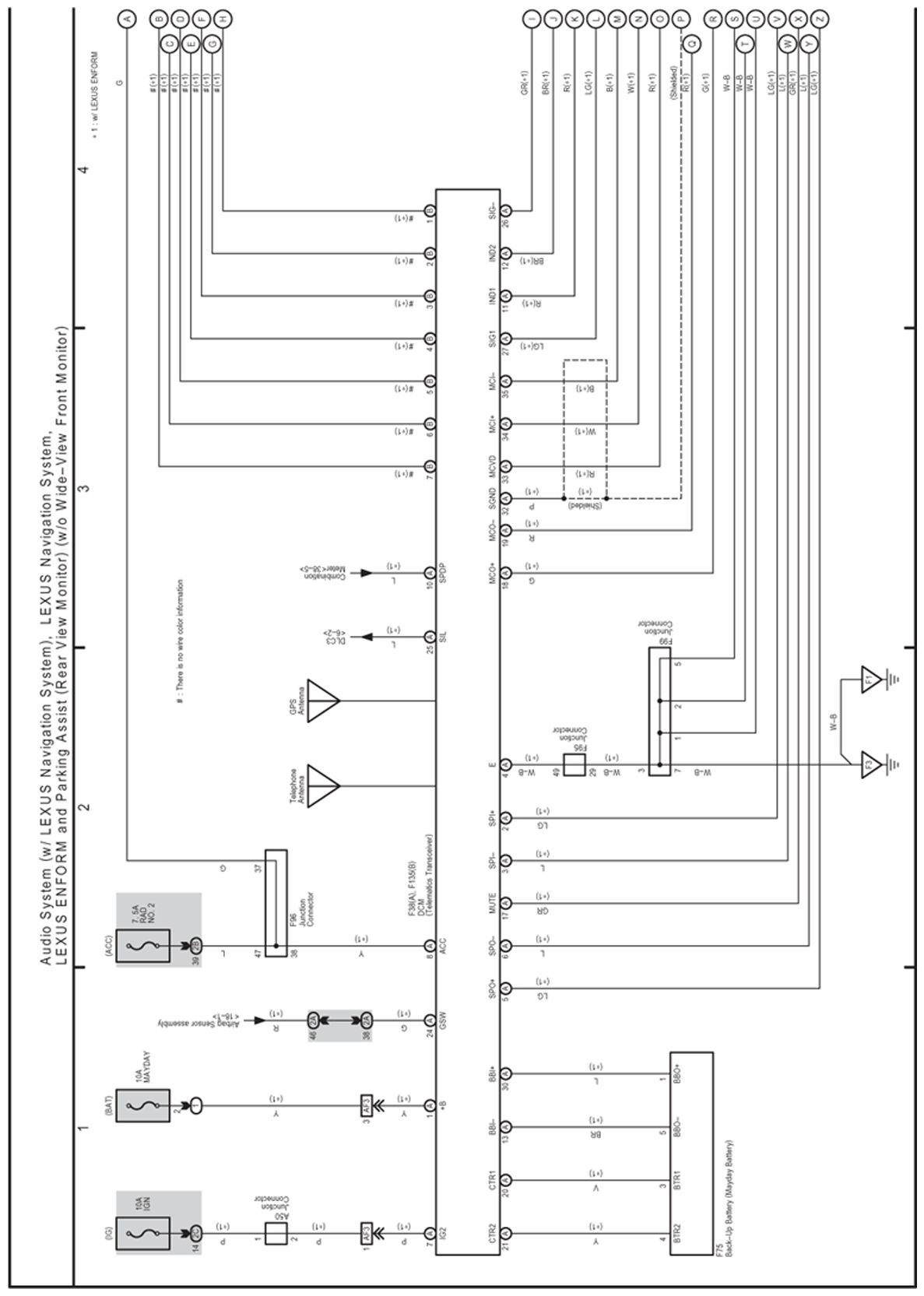

Fig 1: Audio System, Lexus Navigation System, Lexus Enform And Parking Assist (W/O Wide-View Front Monitor) Electrical Wiring Diagram (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

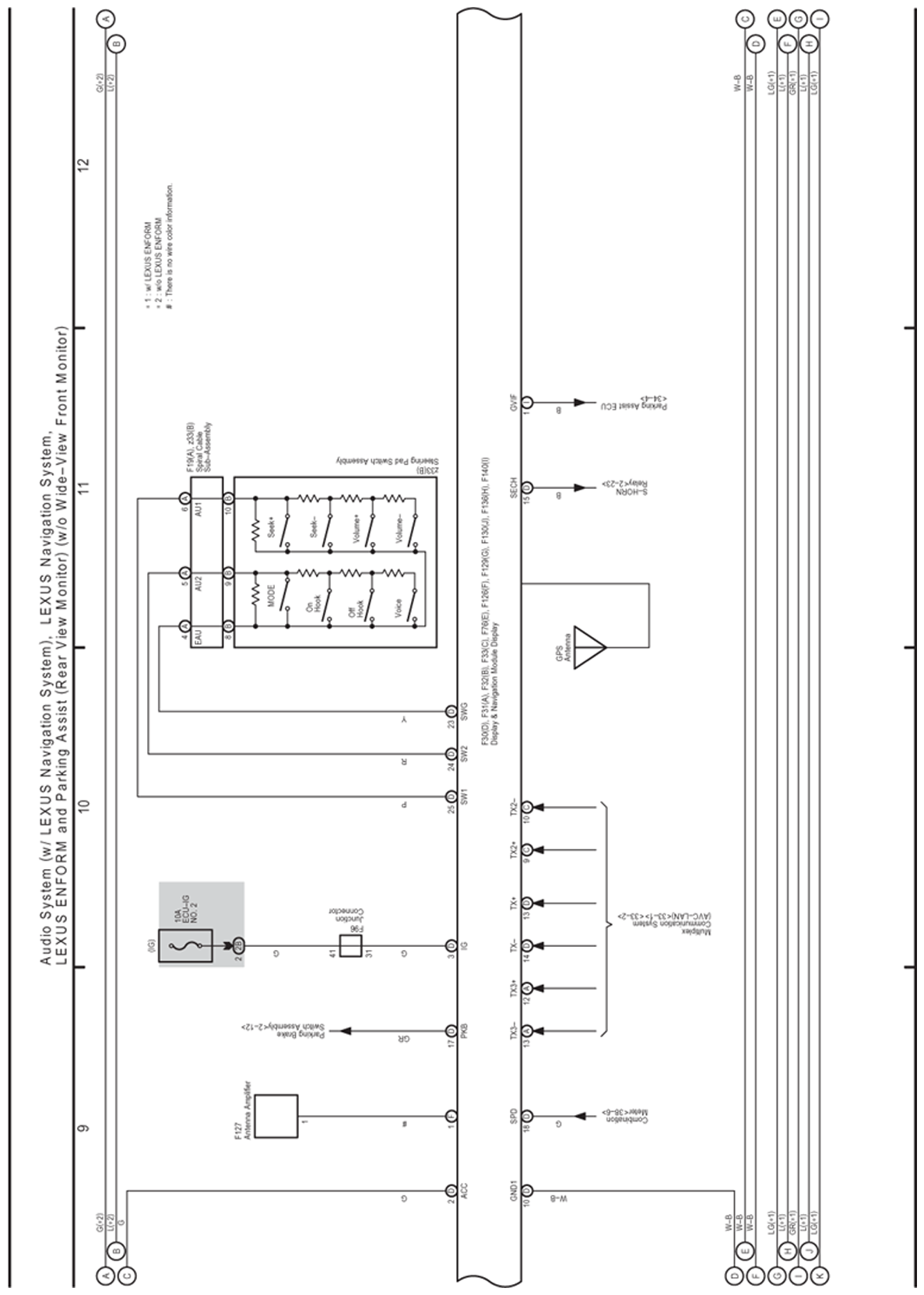

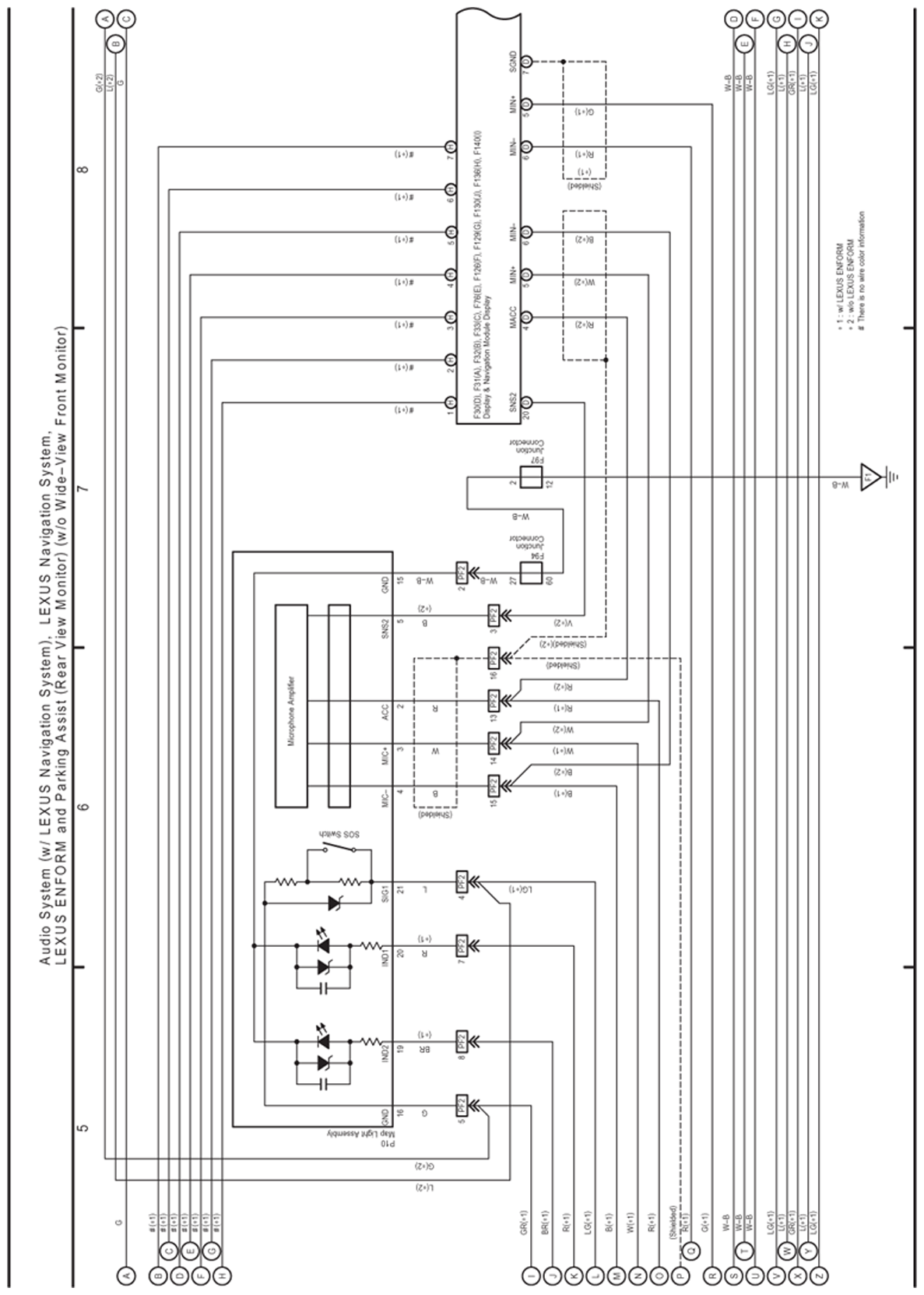

Fig 2: Audio System, Lexus Navigation System, Lexus Enform And Parking Assist (W/O Wide-View Front Monitor) Electrical Wiring Diagram (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

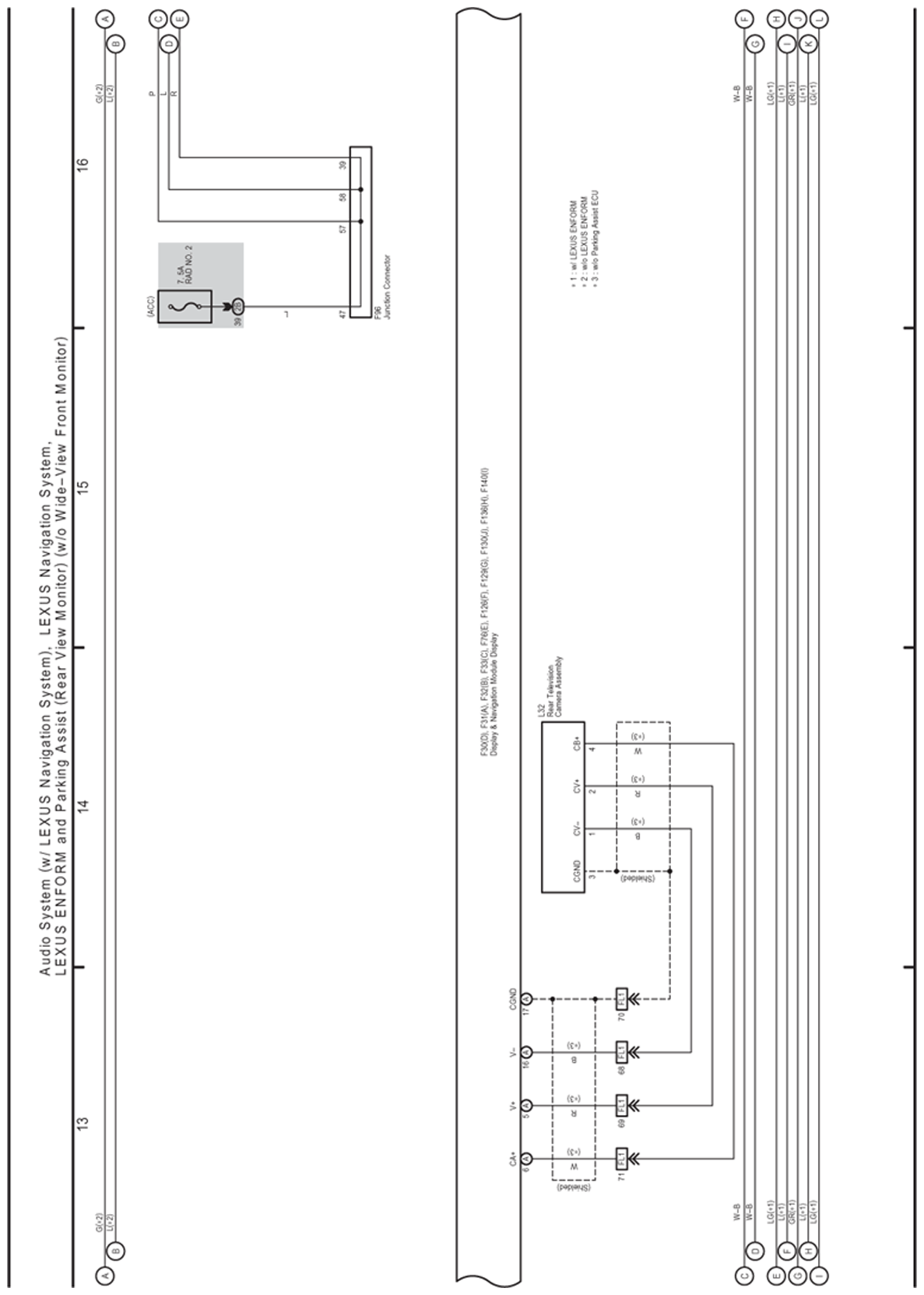

Fig 3: Audio System, Lexus Navigation System, Lexus Enform And Parking Assist (W/O Wide-View Front Monitor) Electrical Wiring Diagram (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

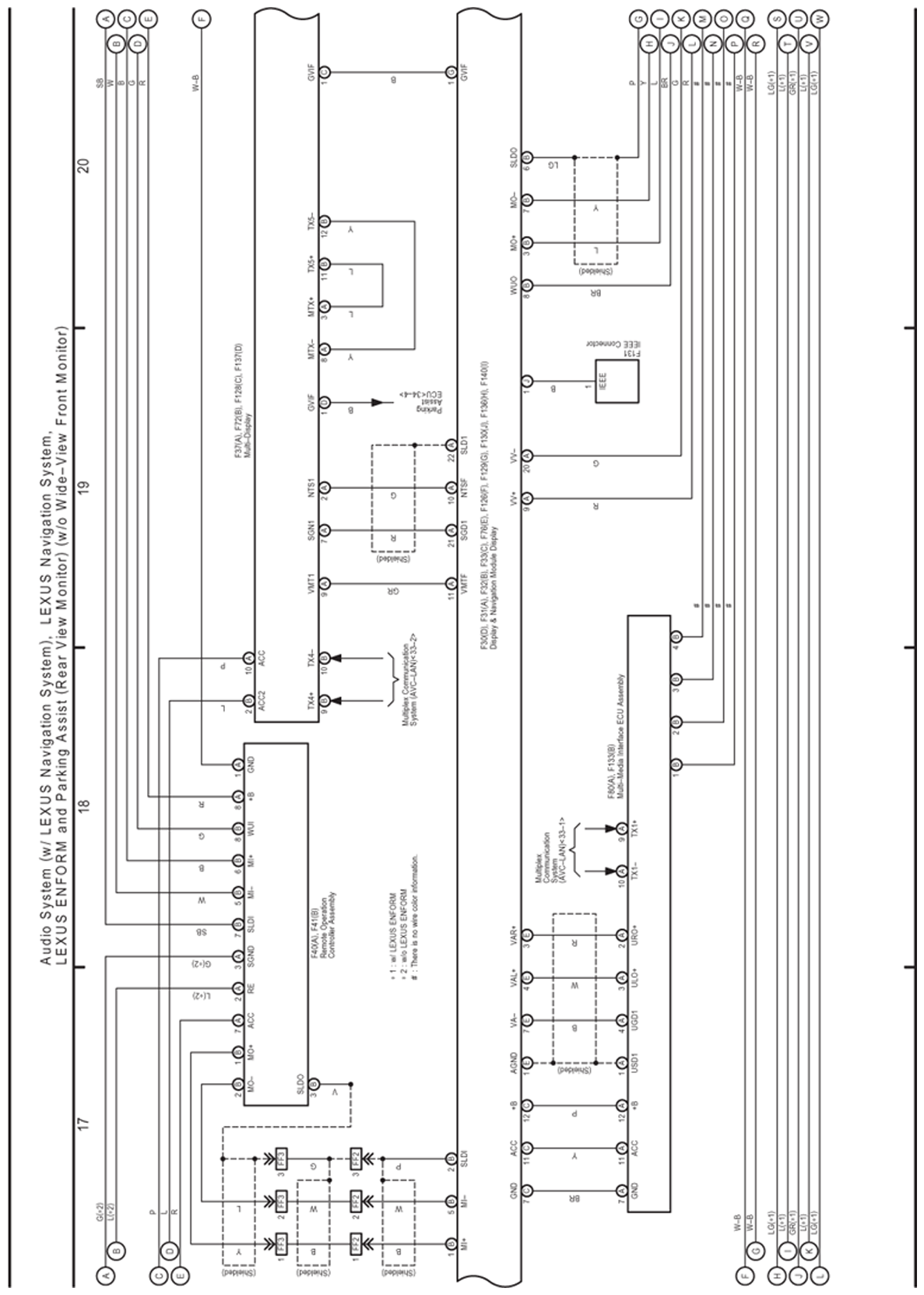

Fig 4: Audio System, Lexus Navigation System, Lexus Enform And Parking Assist (W/O Wide-View Front Monitor) Electrical Wiring Diagram (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

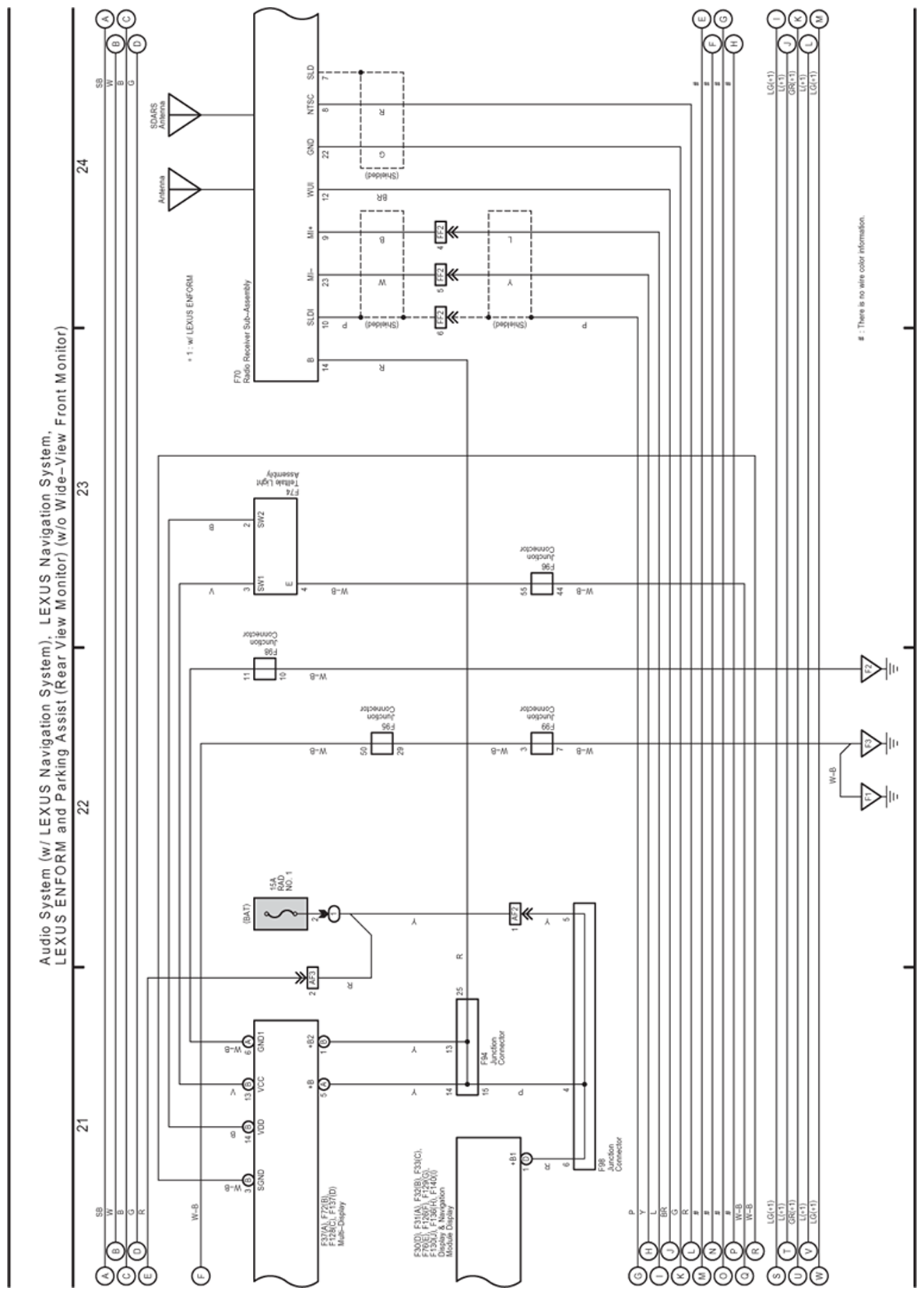

Fig 5: Audio System, Lexus Navigation System, Lexus Enform And Parking Assist (W/O Wide-View Front Monitor) Electrical Wiring Diagram (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

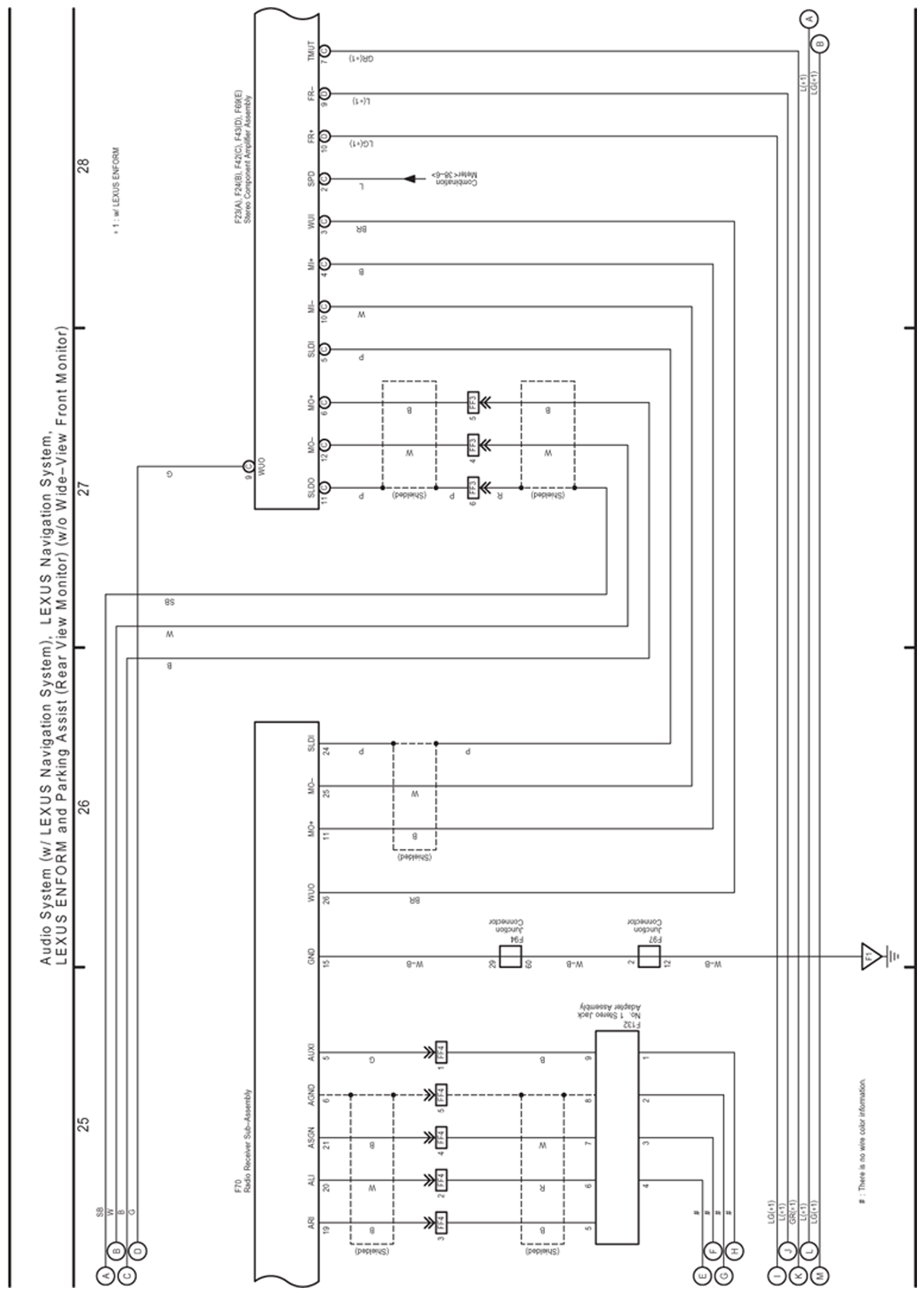

Fig 6: Audio System, Lexus Navigation System, Lexus Enform And Parking Assist (W/O Wide-View Front Monitor) Electrical Wiring Diagram (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Audio System, Lexus Navigation System, Lexus Enform And Parking Assist (W/O Wide-View Front Monitor) Electrical Wiring Diagram (7 Of 10)

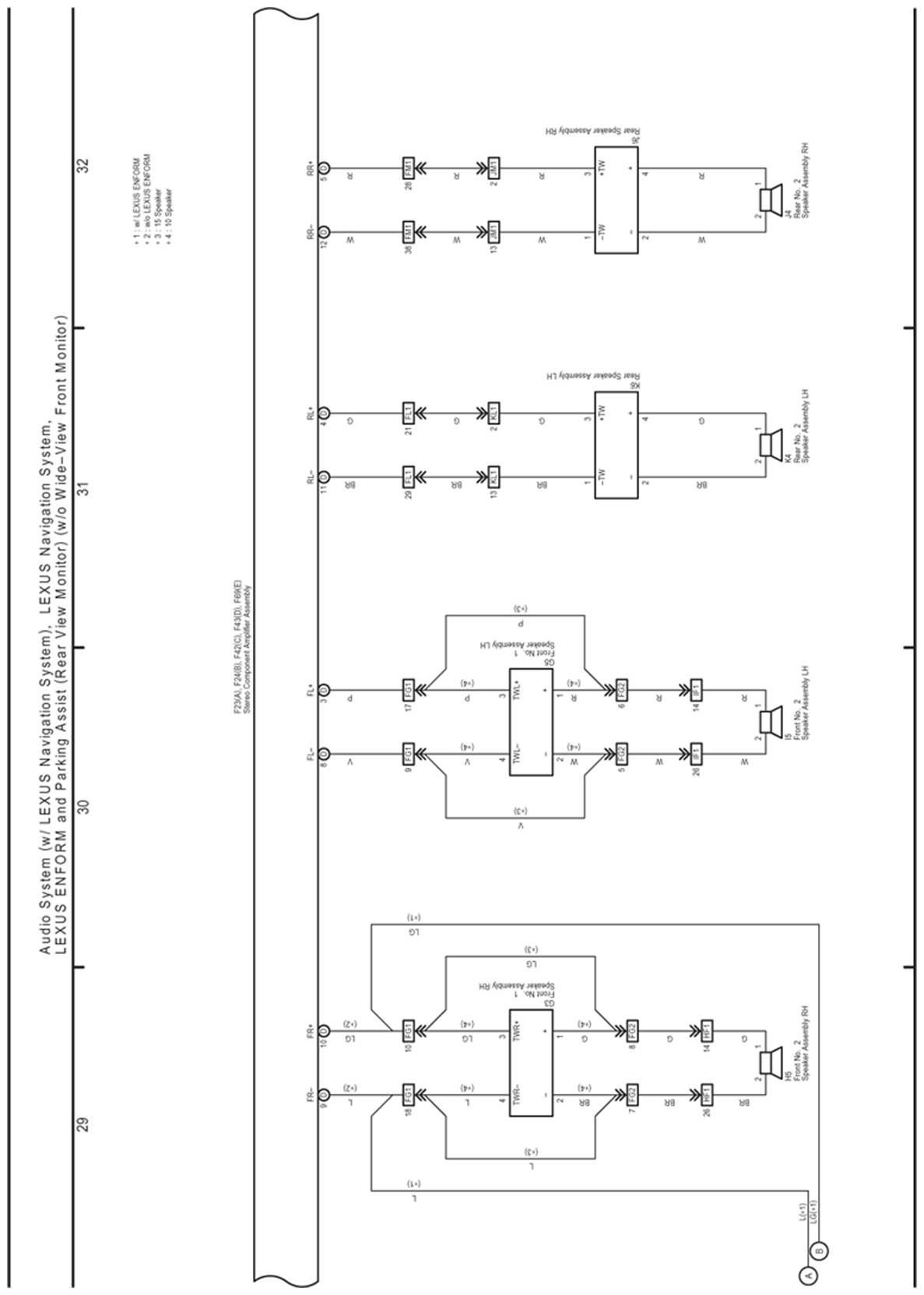

Fig 8: Audio System, Lexus Navigation System, Lexus Enform And Parking Assist (W/O Wide-View Front Monitor) Electrical Wiring Diagram (8 Of 10)

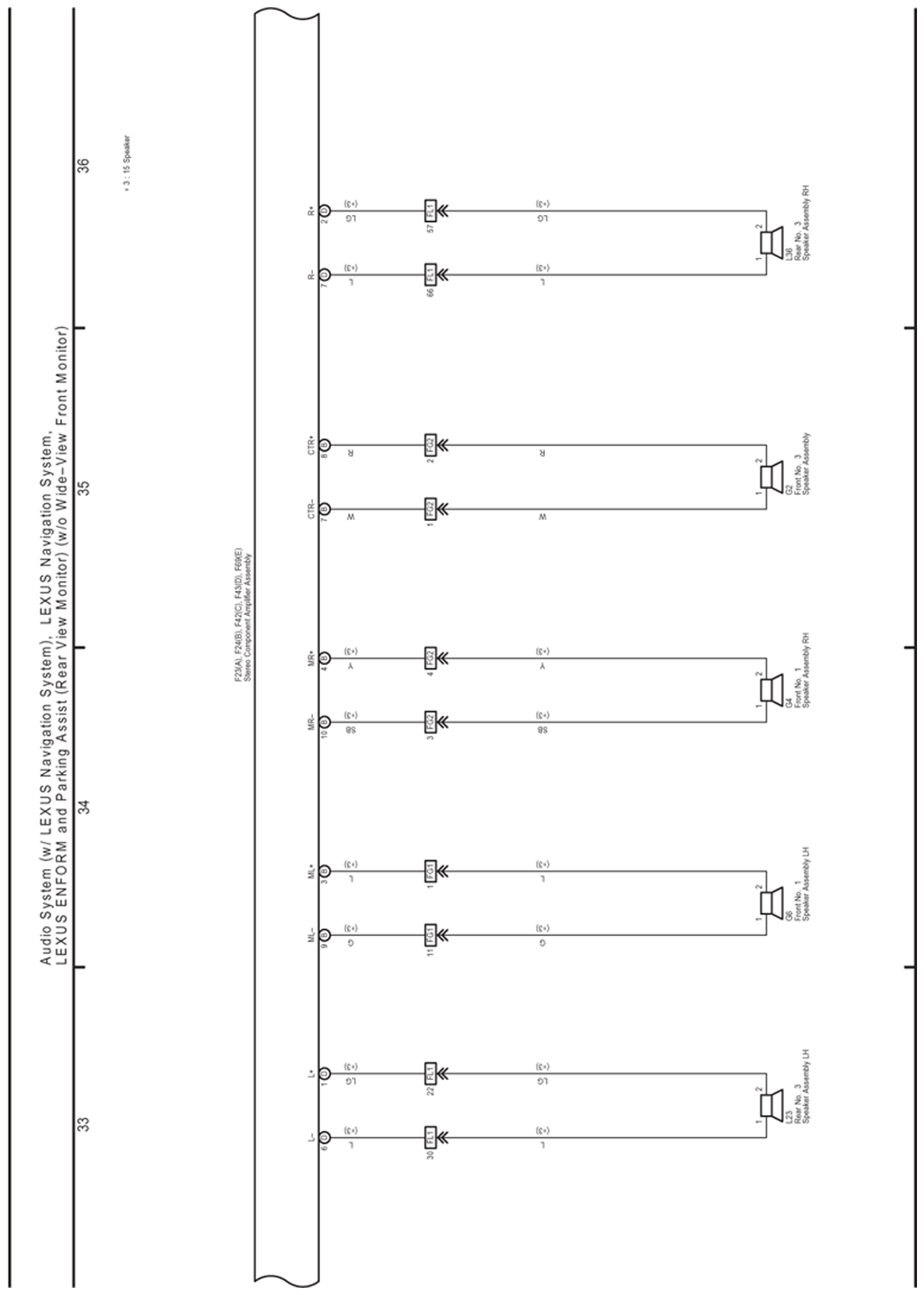

Fig 9: Audio System, Lexus Navigation System, Lexus Enform And Parking Assist (W/O Wide-View Front Monitor) Electrical Wiring Diagram (9 Of 10)

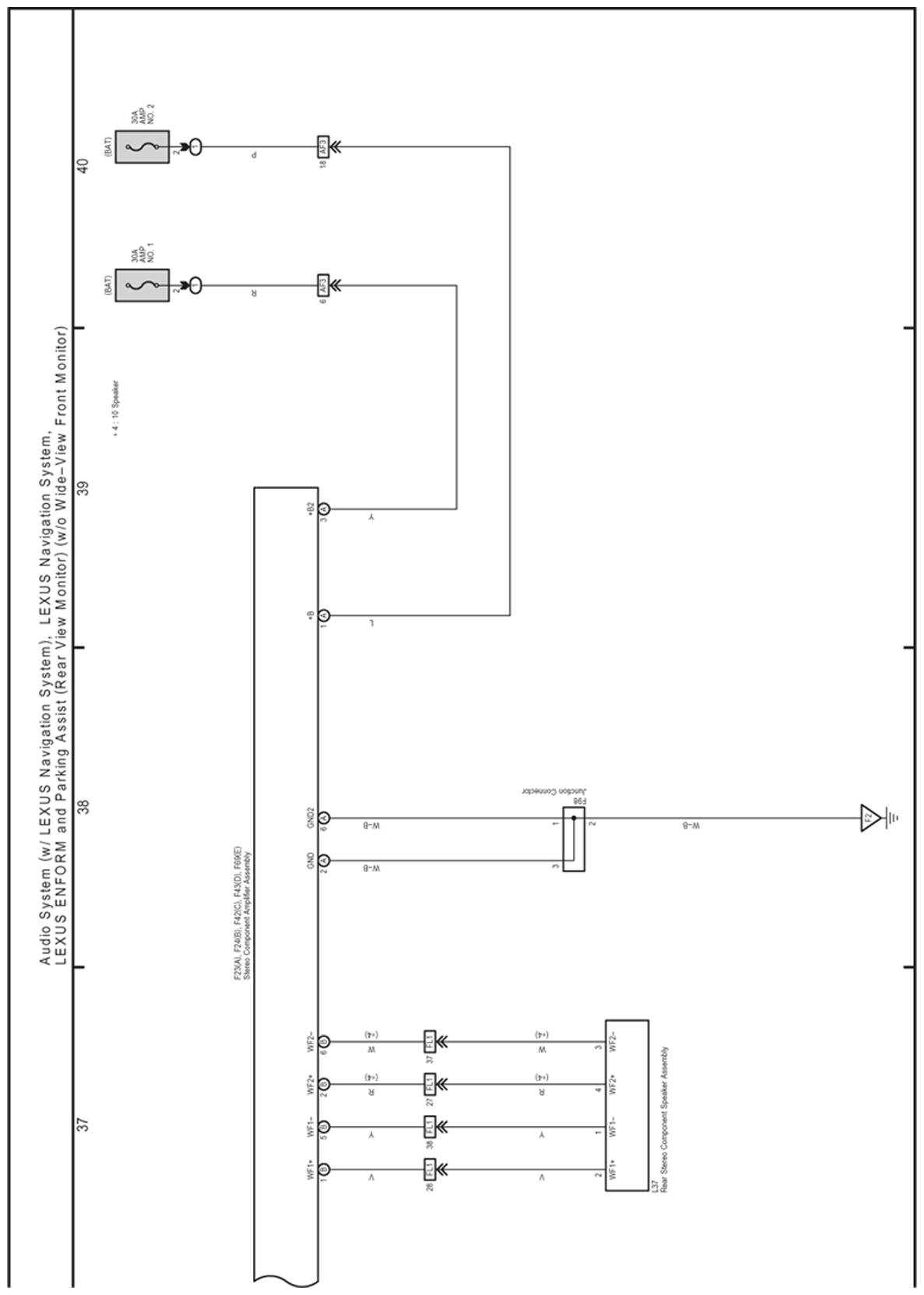

Fig 10: Audio System, Lexus Navigation System, Lexus Enform And Parking Assist (W/O Wide-View Front Monitor) Electrical Wiring Diagram (10 Of 10)
