Confirmation Driving Pattern
HINT:
Performing this confirmation driving pattern will activate the catalyst monitor. This is very useful for verifying the completion of a repair.
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Turn the Techstream on.
- Clear the DTCs. Refer to DTC CHECK / CLEAR .
- Turn the power switch off wait for at least 30 seconds.
- Turn the power switch on (IG) and turn the Techstream on.
- Enter the following menus: Powertrain / Engine and ECT / Monitor.
- Check that Catalyst Efficiency / Status2 is Incomplete.
- Put the engine in inspection mode. Refer to INSPECTION MODE PROCEDURE .

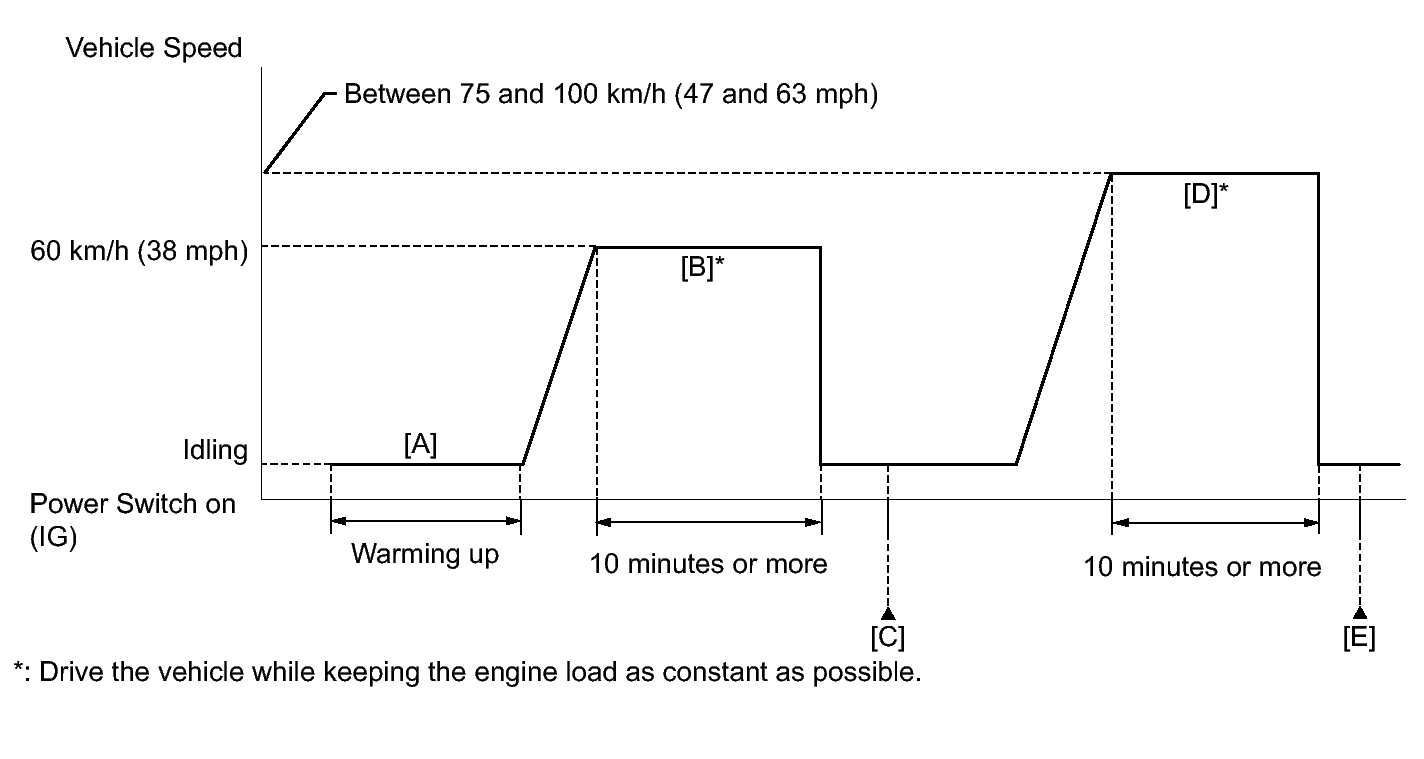

- Start the engine and warm it up (until the engine coolant temperature is 75°C (167°F) or higher) [A].
- Drive the vehicle at approximately 60 km/h (38 mph) for 10 minutes or more [B].WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
HINT:
- Drive the vehicle while keeping the engine load as constant as possible.
- The monitor item will change to Complete as the catalyst efficiency monitor operates [C].
- Enter the following menus: Powertrain / Engine and ECT / Pending.
- Check if any DTCs (pending DTCs) are stored.
HINT:
If the monitor does not change to Complete, and no pending DTCs are stored, perform the following procedure.
- Drive the vehicle at a speed between 75 and 100 km/h (47 and 63 mph) for 10 minutes or more [D].NOTE:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
HINT:
- Drive the vehicle while keeping the engine load as constant as possible.
- The monitor item will change to Complete as the catalyst efficiency monitor operates [E].
- Enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
- Check if any DTCs (pending DTCs) are set.
HINT:
If Catalyst does not change to Complete, and no pending DTCs are stored, extend the driving time.
